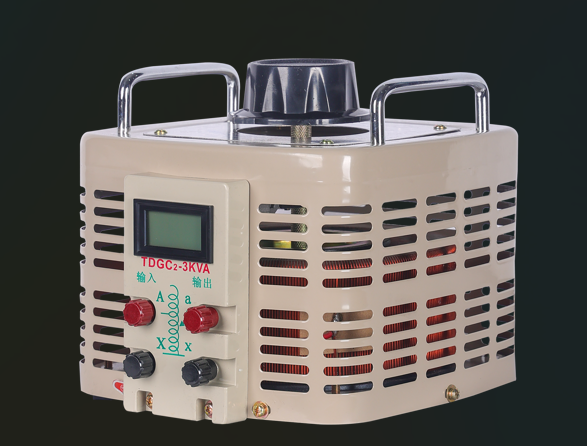

What Is a TDGC2 Contacttype Voltage Regulator and Why Is It Useful?

A TDGC2 contacttype voltage regulator is a singlephase manually adjustable transformer that gives you continuous, stepless voltage control from zero up to the rated output — typically 0–250V from a 220V input .

Unlike automatic stabilizers that keep voltage fixed, the TDGC2 puts you in control. Turn the handwheel, and the output voltage changes smoothly. No steps. No jumps. Just a steady, continuous adjustment from zero to maximum.

Why does that matter?

Because there are plenty of situations where you don't want the voltage "stabilized" — you want it adjustable. Testing a power supply at different input voltages. Running a motor at reduced speed. Dimming a lighting rig. Powering a heating element at partial output. Checking how equipment behaves under lowvoltage conditions.

For these jobs, an automatic stabilizer is useless. The TDGC2 is exactly what you need.

In short: when you need to dial in a specific voltage by hand, this is the tool.

How a TDGC2 Contacttype Voltage Regulator Works

The principle is straightforward — and has been proven over decades of use.

Step 1 – The core

A toroidal core made from coldrolled silicon steel forms the magnetic circuit. The ring shape gives high efficiency, low losses, and compact size.

Step 2 – The winding

Highgrade enameled copper wire is wound evenly around the entire toroidal core. The winding serves as both primary and secondary — this is a selfcoupled (autotransformer) design, not an isolated transformer .

Step 3 – The carbon brush

A carbon brush is pressed against the exposed, polished surface of the winding with spring tension. The brush is mounted on a moving arm connected to the frontpanel handwheel .

Step 4 – Adjustment

When you turn the handwheel, the brush slides along the winding surface . This changes the tap point — altering the effective turns ratio between input and output — and the output voltage changes continuously.

Step 5 – Smooth, stepless output

Because the brush can be positioned at any point along the winding, the output voltage changes smoothly. No stepped taps, no sudden jumps. You get exactly the voltage you need, anywhere from zero to the maximum rating .

The result: a simple, reliable tool that gives you precise manual voltage control.

Common Types and Ratings of TDGC2 Regulators

TDGC2 regulators are available in a range of capacities to suit different applications .

Threephase version:

The TSGC2 is the threephase equivalent — three separate regulator sections in one unit, suitable for balanced threephase loads .

Standard features:

Output waveform — pure sine wave, no distortion

Efficiency — high, typical for autotransformer designs

Frequency — 50/60Hz compatible

Insulation class — Class A

Insulation resistance — ≥5MΩ

Why TDGC2 Contacttype Regulators Still Matter

Because sometimes manual control is better than automatic.

In an age of microprocessors and digital control, a handcranked voltage regulator might seem outdated. But for many tasks, it's still the best tool.

1. Testing and validation

When you're testing a power supply, you need to check it at 180V, 200V, 220V, 240V, and 260V. An automatic stabilizer gives you one voltage. The TDGC2 gives you all of them.

2. Motor speed control

For small universal motors, a TDGC2 provides simple speed control by reducing voltage — cheaper than a VFD for basic applications.

3. Lighting dimming

For stage lighting, display lighting, or test lighting, the TDGC2 gives smooth, flickerfree dimming from zero to full brightness.

4. Heating control

Controlling resistive heating elements by voltage adjustment is straightforward and effective.

5. Laboratory power

Educational labs and research facilities need adjustable AC supply for experiments. The TDGC2 is a classroom standard.

6. Costeffective

Compared to electronic regulators, the TDGC2 is simpler, cheaper, and easier to repair.

7. Durable and reliable

No complex electronics. No software. Just a transformer, a brush, and a handwheel. It can run for decades with minimal attention.

Choosing the Right TDGC2 Regulator

Selecting a TDGC2 is straightforward — but a few common mistakes can cause trouble.

Step 1 — Determine your load

Add up the power of everything you plan to connect. Use VA (voltamps) , not watts, if possible. For resistive loads like heaters and lamps, VA ≈ watts. For motors, use the nameplate VA or multiply watts by 1.5.

Step 2 — Size the capacityChoose a regulator rated higher than your load. As a rule:

Example: A 1kW heater → 1kVA load → choose 2kVA regulator for safe margin.

Step 3 — Check voltage

Standard TDGC2 is 220V input, 0–250V output . If you need a different voltage (e.g., 110V input or 0–300V output), check custom options.

Step 4 — Consider threephase

If you need to control threephase equipment, choose the TSGC2 threephase version .

Step 5 — Installation

Benchmount — small units sit on a workbench.

Panelmount — some models are designed for installation in control panels.

Enclosure — open frame is typical; enclosed versions may be available for dusty environments.

Important Limitations

The TDGC2 is not an isolation transformer.

Because it uses an autotransformer design, the input and output share a winding. There is no electrical isolation between input and output . This means:

The output is not isolated from the mains

Touching output terminals can still be dangerous

A fault on the primary side can affect the secondary

Always use the TDGC2 with appropriate safety precautions — and consider an isolation transformer if your application requires galvanic isolation.

The TDGC2 is not an automatic stabilizer.

It does not correct for input voltage variations. If the input voltage changes, the output voltage changes accordingly. You must adjust it manually .

Carbon brush wear is normal.

The brush is a consumable part. Over time, it wears down and needs replacement. This is normal maintenance, not a design flaw.

Final Thoughts

The TDGC2 contacttype voltage regulator is a simple, honest piece of equipment. It doesn't have a touchscreen. It doesn't connect to WiFi. It doesn't have a digital display.

But it does one thing very well: it gives you smooth, continuous manual voltage control.

For testing, maintenance, teaching, and basic control applications, it's still the most straightforward solution. It's durable, repairable, and costeffective — and it works when you need it, with no software to crash and no menu to navigate.Sometimes the simplest tool is still the best tool.
