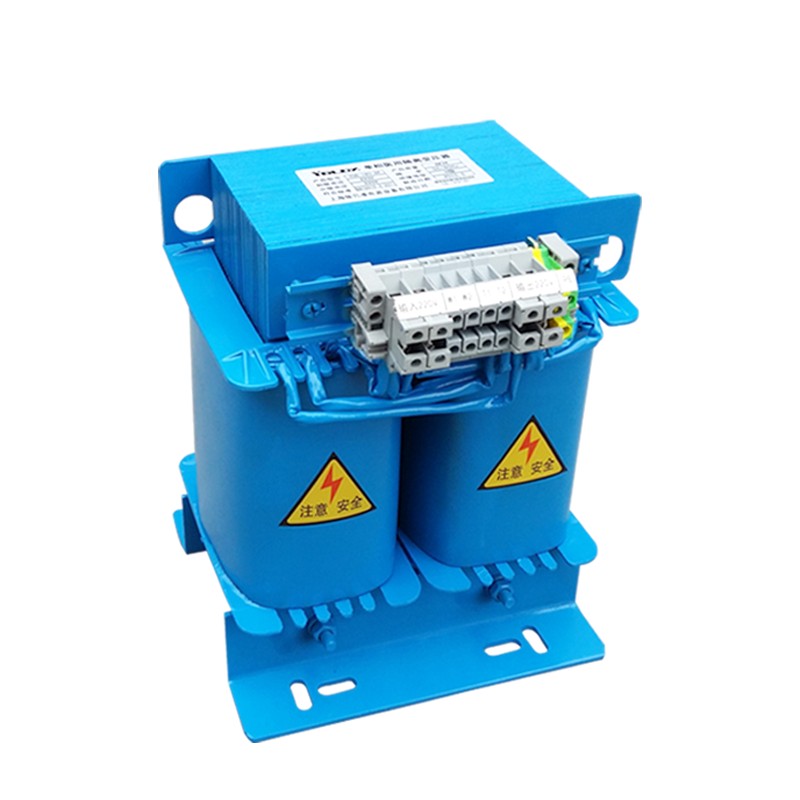

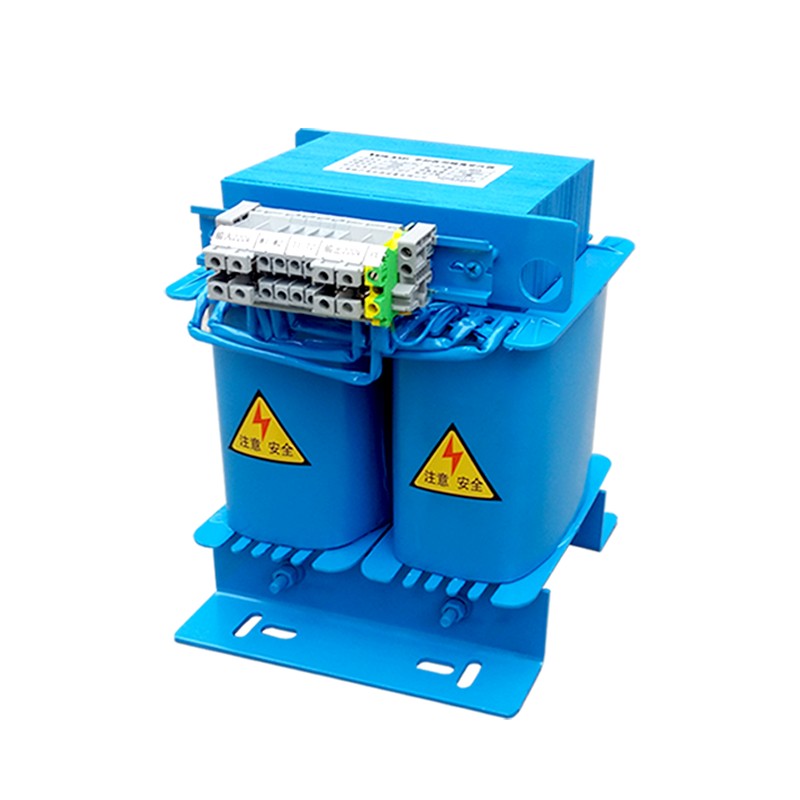

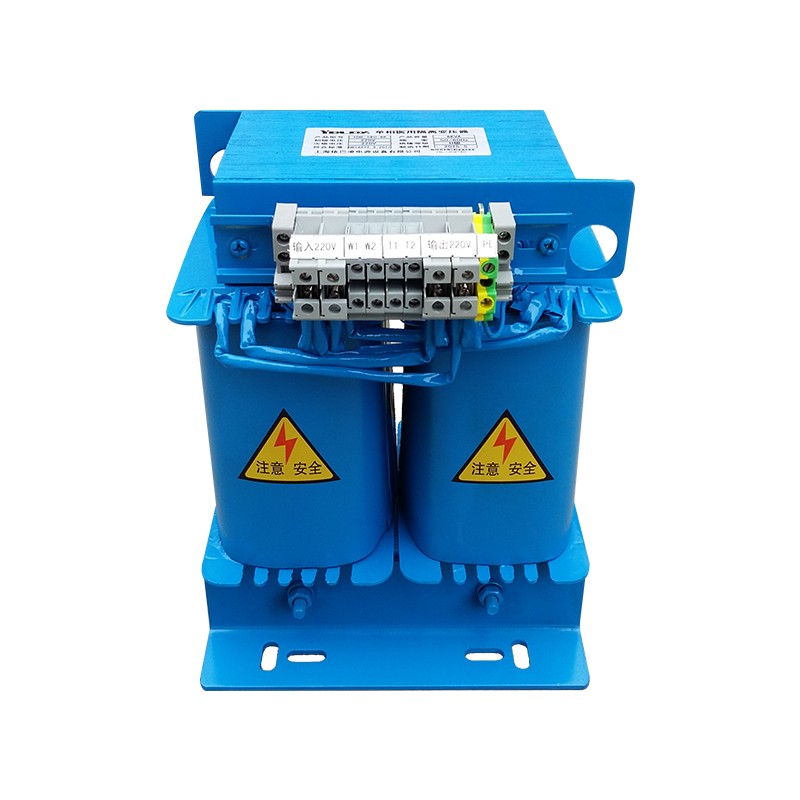

IT Medical Transformer

Zhejiang Yibaling Power Equipment Co., Ltd. is a China manufacturer of IT medical transformers. This transformer is a newly developed product. It has high quality and competitive pricing, and these two points attracted numerous customers. We look forward to partnering with you.

Send Inquiry

Product Description

IT Medical transformers are specifically designed for healthcare environments, primarily to provide electrical isolation for enhanced safety. Simply put, through its internal coil design, they completely transform incoming mains power before outputting it, ensuring the electricity used by medical equipment is entirely separated from the wall outlet. This way, even if leakage occurs in the equipment itself or the wiring, dangerous currents cannot form a circuit through the patient's body, thereby minimizing the risk of electric shock.

Product Information

Name	IT medical transformer	Brand	Yibaling
Input voltage	220V	Output Voltage	220V
Voltage Accuracy	±1°	Frequency	50-60Hz
Voltage Fluctuation Rate	≤1.5	Waveform distortion	No additional waveform distortion
Facial Features	single-phase	Cooling method	Air-cooled

Core Advantages

Compared to ordinary medical isolation transformers on the market, our IT medical isolation transformers offer a fundamental advantage: they represent a complete safety power supply solution specifically engineered for hospitals.

We design and manufacture strictly according to the most stringent international medical electrical standards. Inside our IT medical transformers, we have specifically designed a dual-layer shielding structure and meticulously controlled the capacitance values between the circuits and ground.

The direct benefits are clear: leakage currents that could potentially flow to patients are kept at an extremely minimal level, far stricter than ordinary standards. Every unit undergoes exceptionally rigorous fault simulation testing, and all materials meet medical-grade biosafety certification standards.

Ultimately, our transformers are more than just power supply devices. Through the integrated approach of real-time monitoring, dual protection, and proactive alerts, it delivers reliable compliance assurance for hospital administrators and provides clear management data for equipment engineers.

IT medical transformer singular purpose is to create a power environment that far exceeds ordinary standards—one that offers genuine peace of mind for every patient and safeguards invaluable precision equipment.

IT medical transformer vs. ordinary isolation transformer

The IT medical transformer differs fundamentally from ordinary industrial/commercial transformers in terms of design standards, core performance, and safety concepts. It is not a medical version of a regular transformer; instead, it is a specialized power supply device specifically designed for the safety of lives in medical facilities.

Comparison Dimension	IT Medical Transformer	Ordinary Isolation Transformer (for industrial/commercial purposes)
Compliance with Standards	Medical-specific standards: such as IEC 60601-1, GB 9706.1, which have strict regulations regarding "medical electrical systems".	General standards: such as IEC 60076, GB 1094.1, etc.
Insulation and Isolation Requirements	"Double insulation" or "enhanced insulation". The insulation between primary and secondary must be able to withstand an AC withstand test of up to 4000V or more (typically 4kV+), and an integrated insulation monitoring device (IMD) must be set up.	Standard insulation. The withstand test value is usually a conventional value (such as 3kV). There is no insulation online monitoring requirement.
Leakage Current Limiting	Leakage current to ground is extremely low, with strict allowable values (typically <0.1mA) and continuous monitoring requirements. Leakage current limit is much looser (typically mA level), with no mandatory online monitoring.	Risk Control Differences: In medical environments, even a small leakage current flowing through the patient (especially during cardiac intervention) can lead to a fatal risk, so it requires nearly "zero leakage".
Winding Temperature Rise and Overload	Allow for long-term 100% continuous full-load operation, with a more conservative temperature rise design (such as ≤60K), and higher insulation material grades (commonly H class and above).	Designed according to general load cycles, allowing for short-term overload, but the long-term full-load temperature rise is higher.
Structural Design and Materials	Internal triple shielding (static shielding and magnetic shielding) is often used to minimize interference to the utmost. Materials must consider biological compatibility (such as lead-free and halogen-free), and have the highest flame retardant grade (V0 level).	There may only be single-layer shielding or no shielding at all. The materials are mainly to meet basic electrical and fire protection requirements.
Core functions and system roles	Forms the core of the "medical IT system", together with insulation monitoring devices (IMD), external alarm display devices, etc., it forms an uninterrupted online monitoring network to achieve "fault location, alarm but no trip".	As an independent power conversion or isolation device, during a fault, it is usually directly tripped by the circuit breaker for protection.
