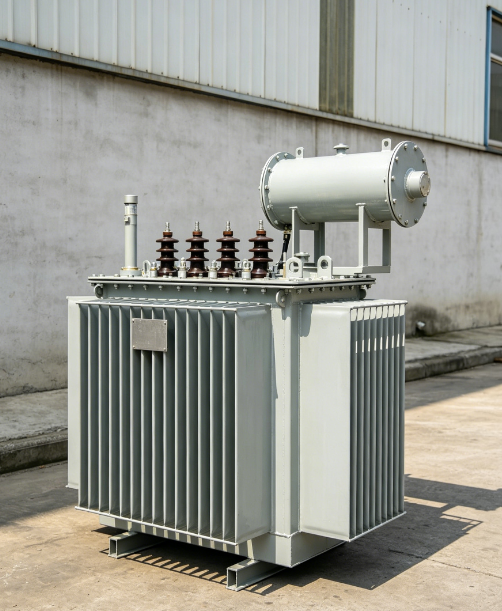

What is an S13 Oil-Immersed Distribution Transformer?

An S13 transformer is a three-phase oil-immersed distribution transformer, commonly used in 10kV/0.4kV distribution systems. Its core function is simple: step down high-voltage electricity to low-voltage electricity for use in factories, residential communities, and shopping malls.

However, it differs from earlier S11 and S9 models—it is more energy-efficient.

This "energy efficiency" does not rely on an "eco-mode" but on physical design upgrades:

The iron core uses higher-grade cold-rolled oriented silicon steel sheets.

Adopts a fully mitered lap stacking process for a smoother magnetic circuit.

Its no-load loss is 20-30% lower on average than that of S11 oil-immersed distribution transformers.

In short, when energized 24 hours a day, the S13 consumes far less power on its own.

Why Is the S13 Oil-Immersed Distribution Transformer a "Profit from Savings"?

Transformer losses fall into two main categories:

No-load loss (core loss): Occurs as long as the transformer is energized, regardless of load, as the iron core consumes power. This is a "fixed cost."

Load loss (copper loss): Generated by heat when current passes through the windings under load. Losses increase with heavier loads.

The S13 optimizes both types of losses.

Example

For a 500kVA transformer:

S11 oil-immersed distribution transformer: ~960W no-load loss

S13 oil-immersed distribution transformer: ~680W no-load loss

Difference: 280W

This may seem negligible, but let’s calculate:280W × 24 hours × 365 days = Approximately 2,452.8 kWh per year

At an industrial electricity price of 0.8 yuan/kWh, this saves nearly 1,962.24 yuan annually. With a service life of 20-30 years for a transformer, the savings add up significantly.

It’s not just "small savings"—it’s enough to fund a small transformer over its lifespan.

Where Is the S13 Oil-Immersed Distribution Transformer Suitable for Use?

Technical Features: No Fancy Tech, Just Solid Performance

The S13 oilimmersed distribution transformer isn't some "cuttingedge" product. Its advantages come from better materials and solid workmanship:

Iron Core – Highpermeability coldrolled oriented silicon steel, stacked with fully mitered lap joints. Low magnetic resistance, low eddy current losses.

Windings – Standard pure copper (or highpurity aluminum if requested). Layer insulation is done carefully — no shortcuts.

Insulating Oil – Good quality transformer oil. Before it leaves the factory, we test it for dielectric strength, moisture content, and dielectric loss.

Tank – Corrugated or finned radiators, fully sealed and welded. Leakresistant and corrosionresistant.

Optional fully sealed structure – Seals the oil off from the air. Slows down aging, cuts down maintenance.

This isn't a "good enough" product. It's designed to run continuously for years.

Key things to consider when selecting one

Capacity (kVA) – Add up all your load power, then leave a 3050% safety margin. Don't cut it too tight.

Copper vs. aluminum – Copper costs more. Aluminum costs less. If your equipment runs day and night, go with copper.

Fully Sealed vs. Conservator Tank: Fully sealed for maintenance-free outdoor, unattended use; conservator tanks allow oil level observation for regular inspections.

Energy Efficiency Grade: The S13 meets current mainstream Class 1 energy efficiency per new national standards. For even lower losses, consider S20 or amorphous alloy transformers (higher cost).

Installation Environment

Oilimmersed transformers work fine outdoors. Just make sure you take care of three things: waterproofing, antitheft, and ventilation. Don't just set them out and forget about them.

A RealWorld Example

A textile mill had two aging S9800kVA transformers that had been running for over ten years. Production output hadn't changed much, but their electricity bill kept climbing every year.

They ran the numbers: switching to S13800kVA transformers would cut noload loss from roughly 1,800W (S9) down to about 800W (S13). That's nearly 8,760 kWh saved per year — just from the transformers sitting there idle.

The factory director put it simply:"After installing the new transformers, the electricity meters spin slower. The numbers speak for themselves."
