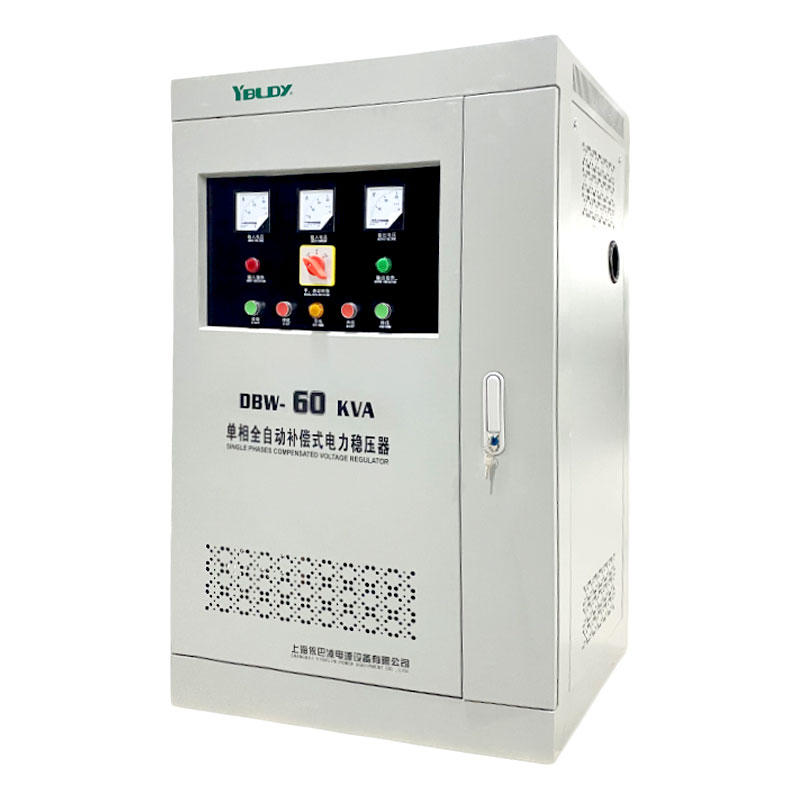

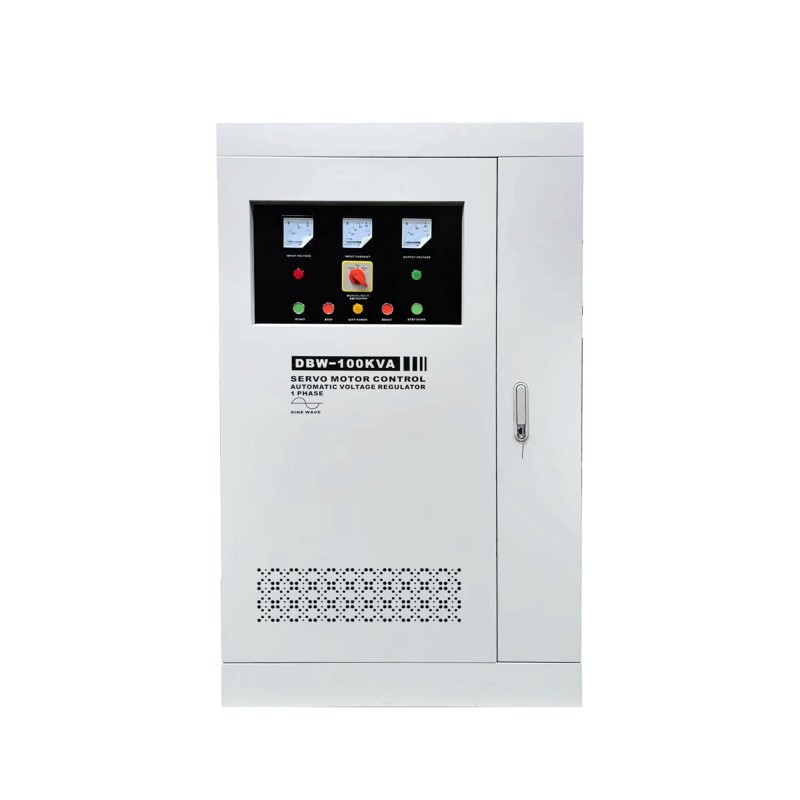

DBW Intelligent Servo Voltage Stabilizer

The DBW Intelligent Servo Voltage Stabilizer is a new type of intelligent voltage stabilizer newly developed by our Zhejiang Yibaling Power Equipment Co., Ltd. Based on the proven DBW series, it has been iteratively upgraded. While maintaining its reliable servo voltage regulation structure and compensatory core design, it has completely revolutionized the control core.

Send Inquiry

Product Description

Yibaling is a professional manufacturer and supplier, our engineers have introduced a full-color touch screen human-machine interface and standardized industrial communication interfaces (such as Modbus RTU/TCP), making our DBW Intelligent Servo Voltage Stabilizer status clear at a glance.

The key voltage regulation part is composed of a high magnetic permeability and low loss cold-rolled silicon steel sheet toroidal core and high-purity electrolytic copper enameled wire windings, forming an efficient and energy-saving magnetic-electric conversion main body.

It is particularly suitable for advanced manufacturing, data centers, and modern production lines that have higher requirements for power quality and intelligent management.

Product Materials

The material quality directly determines the equipment's regulation accuracy, response speed, and long-term operational reliability.

The core voltage regulation action relies on carbon brushes made of special metal-graphite composite materials, which have excellent electrical conductivity, self-lubricating properties and wear resistance.

Under the drive of a precision servo motor system (containing high-performance permanent magnets and wear-resistant transmission mechanisms), smooth and precise movement and stepless voltage regulation are achieved on the toroidal windings.

Intelligent control is accomplished by industrial-grade microprocessors (MCUs) and high-precision voltage/current transformers, achieving real-time monitoring and rapid response within milliseconds.

The overall structure is protected by a high-quality cold-rolled steel plate chassis, and the internal high-current channels use low-impedance tin-plated copper bars, and integrate components such as metal oxide varistors (MOV) to form a surge protection line.

Therefore, the DBW Intelligent Servo Voltage Stabilizer is a systematic engineering integration of high-grade silicon steel, high-conductivity copper materials, special composite materials, precision mechanical and electrical components, and semiconductor chips.

Product Specification

Name	DBW Intelligent Servo Voltage Stabilizer	Brand	Yibaling
Input voltage	AC176~264V	Output voltage	AC220V
Frequency	50~60Hz	Bypass	Manual bypass
Service Efficiency	More than 97%	Wave form distortion	No additional waveform distortion

Product Information

Product name	Model name	Capacity(KVA)	Input voltage、current		Output voltage、 current		Appearance size(WLH) mm	Weight(Kg)
Product name	Model name	Capacity(KVA)	V	A	V	A	Appearance size(WLH) mm	Weight(Kg)
DBW Intelligent Servo Voltage Stabilizer	DBW/Z-30	30	AC176V~264V	136	AC220V	136	6008801020	180
	DBW/Z-50	50		227		227		200
	DBW/Z-63	63		286		286		215
	DBW/Z-80	80		364		364	6209501080	245
	DBW/Z-100	100		454		454		260
	DBW/Z-125	125		568		568		290
	DBW/Z-160	160		727		727	65010501180	390
	DBW/Z-200	200		909		909	65010501180	420

FAQ

Q: The DBW intelligent servo voltage regulator adopts the voltage regulation structure of the previous DBW servo voltage regulator. What are the advantages of this structure? What improvements have been made after the upgrade?

A: Our Yibaling's DBW intelligent servo voltage regulator adopts the core structure of the servo motor + carbon brush + compensatory auto-transformer mechanical voltage regulation system. The classic advantages of the DBW intelligent servo voltage regulator are:

Linear continuous regulation: The output voltage is smooth without steps and does not generate harmonic interference.

The DBW intelligent servo voltage regulator has strong shock resistance. It is a pure electromagnetic power component and can withstand instantaneous impacts several times the rated current (such as motor startup).

High reliability and long service life.

On the basis of retaining all the above advantages, it has upgraded the actuator for precision and durability:

The DBW intelligent servo voltage regulator uses a servo motor with higher precision and ball screw transmission to ensure smoother movement of the carbon brush and more accurate positioning.

At the same time, it optimizes the special alloy carbon brush material to further reduce wear and extend the maintenance cycle.

Moreover, the overall mechanical structure has been strengthened in vibration and noise control, making the operation quieter and more stable.
