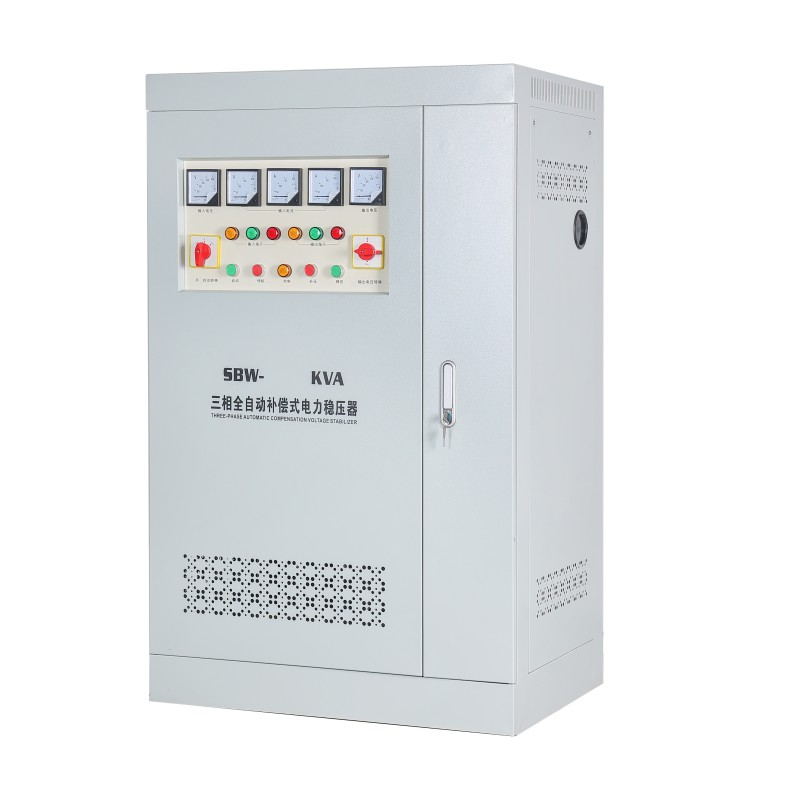

SBW Intelligent Compensation Voltage Stabilizer

The SBW intelligent compensation voltage stabilizer produced by Yibaling Factory is a power correction device. The core technical framework is based on a reliable execution closed loop: As a reliable manufacturer, we have adopted personalized industrial design and high-definition LCD displays for the product, presenting complex electrical parameters (such as input/output voltage, current, power, harmonic content, working mode) and equipment status (such as brush position, load rate, alarm information) in an intuitive and visual manner.

Combined with multi-color status indicator lights, the operation status is clear at a glance, greatly simplifying daily monitoring and initial fault diagnosis.
At the same time, we have also built a comprehensive protection mechanism from electrical to mechanical within the system: In addition to standard overvoltage, undervoltage, overcurrent, short circuit, and phase loss protection, it also integrates a detection system that can continuously monitor and warn about the internal key components of the SBW voltage stabilizer (such as servo mechanism, brush wear, temperature rise), achieving an upgrade from post-fault protection to pre-fault prevention.

What is an SBW Intelligent Compensation Voltage Stabilizer?

The Yibaling SBW intelligent compensation voltage stabilizer is a highly designed intelligent power supply guarantee core specifically developed to address the complex industrial grid environment.
It uses a high-speed sensing network to continuously monitor the minute fluctuations and three-phase imbalance of each phase voltage in the power grid, and drives a high-precision servo system to perform rapid and smooth stepless correction of the voltage amplitude.

Core Advantage

The SBW intelligent compensatory voltage stabilizer's core advantage lies in its three-phase independent adjustment function:
The system independently samples, calculates, and compensates the voltages of phases A, B, and C, completely solving the traditional problem of three-phase voltage imbalance caused by the input of large single-phase loads or the defects of the power grid itself, ensuring that the SBW intelligent compensatory voltage stabilizer outputs high-precision (with an accuracy of ±1% or less) and high-purity stable three-phase balanced power.
It adopts an industrial-grade sturdy architecture and possesses strong shock resistance and overload capabilities, capable of calmly handling instantaneous current surges brought about by the startup of large motors, welding machine operations, etc.
At the same time, the SBW intelligent compensatory voltage stabilizer integrates comprehensive electrical protection systems such as overvoltage, undervoltage, overcurrent, short circuit, and phase loss.
Thanks to the high reliability and high efficiency (full-load efficiency > 95%) of the product, it is suitable for precision manufacturing lines, key data centers, medical facilities, research laboratories, and various critical infrastructure with strict requirements, significantly enhancing the safety, stability, and intelligent management level of the entire power system.

Operating Conditions

The SBW intelligent compensation voltage stabilizer is mainly used indoors (outdoor use requires customization). If necessary, please contact the sales representative at the Yibaling factory (Lassie). The normal operating conditions are as follows:

1. Altitude: ≤ 2000 meters
2. Ambient temperature: -20 to +45 degrees Celsius
3. Relative humidity: ≤ 90%
4. Installation site: Should be free from gases, vapors, chemical deposits, dust, dirt, and other explosive and corrosive media that seriously affect the insulation of the product. Have no obvious vibration or jolting.
5. It should be placed in a well-ventilated area. Do not place other thing at the top, and leave at least 60 cm around to ensure that the product can ventilate and dissipate heat properly.
For any special operating conditions that do not comply with the above regulations, please negotiate with our company when placing an order.

If you install the SBW intelligent compensation voltage stabilizer without communicating with our Yibaling Company and place it in an environment that does not meet the usage conditions, we, Yibaling Company, will not be responsible for any problems that may arise with the product.
