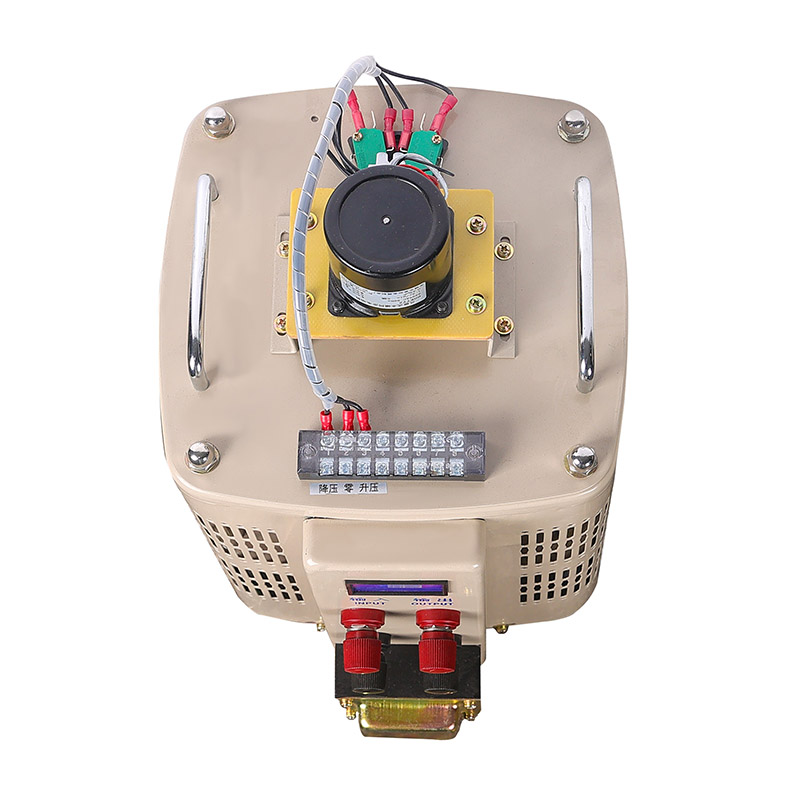

TDGC2 Contact-type Voltage Regulator

Yibaling is a reliable manufacturer and supplier of TDGC2 contact-type voltage regulator, it can be regarded as a manual voltage regulator. Its core consists of a ring-shaped coil and a carbon brush that can slide on it.

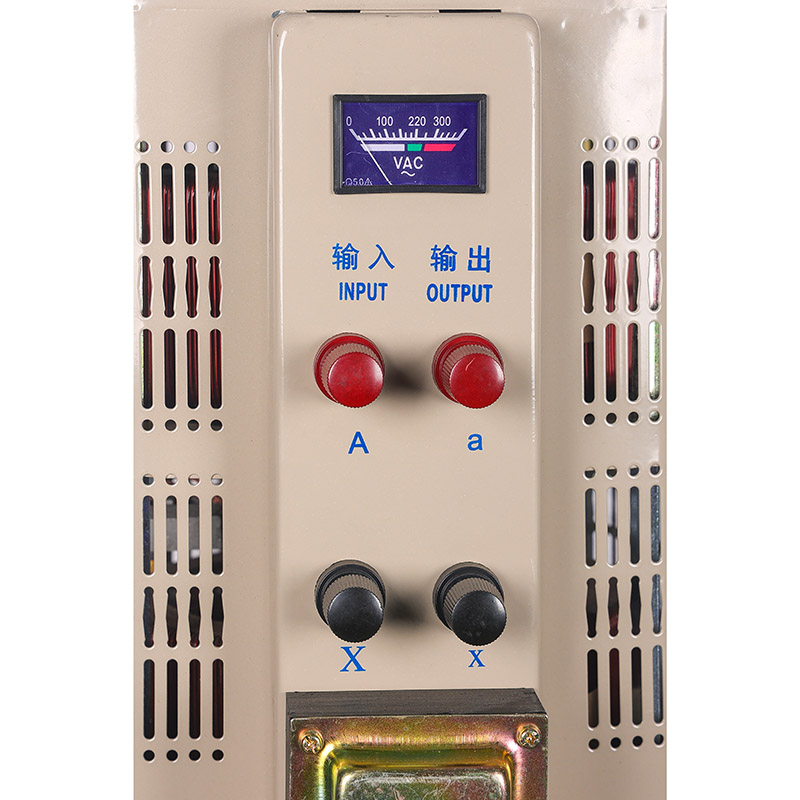

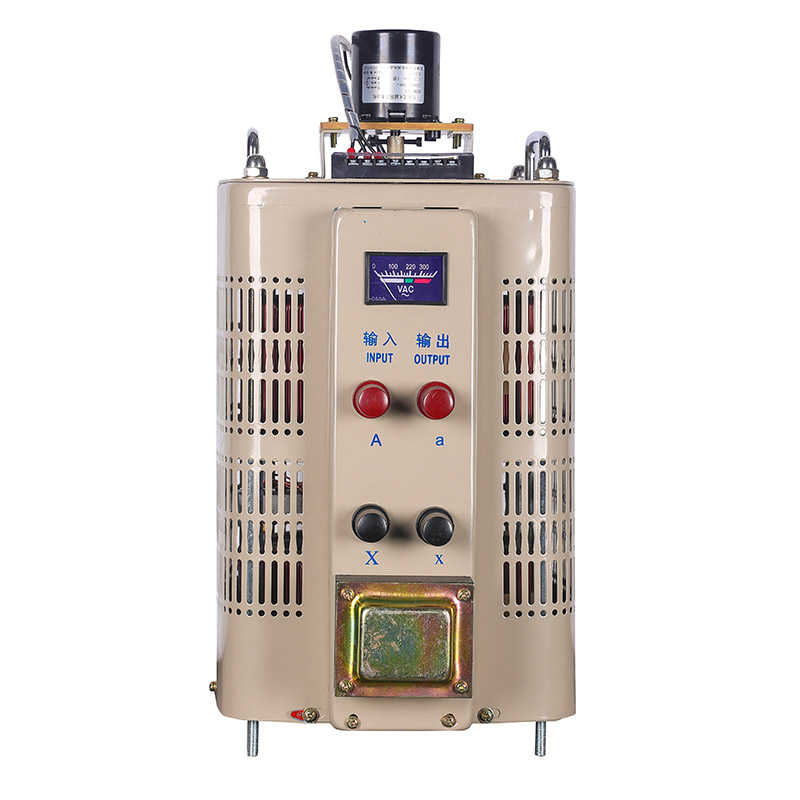

When you turn the handwheel, the carbon brush moves along the surface of the coil, directly adjusting the output voltage by changing the ratio of coil turns, enabling a continuous and smooth adjustment from 0 to 250 volts (some models up to 300 volts). This voltage regulator has a very simple structure, mainly consisting of a ring coil, carbon brushes, a handwheel and a voltmeter. It is very robust and durable.
Common power specifications range from 0.5 to 5 kilowatts. Because it is intuitive to adjust and has good accuracy, the TDGC2 contact-type voltage regulator is particularly useful in laboratories, repair shops, small equipment debugging or places where the brightness of lights needs to be adjusted manually, and it is considered a very classic model among this type of equipment.
Its advantages are intuitive adjustment, strong overload capacity, low cost and easy maintenance; its disadvantages are that the carbon brushes are prone to mechanical wear, and they need maintenance or replacement after long-term use.
Moreover, this equipment is not suitable for scenarios that require automatic control or frequent rapid adjustment. As a classic representative of contact-type voltage regulators, it still maintains extensive application value in teaching demonstrations, small-scale industrial and experimental fields.

Company Profile

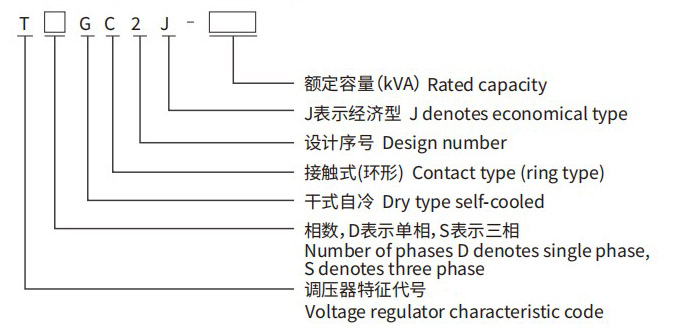

Model and its significance

Product Information

FAQ

Q: How often does the TDGC2 contact-type regulator need maintenance? What are the main maintenance items?

A: The maintenance cycle depends on the usage frequency and the environment. The general recommendation is to perform preventive maintenance every 6 to 12 months.
Core maintenance items:
Check and replace the carbon brushes: These are the main consumables. Check the remaining length of the carbon brushes and the contact surface. When the wear reaches 1/3 of the original length or there are cracks or missing corners, they must be replaced in groups.
Clean the winding surface: After power off, use dry compressed air and fine sandpaper (such as 600# or above) to gently sand off the oxide layer and carbon powder dust on the copper ring surface of the winding to ensure good contact.
Check the fasteners: Tighten all connection terminals and internal mechanical fixing screws.

Q: The TDGC2 contact-type regulator produces a lot of noise and sparks when running. Is this normal?

A: There is a certain amount of noise and sparks, which is a normal physical phenomenon, but the degree needs to be distinguished.
Normal situation: Uniform electromagnetic "buzzing" sound, and small, scattered blue sparks produced when the carbon brush slides over the winding.
Abnormal situation (need to be vigilant):
Noise: Occurrence of violent "clicking" sound or scraping sound, which may indicate loose mechanical components or carbon brush frame failure.
Spark: Occurrence of concentrated, continuous, and intense red sparks or even arcing. This usually indicates insufficient carbon brush pressure, worn-out carbon brushes, uneven winding surface, or severe overload of the load, and must be immediately shut down for inspection; otherwise, the winding will be burned out.

Q: What devices can the TDGC2 contact-type voltage regulator be used for? And which devices is it not suitable for?

A: Applicable: Resistive loads (such as incandescent lamps, electric furnaces), inductive loads (such as transformers, motors, but be cautious about the large starting current), capacitive loads and general electronic instruments. When adjusting the speed of the motor, please note that a decrease in speed will lead to a decrease in torque.
Not applicable/ Cautionary use:
Precision electronic equipment (such as computers, medical equipment): The output voltage waveform is not a perfect sine wave, and there is no voltage stabilization function, which may damage the equipment. For these devices, a dedicated voltage stabilizing power supply or UPS should be equipped.

Q: What are the differences between the TDGC2 contact-type voltage regulator and the servo-type voltage stabilizer (such as SVC)?

A: The principles and uses are different:
TDGC2 contact-type voltage regulator: Manual adjustment, the output voltage can be changed. The core function is to change the voltage. The user needs to manually set a fixed value according to the requirements, and the TDGC2 contact-type voltage regulator will not automatically maintain this value stable.
SVC (voltage stabilizer): Automatic adjustment, the output voltage is stable. The core function is to stabilize the voltage. When the input voltage fluctuates within a certain range, it can automatically adjust the internal mechanism (through servo motor drive carbon brushes), so that the output voltage can be stabilized at the set value (such as 220V), protecting the load from the influence of grid voltage fluctuations.
