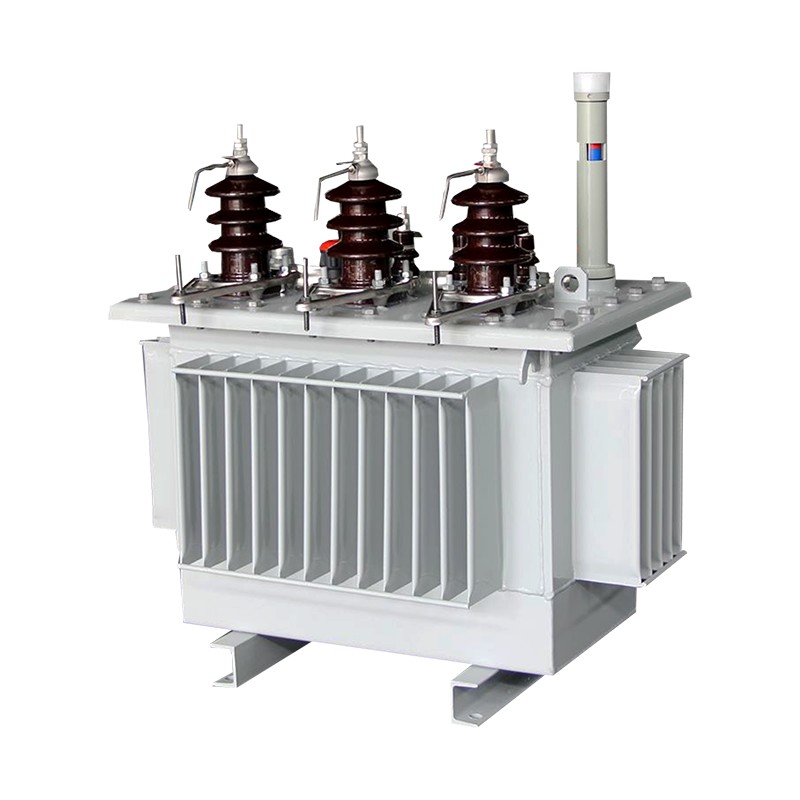

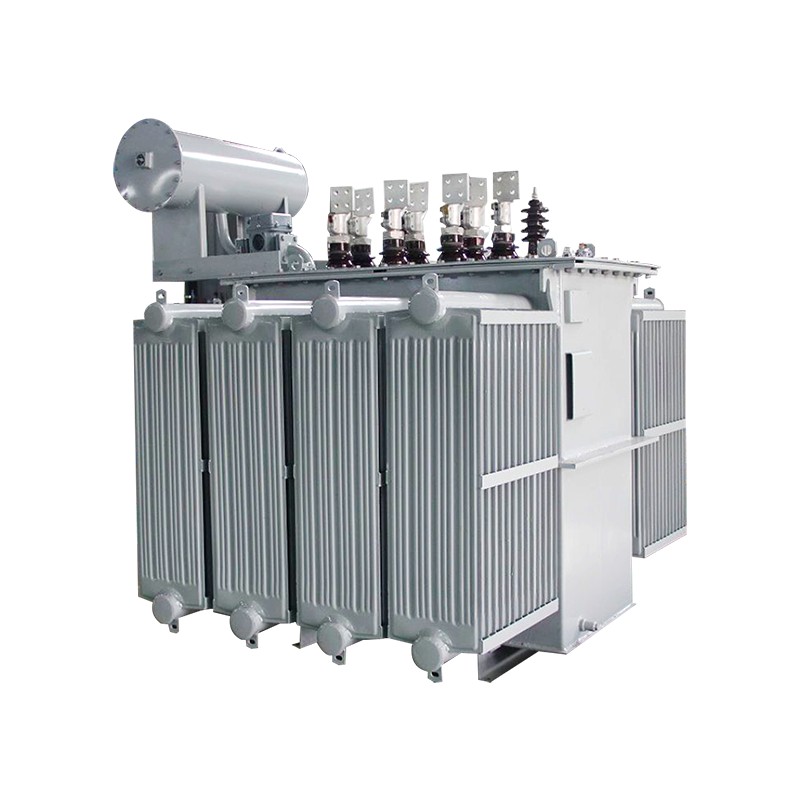

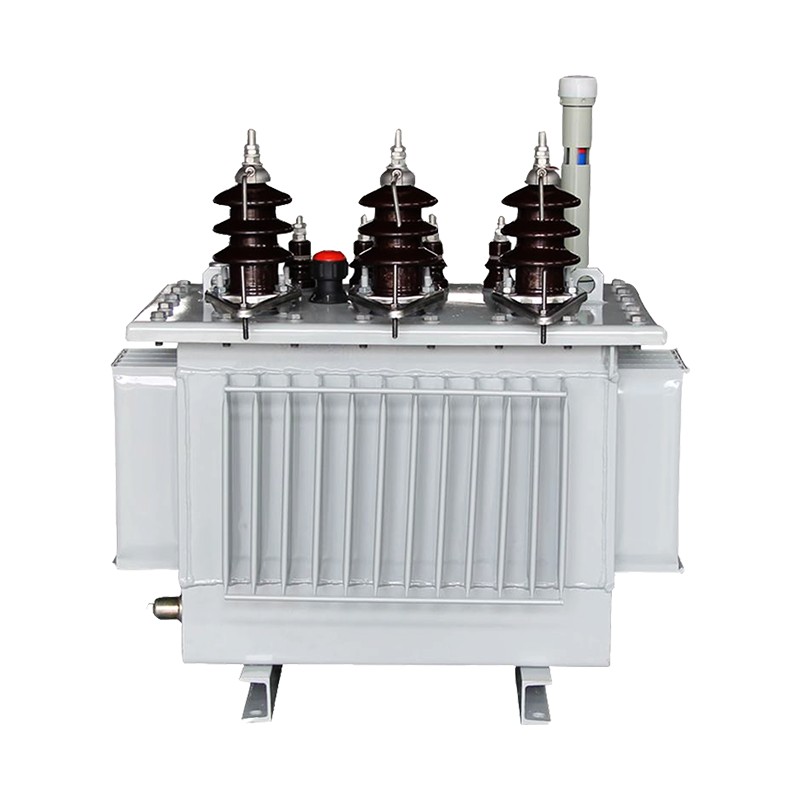

S11 Oil Immersed Distribution Transformer

Zhejiang Yibaling Power Equipment Company is a large-scale production factory of S11 Oil Immersed Distribution Transformers in China. The product is our company's flagship product. With its extremely high cost-effectiveness, it has been exported to countries like Europe and America and has continuously received positive feedback and repeat purchases. We also look forward to becoming your long-term cooperative partner in China.

Send Inquiry

Product Description

The S11 Oil Immersed Distribution Transformer is based on the S9 series. By using oxygen-free copper wire with lower resistivity and undergoing a series of additional surface treatments, the no-load loss is reduced by an average of 30%, and the no-load current is decreased by 70-85% compared to the S9 model. The average temperature rise is reduced by 10K, ensuring more reliable electrical performance and increasing the product's service life by more than double.

Company Profile

Technical Specification

Rated capacity	Weight (Total Weight)	Length	Width	Height
KVA	KG	MM	MM	MM
10	170	560	370	850
20	220	620	500	870
30	280	680	520	880
60	310	680	550	910
63	360	710	560	920
80	390	730	580	950
100	470	760	670	1000
125	510	1000	690	1000
160	630	1010	700	1080
200	680	1110	790	1100
250	790	1180	800	1110
315	900	1230	910	1140
400	1070	1340	950	1220
500	1270	1440	1030	1250
630	1580	1600	1310	1310
800	1830	1680	1350	1350
1000	2150	1700	1440	1440
1250	2800	1760	1600	1600
1600	3100	1780	1640	1640
2000	3800	1850	1650	1650
2500	4660	1910	1750	1750

Product Feature

The core feature of the S11 oil-immersed power distribution transformer vividly demonstrates the classic design of China's power distribution equipment's transition from high energy consumption to energy-saving type.

The most significant technological breakthrough lies in its core structure design - it is the first to extensively use high-quality cold-rolled oriented silicon steel sheets, combined with full 45° staggered seams and holeless binding techniques.

This design can significantly reduce the magnetic resistance and eddy current losses in the magnetic circuit. Compared with the previous S9 series, the no-load loss has decreased by approximately 30% on average.

At the same time, the windings of the S11 oil-immersed power distribution transformer adopt optimized layered or foil design, combined with the corrugated oil tank to enhance the heat dissipation effect. The load loss also decreases by 15% to 20%. The overall operational efficiency and economy have been significantly improved.

In terms of performance, it inherits the advantages of oil-immersed transformers, such as strong overload capacity and stable heat dissipation, and has lower operating noise.

It can be said that this product is the main force for energy conservation in the replacement of old with new of urban and rural power grids. By reducing long-term operating electricity costs, it achieves excellent total cost of ownership (TOC) throughout the entire life cycle.

The Advantage of S11 Oil-immersed Power Distribution Transformer

The advantages of the S11 oil-immersed transformer are rooted in its oil-paper insulation technology system. The core advantage lies in its unparalleled power carrying and heat dissipation capabilities.

The high specific heat capacity and circulation characteristics of the insulating oil give the S11 oil-immersed transformer excellent overload and shock load resistance, enabling it to dominate in the large-capacity (up to millions of kVA) and high-voltage fields.

At the same time, the mature oil-paper insulation system has a long lifespan, low initial purchase cost, and can achieve precise internal fault prediction through oil chromatography analysis (DGA).

This transformer is essentially a solution designed for outdoor, remote suburban, and other spaces with ample space and controllable fire risks for power stations and power grids.
