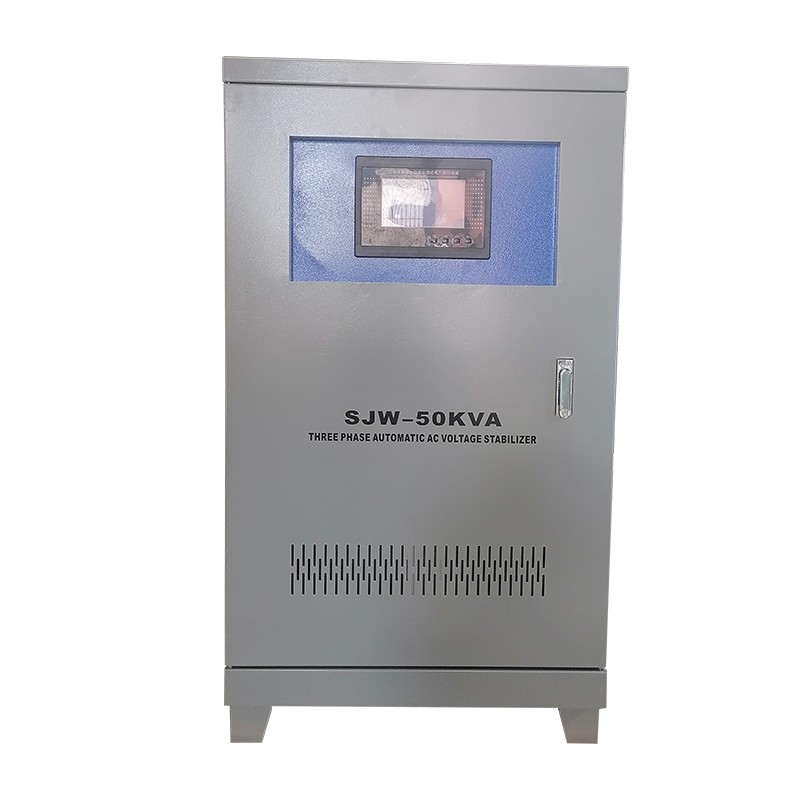

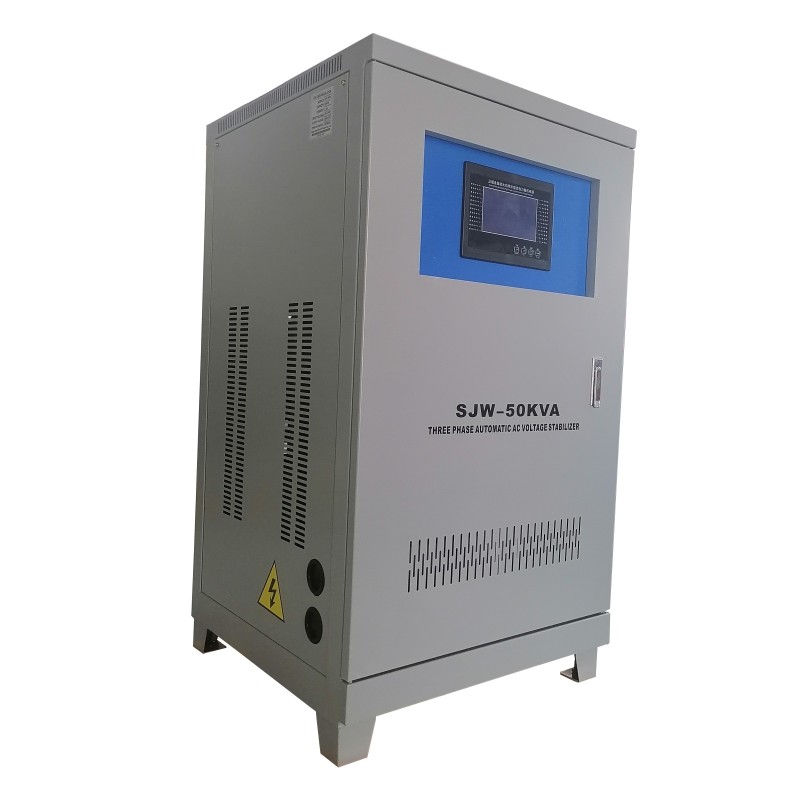

SJW Three phase Compensated AC Voltage Stabilizer

The Yibaling SJW Three phase Compensated AC Voltage Stabilizer is a fast, three-phase power stabilizer built for places where power quality really matters – like precision manufacturing lines, data centers, medical imaging rooms, and communication stations.
It uses a smart multi-tap design combined with independent phase control. This means it can fix voltage fluctuations, phase imbalance, sags, and surges in real time.

What Is the Function of the SJW Series Voltage Stabilizer in Various Applications?

1. In factories and workshops

Voltage often dips when big machines start up. Sometimes, the voltage stays unbalanced because single-phase loads are unevenly spread.
The SJW detects these changes in just 20 to 40 milliseconds and instantly corrects each phase separately.
For example, in a semiconductor plant, even a one-cycle voltage drop can ruin a whole batch of wafers. The SJW keeps the output voltage within ±1% of the setpoint, protecting sensitive equipment from upstream grid problems.

2. In commercial buildings

In these buildings, lighting, air conditioners, and IT equipment are on different phases – voltages are rarely balanced. Ordinary stabilizers with a shared core often can’t handle this.
But the SJW's three independent compensation units treat each phase on its own. That means no more overloaded neutral wires, less power loss, and no annoying light flicker.

3. In remote locations

For example, water treatment plants or mines, power is often fed by long overhead lines. During peak hours, the voltage can drop to 320 V or even lower.
The SJW’s wide regulation range (typically ±20% to ±30%) lifts the voltage back to the normal 380 V or 400 V.
As a result, pumps, blowers, and crushers get the torque they need and won’t trip due to low voltage.

Core Material and Technology

The performance of the SJW stabilizer is built upon a carefully selected set of materials and components, each chosen to fulfill a specific engineering objective: fast switching, low loss, high surge withstand capability, and long service life.

1. Compensation Transformer

The heart of the SJW stabilizer is three independent compensation transformers – one for each phase.
Their windings are made of high-purity oxygen-free copper (no cheap aluminum here), with an H-class insulation system that can handle temperatures up to 180°C safely.
The iron core is built from high-quality cold-rolled silicon steel (like 30Q130), using a step-lap joint technique. This simply means less wasted energy and lower no-load loss.
The design also keeps leakage inductance very low, so the compensation voltage responds almost instantly whenever the control system calls for it.

2. Control & Sampling System

The “brain” of the SJW is a DSP (digital signal processor) or a high-performance MCU.
It constantly monitors the three phase voltages using high-precision voltage transformers (accuracy class 0.2) and Hall-effect current sensors.
The control system uses independent PID compensation for each phase – which means each phase is corrected separately, without interfering with the others.
All protection features – over-voltage, under-voltage, over-current, phase loss, wrong phase sequence – are built into the software, but there’s also dedicated hardware backup to make sure the unit fails safely if something goes wrong.

3. Surge Protection & EMI Filtering

Every phase input comes with built-in surge protection:
MOV (metal oxide varistor) – absorbs voltage spikes
Gas discharge tube (GDT) – handles larger surges
Together, they stop both common-mode and differential-mode surges from reaching your equipment.
If you need even cleaner power, you can add optional EMI filters to cut down high-frequency noise – especially useful when you have sensitive electronic loads nearby.

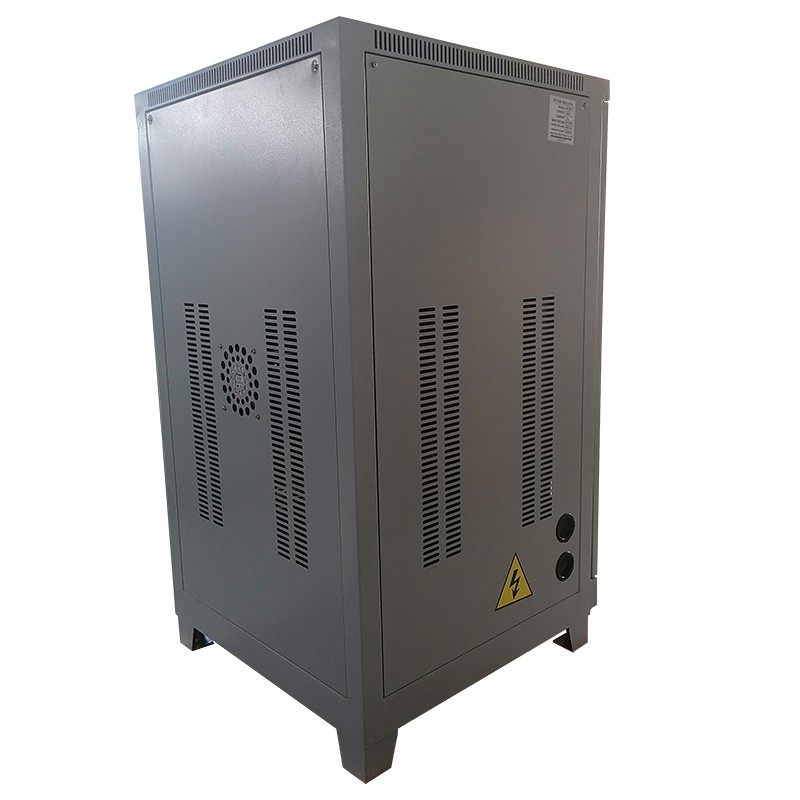

4. Enclosure & Cooling

The SJW comes in a heavy-duty steel enclosure (at least 1.5 mm thick), with electrostatic powder coating (≥80 μm) for good corrosion resistance.
Standard protection: IP20 – fine for indoor electrical rooms
Optional higher protection: IP23, IP54, or even more – for dusty areas or outdoor use
Cooling:
For units up to 100 kVA, natural convection is usually enough (no fan noise, no moving parts to fail)
For larger units, temperature-controlled fans with long-life ball bearings kick in only when needed
In plain words: The case is rugged, the cooling is smart, and you can choose the right level of protection for your site.

Customization of SJW Three-Phase Stabilizer

1. Key Parameter Confirmation

Before production, the following parameters must be clearly defined with the customer:

2. Technical Documents We Provide to Customers

When we build your SJW stabilizer, you won’t be left guessing. Here’s what we send you:
Compensation transformer drawing – shows core size, winding layout, and insulation grade.
SCR module selection report – explains which thyristors we use, how much safety margin we leave, and how we manage heat.
Control PCB schematic & firmware version – includes sampling method, protection settings, and communication protocol (Modbus, RS485, or Ethernet if needed).
Mechanical drawing & terminal layout – tells you how to mount it, where cables enter, and how to connect a bypass switch if required.

3. How We Build It – Key Manufacturing Steps

We don’t just “assemble” parts. We follow a controlled process.
Coil winding – done on computer-controlled machines with constant tension. Every layer of insulation is uniform. No “lucky guess” hand winding.
Vacuum pressure impregnation (VPI) – windings are soaked in solvent-free H-class epoxy resin under high vacuum (≤ 133 Pa), then cured in a temperature-controlled oven.
Why it matters: This makes the windings waterproof, dust-proof, vibration-resistant, and better at dissipating heat. Without VPI, insulation fails years earlier.
SCR assembly – modules are mounted on heat sinks with thermal grease and tightened with a calibrated torque wrench. This keeps contact resistance low and prevents overheating.

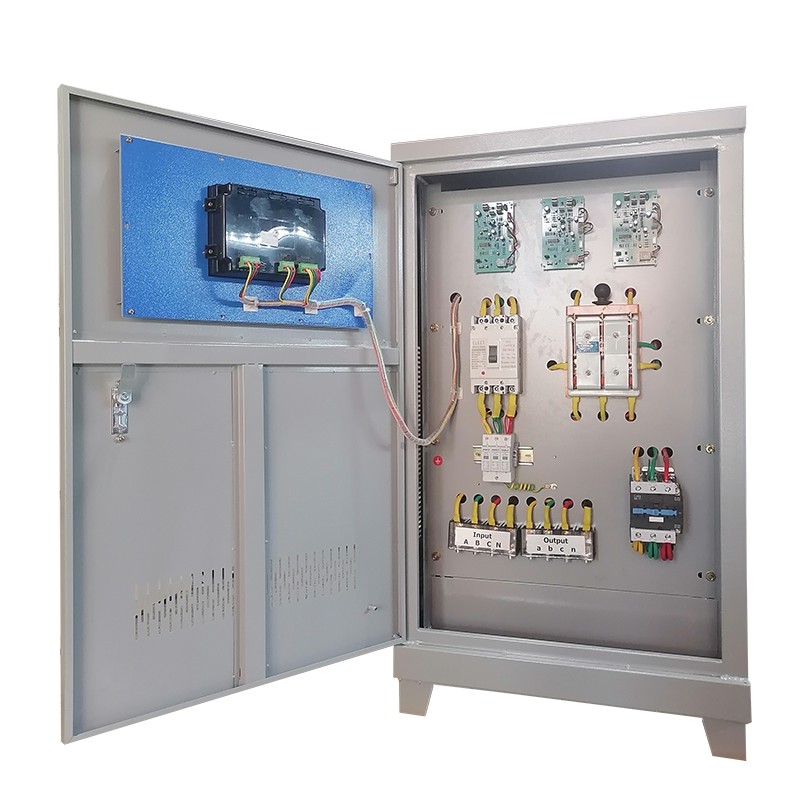

Final assembly – power and control sections are physically separated to reduce electrical noise. All internal busbars are tin-plated pure copper (not aluminum). Copper means lower resistance, less heat, and longer life.

4. Factory Testing

Every SJW unit undergoes a complete set of routine and type tests:
Insulation resistance (≥ 100 MΩ with 2500V megger)
Dielectric withstand (AC 3500 V / 1 min between windings and ground)
Phase-independent regulation test – unbalanced input voltage is artificially applied (e.g., A: +15%, B: 0%, C: −10%), and the output unbalance is measured (must be ≤ ±1%).
Dynamic response test – a 50% load step is applied; output voltage dip and recovery time are recorded with a high-speed power analyzer; it must return to within ±1% within 40 ms.
Load dump test – full load is suddenly removed; the over-voltage transient must not exceed +5% of the setpoint.
Over-current / short-circuit protection test – simulated faults verify that the SCRs are blocked and the input breaker trips within the specified time.
Each test result is recorded in the Factory Test Report, which is delivered to the customer together with the product.

If you are facing challenges such as unexplained equipment alarms, voltage-related production stops, or three-phase imbalance in your facility, the SJW series may be the answer. Yibaling’s engineering team is ready to assist with sizing, customization, and technical support.
