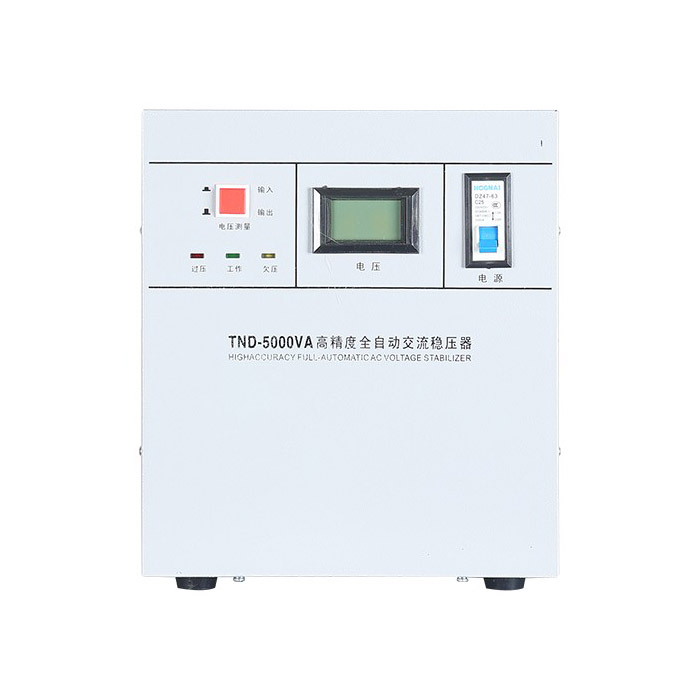

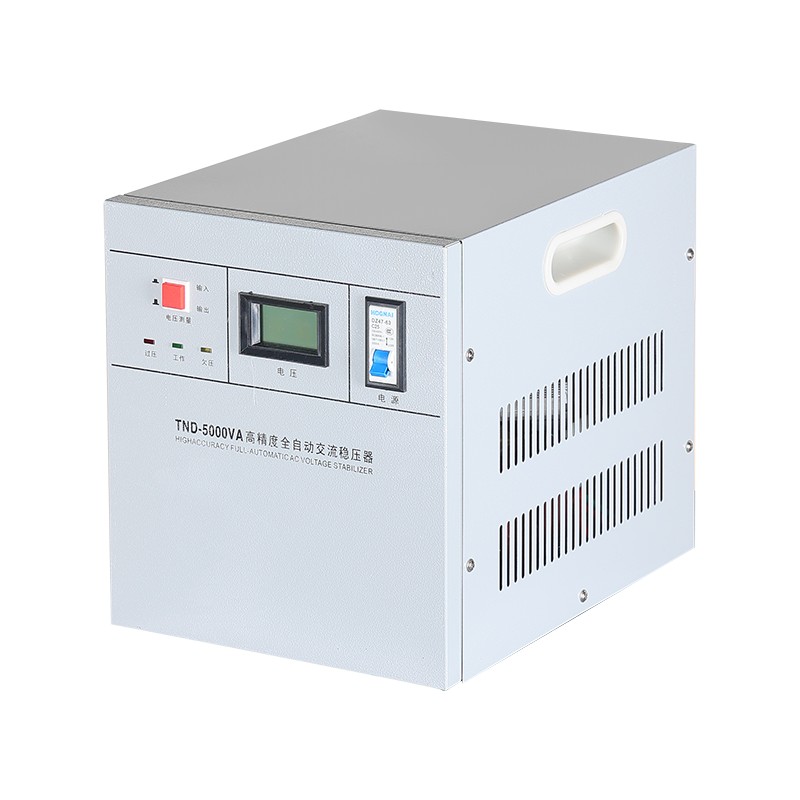

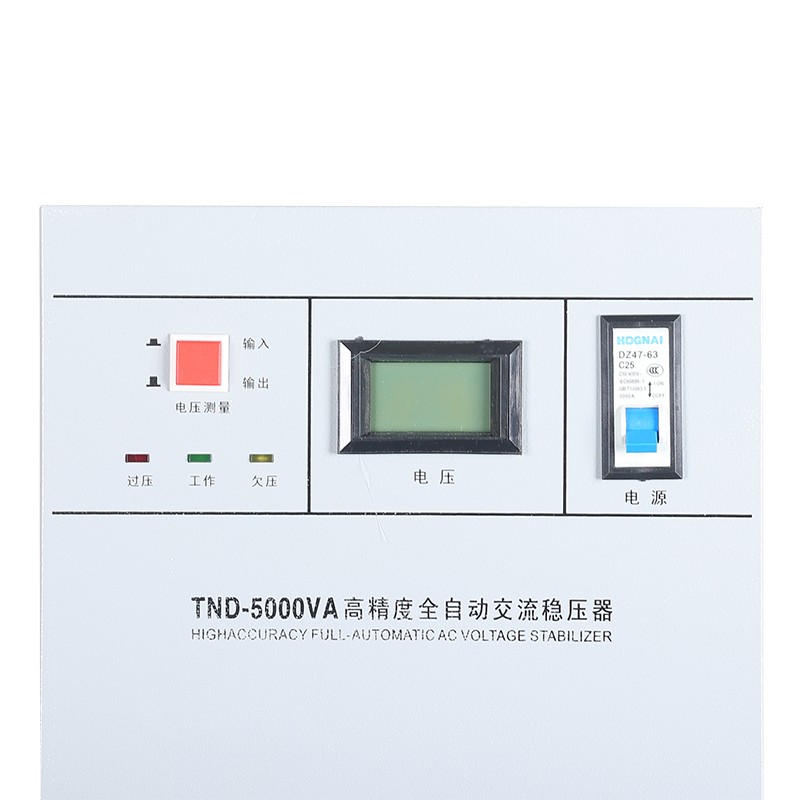

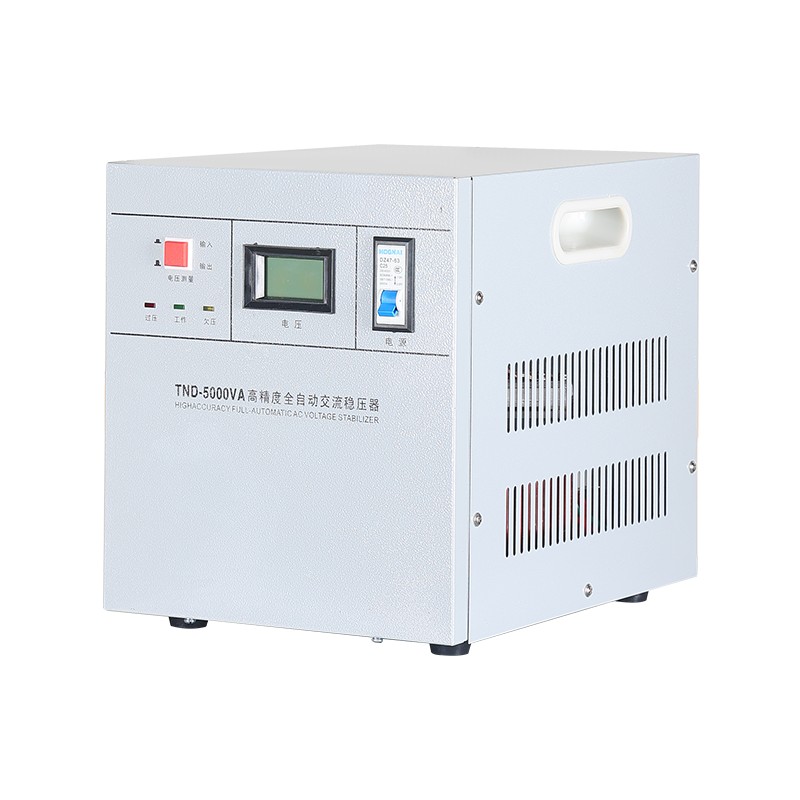

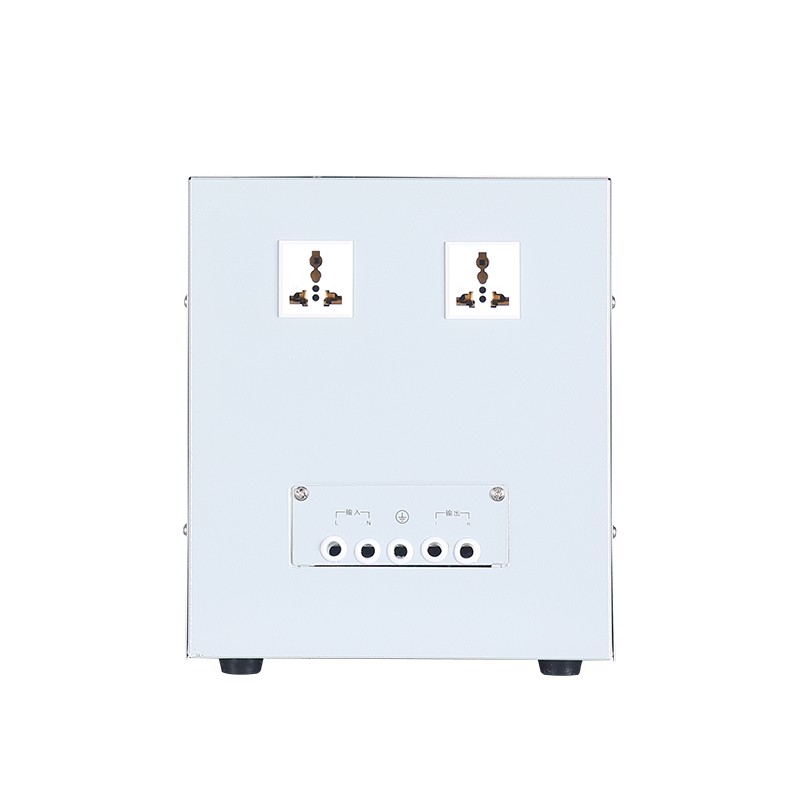

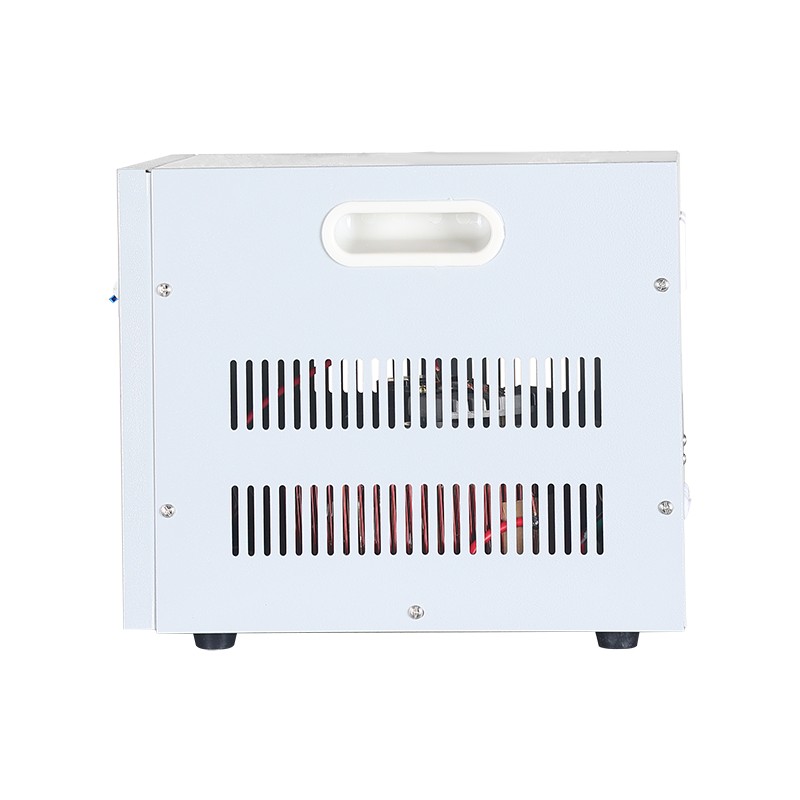

TND Fully Automatic AC Voltage Stabilizer

The TND fully automatic AC voltage stabilizer is one of the innovative products in the SVC series of AC voltage stabilizing power supplies. It is a new type of high-precision fully automatic AC voltage stabilizer designed and developed by our Zhejiang Yibaling Power Equipment Co., Ltd. by introducing Taiwan technology and considering the actual situation of Chinese power supply.
This voltage stabilizer is a classic and reliable single-phase fully automatic AC voltage stabilizer. It is specially designed for office, commercial, laboratory and light industrial environments that have stable requirements for power supply quality. It adopts mature ring-type autotransformer and servo motor-driven carbon brush adjustment technology. By real-time detection of the input voltage, it intelligently controls the smooth movement of the carbon brush on the ring-type transformer to achieve continuous and stepless correction of the output voltage.

Basic Parameter

Core Material

The core performance of the TND fully automatic AC voltage stabilizer is based on the strict selection of materials and components for four key goals: efficiency, lifespan, response speed, and safety. Each choice directly addresses a critical engineering issue.

1. Core Component

The iron core uses high magnetic permeability and low iron loss cold-rolled oriented silicon steel sheets (such as 30Q130). Its laminated process maximizes magnetic conductivity efficiency, minimizes no-load losses and heat generation. The winding of the TND fully automatic AC voltage stabilizer uses pure copper tape with a purity of ≥ 99.95% to ensure low resistance and high current-carrying capacity.

2. Critical Regulating Component

That is, the carbon brushes, use special graphite composite materials containing silver or copper. This material achieves the best balance between wear resistance, self-lubrication and conductivity, ensuring low contact resistance and minimal sparks during millions of smooth sliding movements on the ring-shaped winding, which is crucial for its maintenance-free operation for several years.

3. Precise Voltage/Current Transformers

This part serves as the brain of the control system. The sampling unit relies on voltage/current transformers with a precision level of 0.5 grade or above to achieve real-time grid detection with millivolt-level error.
The computing core uses industrial-grade microcontrollers (MCU) to handle data at high speed and issue instructions.
The execution terminals have two technical paths: those pursuing economy and high overload capacity will choose large-capacity magnetic holding relays; while those pursuing ultimate speed (response time can be as fast as millisecond level), silence and ultra-long lifespan (without mechanical wear), must choose non-contact solid-state relays (SSR), which achieve silent, spark-free electronic switching through thyristors.

4. Overall Structure

The case of the TND fully automatic AC voltage stabilizer is made of high-quality cold-rolled steel plates with a thickness of ≥ 1.2mm, coated with phosphating and powder coating, providing electromagnetic shielding and mechanical protection.
The large current channels inside are all connected with tin-plated or silver-plated T2 copper strips to minimize the path impedance and heat generation. At the front end of safety protection, a multi-level surge absorption network composed of varistors (MOV) and gas discharge tubes is integrated to resist lightning strikes and grid peak surges.
Therefore, a high-quality TND voltage stabilizer is essentially a system integration of high magnetic conductivity materials, wear-resistant conductive materials, precise semiconductor devices and stable structural materials.

Product Information

FAQ

Q: What are the differences between a stabilizer, a transformer, and an UPS (Uninterruptible Power Supply)?
A: The core functions of these three are different:
Transformer: It is mainly used to change voltage levels (for example, from 380V to 220V), but it does not automatically stabilize fluctuating voltages.
Stabilizer: Its core function is to automatically stabilize fluctuating voltages and keep the output at a set value (such as 220V). It does not change voltage levels (unless it is specially designed), nor does it provide backup batteries.
UPS: Its primary function is to provide uninterrupted power supply (in case of power outage, it is powered by battery inverter), usually it also has stabilizing function, but the power and battery life are limited, and its cost is much higher than that of a stabilizer.

Q: How to choose the appropriate capacity for a TND fully automatic AC voltage stabilizer?
A: Key steps:
Calculate the total power: List all the devices that will be connected to the TND fully automatic AC voltage stabilizer, and add up their rated power (in units of watts W or kilovolt-amperes kVA).
Note: The starting power of inductive loads (such as motors, compressors) may be 3-7 times the rated value, so it must be calculated based on the starting power.
Allow for safety margin: Multiply the total power by a safety factor (recommended 1.2-1.5) to obtain the minimum capacity of the required voltage stabilizer. For example: If the total load is 8 kVA, then a voltage stabilizer of at least 10 kVA should be selected.
Confirm the voltage: Ensure that the input voltage range of the TND fully automatic AC voltage stabilizer can cover the fluctuations of your local power grid (such as 170V - 250V), and the output voltage meets the requirements of the equipment (such as 220V).
