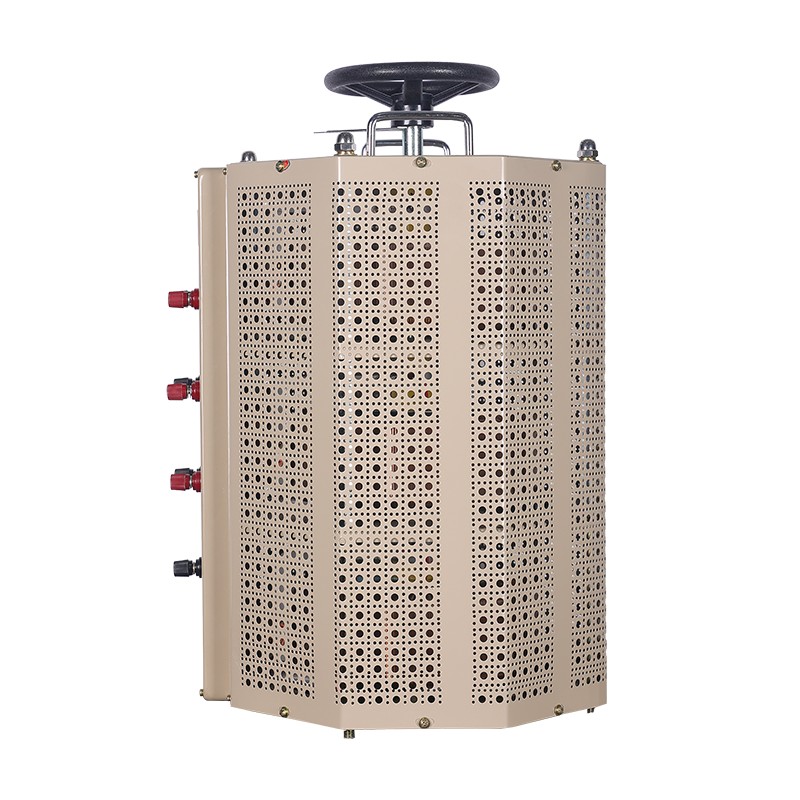

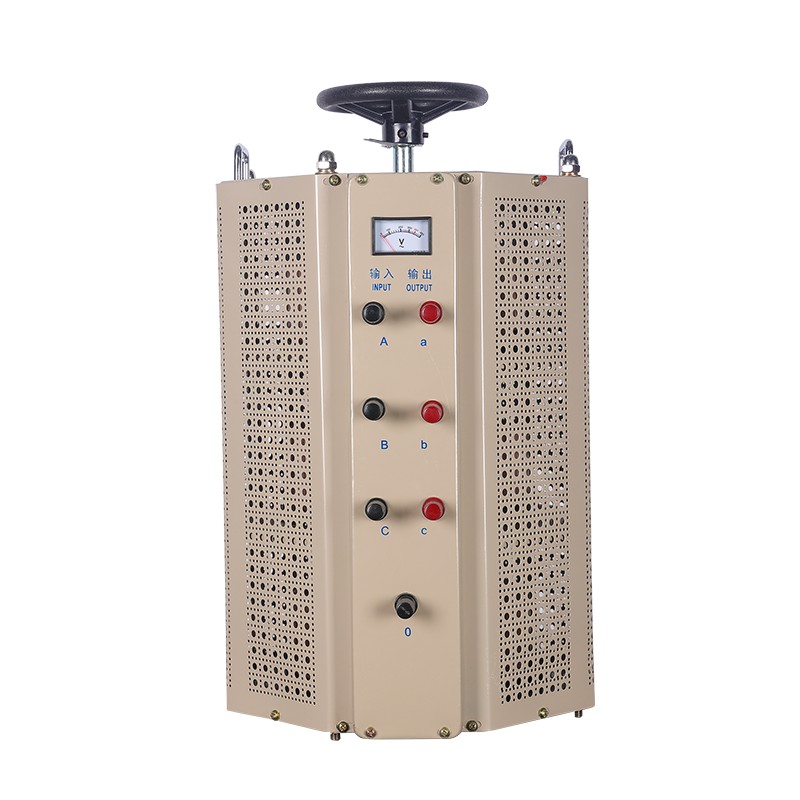

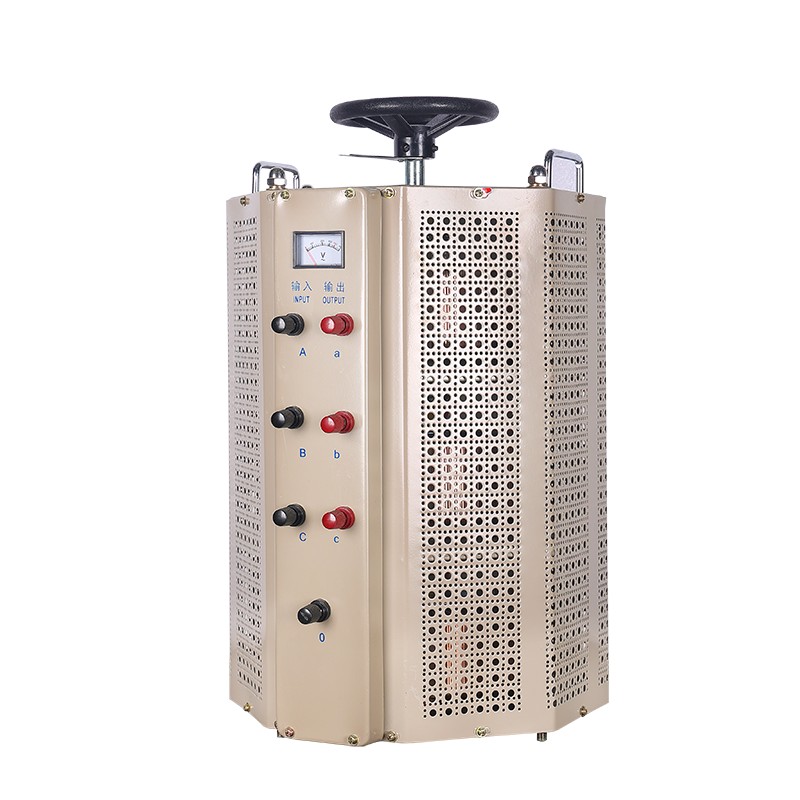

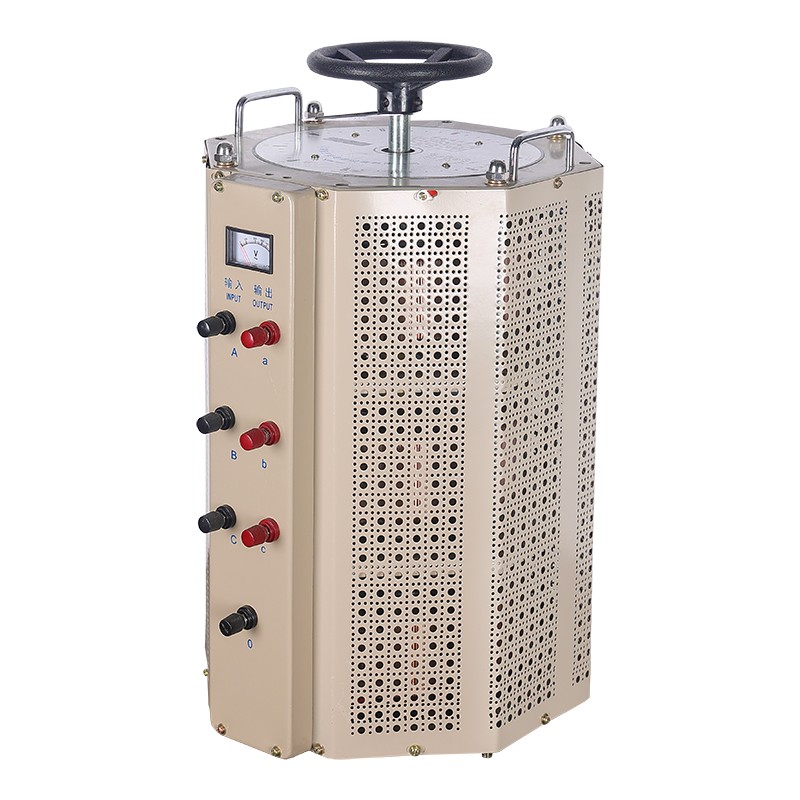

TSGC2 Contact-type Voltage Regulator

As a professional manufacturer and supplier, Yibaling's TSGC2 contact-type voltage regulator is a self-coupled voltage regulating transformer, features waveform distortion-free, small size, light weight, high efficiency, easy operation, and long-term reliability.
It can be widely applied in industries such as chemical engineering, metallurgy, instrumentation, mechanical and electrical manufacturing, light industry manufacturing, and scientific experiments to achieve purposes such as high voltage, temperature control, speed regulation, light control, and power control. And it is an ideal AC voltage regulating power supply.

Core Material

The core material combination of the TSGC2 contact-type regulator - special graphite brushes, finely ground and coated copper rings, and cold-rolled silicon steel sheets - constitutes the three physical pillars of its classic manual voltage regulation architecture. The selection of each material directly corresponds to the realization of a key performance.

1. The magnetic circuit foundation: Cold-rolled silicon steel sheet core

This is not an ordinary silicon steel sheet; it is a high-quality cold-rolled oriented silicon steel sheet with a clear loss value (W/kg) and high magnetic permeability (such as the 30Q130 series). It is stamped into a ring shape and then stacked in a stepped manner to form a low magnetic resistance and low eddy current loss efficient closed magnetic circuit. This ensures that during the regulation process, the no-load loss and heating of the core itself are controlled at a low level, providing a high-efficiency and quiet energy conversion foundation for the entire device.

2. The conductive and sliding core: Finely ground and coated copper ring and special graphite brushes

This is the key friction pair for achieving smooth, stable, and low-loss voltage regulation.
Copper ring: The exposed part of the winding as the sliding track, not simply polished. It needs to undergo precise turning and polishing to achieve mirror-like surface finish (Ra value usually ≤ 0.8 μm), and then undergo silver plating or thick tin treatment. The coating not only reduces contact resistance and inhibits oxidation, but also its soft nature can better match with the brush, achieving nearly stepless, low-spark voltage regulation.
Special graphite brushes: This is not an ordinary carbon brush, but a composite metal graphite material with high-purity graphite as the base and copper powder or silver powder impregnated. This formula ensures its excellent self-lubrication (reducing friction and wear), high conductivity (lowering contact pressure drop and heat loss), and stable friction coefficient. Its hardness and elasticity are specially designed to ensure the contact pressure while avoiding scratches on the copper ring.

3. The synergy of structure, conductors, and insulation

Winding conductor: Use electrolytic copper enamelled wire with a purity of ≥ 99.95% to ensure low resistance and high current-carrying capacity.
Mechanical support: Use Q235 cold-rolled steel plate with a thickness of ≥ 1.5mm, folded and welded into a frame, providing stable mechanical support and winding positioning.
Insulation system: Use polyester film (PET), corncob paper, or DMD insulation paper for reliable isolation between winding layers and to ground, with insulation grades typically B level (130°C) or higher to ensure electrical safety. In summary, the classic design of the TSGC2 contact-type regulator is essentially integrating efficient magnetic circuit (silicon steel sheet), ideal sliding contact (coated copper ring + composite graphite brush) and reliable insulation structure through precise processing. This material combination achieves an excellent balance between cost, reliability, and performance, making it an enduring solution in laboratories, industrial control, and situations requiring manual fine voltage regulation. The smoothness of the voltage regulation feel, output stability, and service life are directly determined by the grade and processing accuracy of the core materials and their processing.

The Function of the TSGC2 Contact-type Voltage Regulator

The TSGC2 contact-type voltage regulator is a manual voltage regulation device based on pure electromagnetic and mechanical principles. The core function is to provide a continuous, smooth, linearly adjustable and intuitively controllable AC power supply.

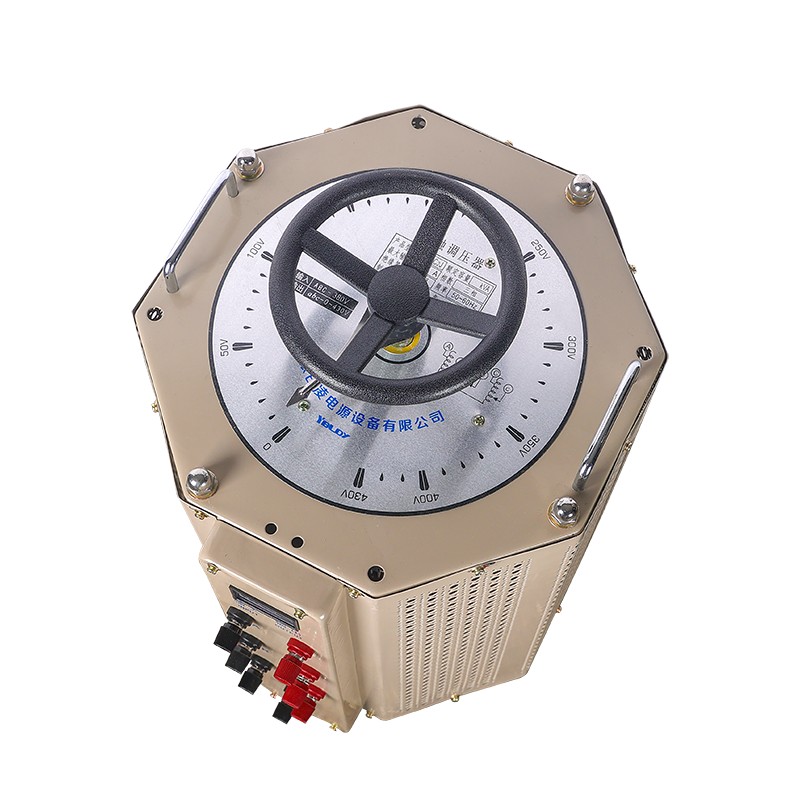

By rotating the handwheel to drive the special graphite brushes to slide on the finely ground and plated ring-shaped copper winding, this voltage regulator can achieve stepless voltage regulation from 0V to the rated value (such as 0-250V or 0-430V), and provide intuitive indication through the coaxially linked mechanical scale dial, allowing the operator to make fine voltage adjustments.
Due to the pure physical conductive structure (copper winding + brushes), it has a strong instantaneous overload capacity and can output pure and distortion-free sine waves.
The typical application of the TSGC2 contact-type voltage regulator is as a manual adjustable power supply in laboratories, workshops or production lines, used for equipment debugging, load testing, phased motor starting or teaching demonstrations.
However, it must be clearly stated that this product is not an automatic voltage stabilizer - when the input voltage or load changes, the output voltage will fluctuate and requires manual intervention for re-adjustment.
At the same time, the TSGC2 contact-type voltage regulator usually does not have electronic protection functions, and its brush is a wear part, requiring regular maintenance.
Therefore, the essence of the TSGC2 contact-type voltage regulator is a reliable, durable and cost-effective manual voltage setting tool, suitable for situations where manual precise control of voltage is required or where impact loads are endured, rather than being used in systems that require automatic voltage stabilization.
