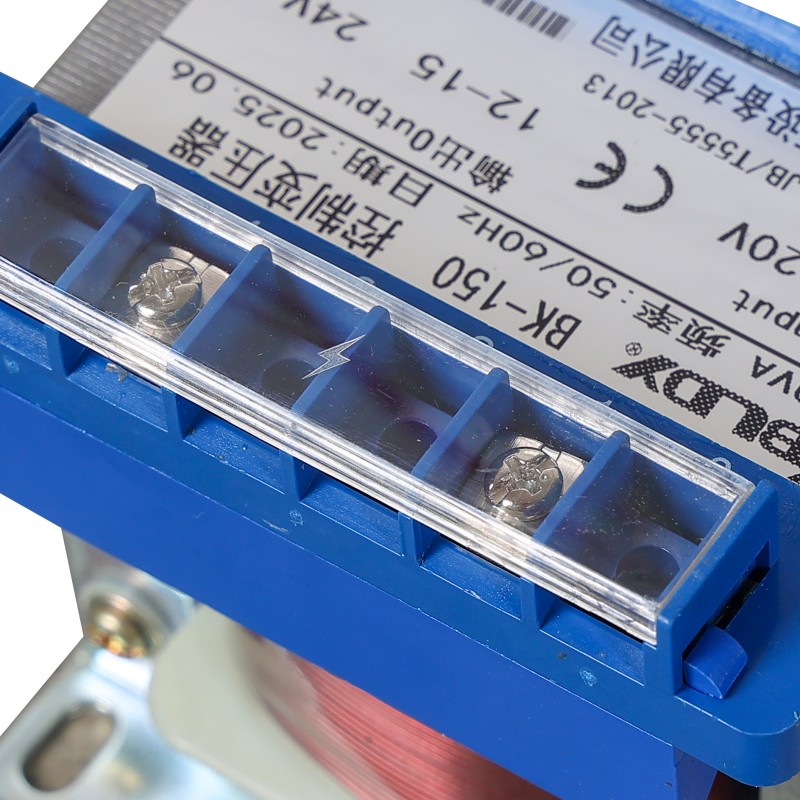

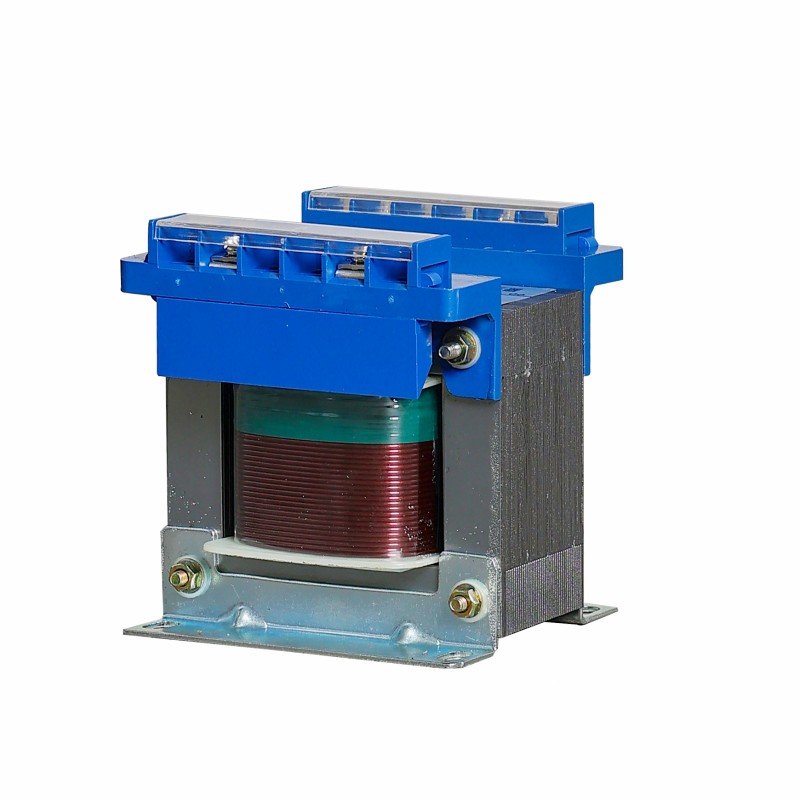

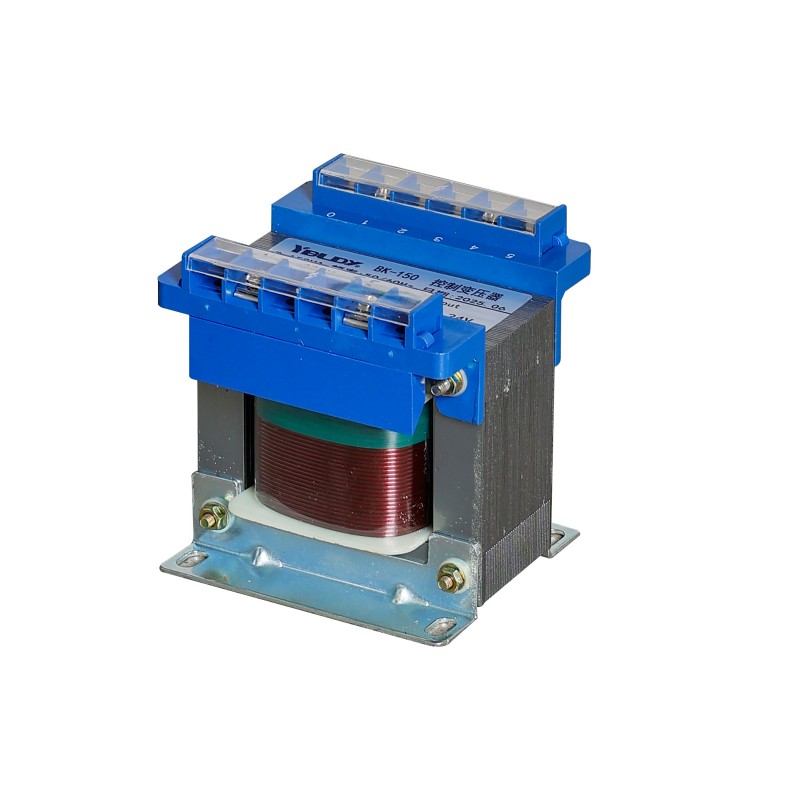

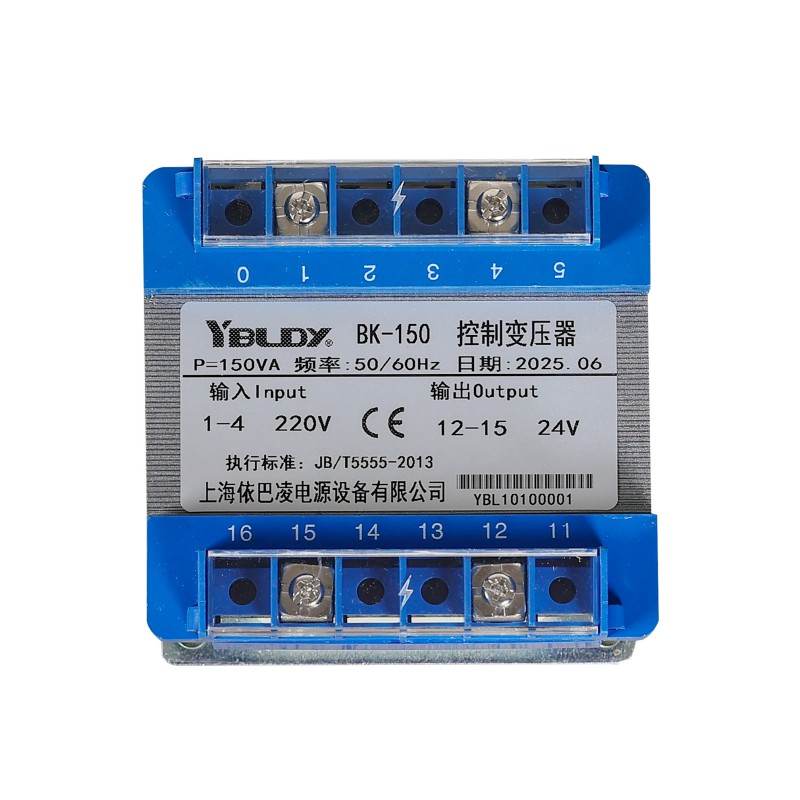

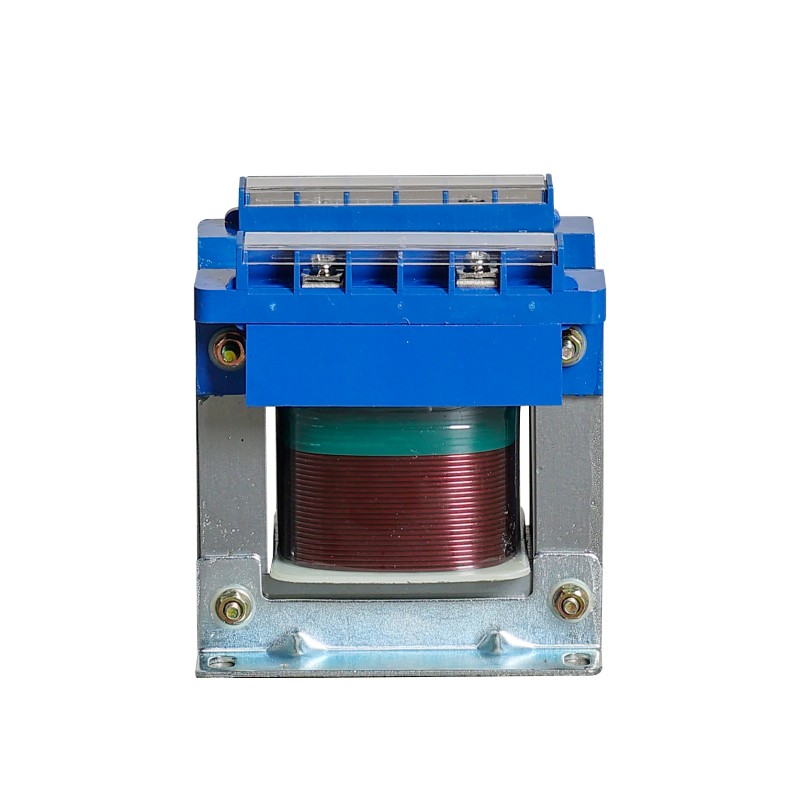

BK Control Transformer 50-60Hz

We, the Zhejiang Yibaling Power Equipment factory, developed the BK control transformer 50-60Hz specifically to handle the tough demands of industrial settings—think automation lines, machine tool systems, and precision instrumentation.

Every BK control transformer is built around a quality-driven approach:

We start with high-grade cold-rolled silicon steel for the core and use all-copper windings throughout. Through vacuum impregnation and integrated electrostatic shielding, the BK control transformer 50-60Hz delivers not just stable performance across both 50Hz and 60Hz networks, but also true electrical isolation—keeping sensitive equipment protected.

What truly sets this transformer apart is the performance in actual field conditions. It can safely and stably convert the common 380V or 220V power supply in factories into the voltage required for equipment control. What's more, it can filter out the noise and interference from the power grid during the conversion process.

We also support flexible adjustment of the voltage configuration according to your system requirements. It's not "you can only choose the standard model", but "you can make it exactly as you need".

Core Raw Materials and Processes

At our Yibaling factory located in Zhejiang Province, each BK control transformer 50-60Hz is manufactured according to a simple principle: use high-quality materials for input and deliver reliable performance as output. That's why we start from the basics - using Wugang 30Q130 as the core material.

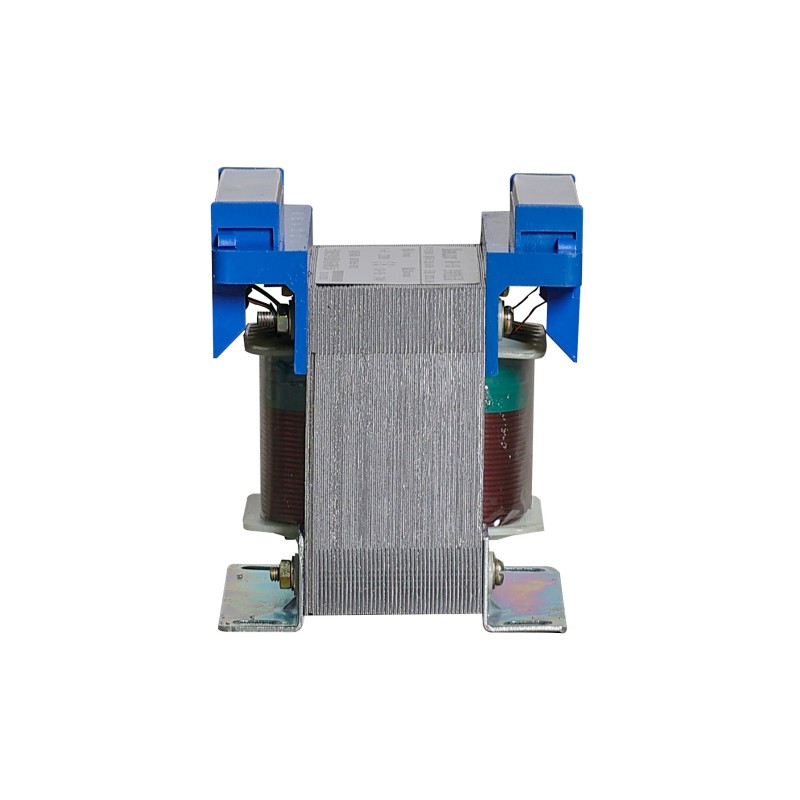

Each silicon steel sheet is carefully staggered and layered, with the sheets staggered and stacked in a stepped structure. This structure reduces the no-load loss and makes it noise-free when in operation.

Our Yibaling factory can produce BK control transformers 50-60Hz that can operate in both China's 50Hz power grid frequency and foreign 60Hz power grid frequencies.

In the winding process, we use T2 grade oxygen-free copper enameled wire, which has good conductivity and less heat generation. When winding, the layers are not padded with ordinary paper, and each layer is insulated with DMD composite material (polyester film composite foil). This treatment results in superior insulation and temperature resistance compared to those using ordinary materials.

The most crucial step is that the engineers at Yibaling factory add a copper foil shielding layer between the primary and secondary coils. This copper foil shielding layer can actively shield interference from the power grid.

After winding, each transformer undergoes vacuum impregnation treatment. In a vacuum environment, the H-level solvent-free epoxy resin paint is allowed to thoroughly penetrate every gap, and then undergoes curing treatment. This process seals the windings in a sturdy, moisture-proof, and shock-resistant insulation system, ensuring good performance even in harsh environments.

Before the product leaves the factory, it undergoes strict mechanical fixation treatment. All bare double layers must be tightened with a torque wrench to prevent loosening due to transportation vibration.

In terms of electrical performance, the BK control transformers 50-60Hz undergo strict testing under dual frequencies - 50Hz and 60Hz. We do this because we know these transformers typically support precision automation equipment and precision instruments. They not only need to operate normally - but also need to run stably, cleanly, and safely day after day.

Advantage

The BK control transformers 50-60Hz produced by our Yibaling factory are truly reliable. They do not rely on theoretical parameters, but rather on their practical application in various industrial scenarios. The safety is achieved through a tangible separation.

The inside of the transformers consists of two completely independent coils, with no wires directly connecting them. The electricity is transmitted through a magnetic field. This physical structure ensures that when you touch the low-voltage electricity output by the BK control transformer 50-60Hz(such as the safe voltage of 36V), you cannot feel the "root" of the high-voltage power grid in front of you. The risk of electric shock is fundamentally minimized.

More importantly, it acts like a firewall. When a lightning strike surge or voltage spike from the external power grid enters, this physical isolation can block it out to a large extent, protecting the PLCs, instruments, or precision equipment connected behind from being damaged. In factories, this is likely to avoid an expensive equipment damage and unplanned downtime.

Every BK control transformer produced on our Yibaling factory's production line possesses such characteristics: engineers have specially embedded a complete copper foil electrostatic shielding layer in the windings. Thus, various noise interference from the power grid is blocked out, providing a clean power supply for the precision equipment, and ensuring a safe operation in the workshop.

They support multiple voltage inputs and multiple voltage outputs. No matter how large the input and output voltages you need are, Yibaling factory can quickly provide you with the corresponding technical solutions and customize transformers for you.

The windings are made of high-quality cold-rolled silicon steel sheets and use the vacuum impregnation (VPI) process. The purpose of this is to make the BK control transformers consume less power, have lower heat generation, and at the same time, the internal windings can be moisture-proof, shock-proof, and less prone to damage.

Installed in the workshop, even if the environment is a little humid or the equipment operates with slight vibration, the products can withstand it, are less likely to break, and reduce the cost of replacing equipment.
