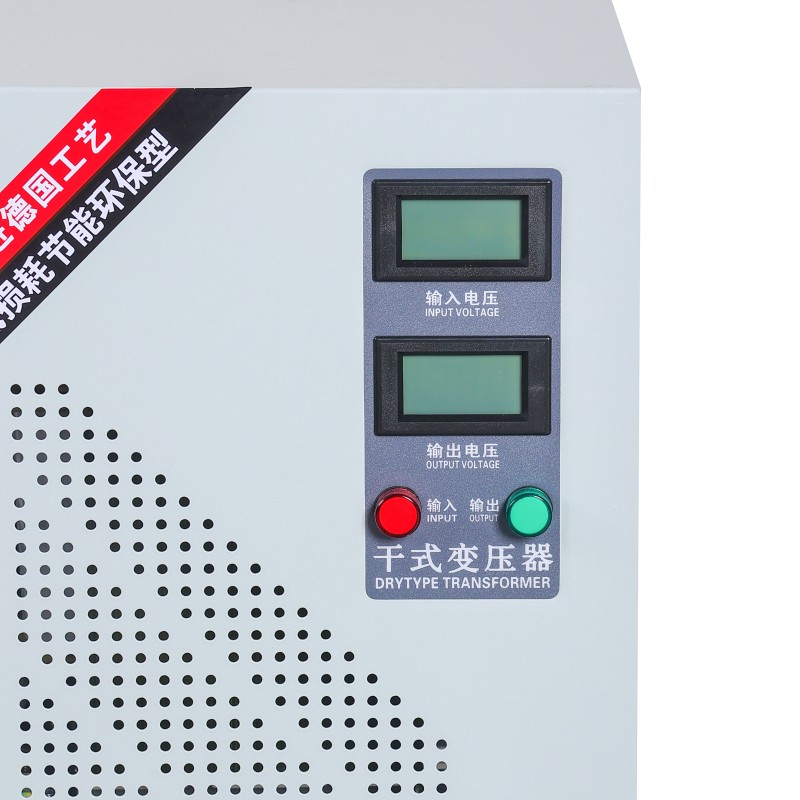

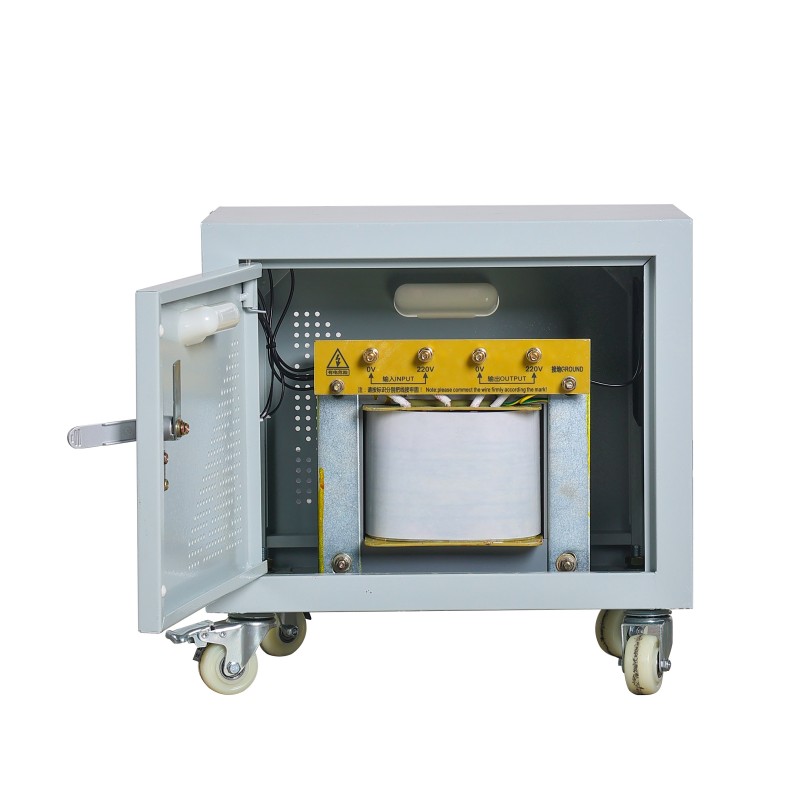

DG Isolation Transformer

The DG isolation transformer is a power equipment with safety protection and electrical isolation functions. Its core role is to achieve multiple protections through the electrical isolation of the input and output windings, thereby reducing the risk of electric shock.

It not only provides a 1:1 voltage conversion, but also can be customized with a transformation ratio of 380V/220V according to customer requirements. It can also integrate additional protections such as overcurrent and overtemperature, and at the same time, the transformer can improve the power supply imbalance problem by overcoming the center point drift.

The DG isolation transformer can effectively block the common-mode noise, high-frequency harmonics and static interference from entering the load side in the power grid. This effect is particularly significant through the Faraday shielding layer (grounded copper foil) added between the primary and secondary. This provides a cleaned power environment for the PLC, precision instruments, medical equipment or sensitive control systems at the rear end.

Product Parameter

Technical Specifications

Core Advantage

The DG isolation transformers produced by our Yibaling factory offer value beyond that of ordinary products in certain aspects. The price reflects the concentrated value rather than being merely cheap. Many low-priced transformers of the same model (with similar power and size) available on the market compromise on raw materials to control costs, while we adhere to high standards: using high-quality, high-magnetic-conductivity silicon steel sheets (Wuhan Steel 30Q130), and using T2 oxygen-free copper strips for the high current windings on the low-voltage side, resulting in a 15%-20% lower no-load loss compared to the low-priced products.

At the same time, our products have passed the national compulsory product certification (CCC), EU CE safety certification, and ISO9001 quality management system certification. Their quality is benchmarked against international standards. This is not just the superficial name of the certificates, but means that in the production of DG isolation transformers at our Yibaling factory, the materials used, production processes, and the final DG isolation transformer products' tests all follow international standards.

While some low-priced products may have false marked parameters on their nameplates, their actual capacity and insulation level may not meet the standards, and they could be a time bomb when used in precision instruments or critical production lines. In critical equipment, precision instruments, or harsh industrial environments, the stability of our DG isolation transformers is unquestionable. This avoids problems such as equipment damage, data loss, or production stagnation caused by transformer failures. If such problems occur, the value lost is far greater than the price difference when purchasing initially.

In terms of customization, as a factory rooted in the "Electrical Appliance Capital of China", our Yibaling factory's advantage is flexibility. If you need non-standard input and output voltages, special protection grades (such as IP54 dustproof and waterproof), or cabinet installation dimensions with strict restrictions, you don't need to pay a huge price for a completely zero-start design.

Yibaling company can quickly adjust the solution based on the mature platform. At the same time, our local supply chain and production line can cooperate efficiently. If the equipment needs maintenance or technical support later, a phone call can enable our engineers to quickly solve the problem through one-on-one remote guidance, saving you a lot of downtime waiting.

The core advantage lies in providing customers with a high-value solution that is "a little more expensive to buy, but more reliable and convenient to use, and economically beneficial in the long term".
