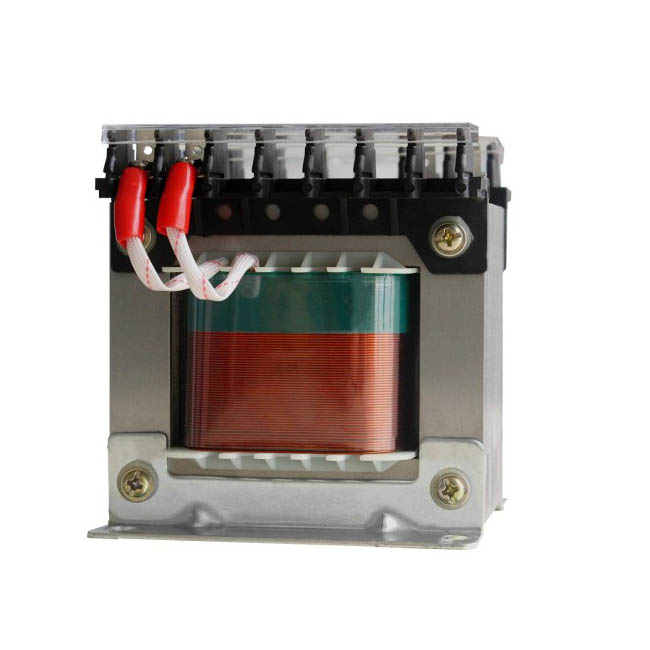

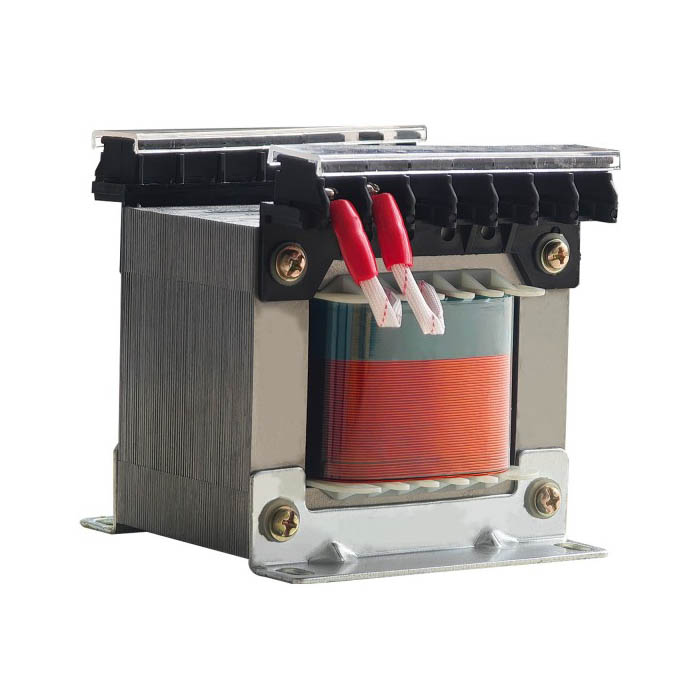

JBK3 Power Supply Transformer

The JBK3 power transformer is used in circuits with an alternating current of 50-60Hz and an input voltage not exceeding 660V. It  serves as the control power supply, local lighting power supply, and indicator light power supply for various machines and equipment.

The JBK3 power supply transformer is an updated product for other controllers. It is manufactured using imported materials and advanced techniques, featuring reliable operation, low energy consumption, small size, safe wiring, and wide applicability.

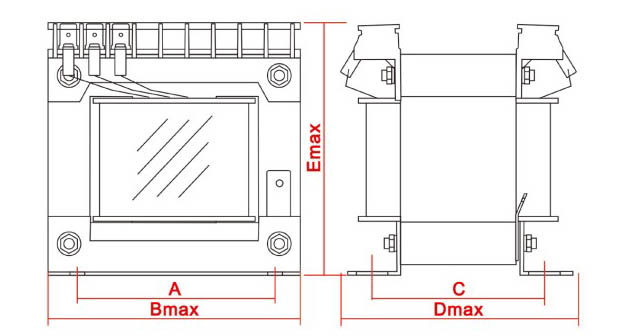

The contour and installs the size

Price Advantage

Our JBK3 power supply transformer is priced not through a price war, but based on a comprehensive set of refined engineering and manufacturing systems at our Yibaling factory in Wenzhou (located in Liushi Town, Wenzhou). Our goal is straightforward: to calculate the most cost-effective total cycle cost for users, rather than just reporting the lowest factory price.

Firstly, at the design stage, we start to control costs. Our technical team carefully analyzes your specific operating conditions instead of simply applying standard high-redundancy solutions. For example, for different load characteristics, we will conduct graded design for the magnetic flux density, winding current density, and insulation margin, eliminating unnecessary "excessive performance", while ensuring reliability, to achieve the optimal material ratio.

Secondly, our geographical and supply chain advantages directly translate into cost and quality advantages. As an enterprise rooted in Wenzhou, the "Electrical Capital of China", our factory is located in the most densely populated low-voltage electrical industry cluster in the world, enabling us to efficiently and directly purchase high-quality silicon steel sheets, electromagnetic wires, and insulation materials.

At the same time, thanks to the convenience of being close to the Ningbo Port, we have a more advantageous logistics cost and time cost when obtaining imported special raw materials (such as key insulation components). This deep integration into the industrial chain gives us stronger control over the cost and supply stability of core materials.

In the production and manufacturing process, the JBK3 power transformer applies our factory's mature modular winding process and digital production management. For example, we predictively control the winding accuracy of the windings, reducing rework and material waste; standardized module design also improves assembly efficiency. These process optimizations within the factory directly reduce the labor and energy costs per unit product, and we choose to reflect this benefit in a more competitive price.

Most importantly, the price support point lies in its long-term usage value. A precisely designed and well-materialized JBK3 power supply transformer means smoother installation and commissioning at the user site, lower no-load loss, more stable long-term operation, and fewer maintenance requirements. These seemingly invisible advantages will continuously translate into electricity cost savings and reduced risk of production stoppages in actual use.

Therefore, the pricing is essentially based on the supply chain efficiency of our Yibaling factory in Wenzhou, our own design engineering capabilities, and our comprehensive consideration of users' long-term operating costs. What we provide is not just a JBK3 power supply transformer, but a localized solution based on specific scenarios and with a more favorable overall ownership cost.

How to maintain the JBK3 power supply transformer？

Maintaining the JBK3 power supply transformer is a systematic project centered on preventive measures, data-driven management, and full-cycle management. Customers can carry out the maintenance according to their own needs.

The first step is daily inspection, which can precisely monitor the temperature balance of the three-phase windings through infrared temperature measurement, listen to the operating sound to identify any signs of loose core or local discharge at the initial stage, and record the environmental parameters to ensure proper ventilation and heat dissipation.

Annual power outage maintenance is something that every customer should perform. This is the core maintenance action, including thoroughly cleaning the dust from the windings and air ducts of the JBK3 power supply transformer using dry compressed air, quantitatively tightening all electrical connection points with calibrated torque wrenches to eliminate the risk of contact resistance, and measuring the resistance values between the windings and to ground using a 2500V insulation resistance tester. The decay trend of these values is a key indicator for evaluating insulation health.

The deep diagnosis every three to five years involves testing the DC resistance of the windings (with the same imbalance rate needing to be ≤ 2%) to determine the internal connection integrity and conducting a core-to-ground insulation test to prevent overheating caused by multiple-point grounding.

In summary, the key to customers maintaining the JBK3 power supply transformer lies in ensuring the cleanliness inside and outside the transformer, and continuously monitoring the temperature and insulation status.

FAQ

Q: What is a power transformer?

A: A power transformer is a device that transfers electrical energy between two or more circuits through electromagnetic induction.

Q: How does a JBK3 power supply transformer work?

A: JBK3 power supply transformers work on the principle of Faraday’s law of electromagnetic induction, where alternating current in the primary coil induces a voltage in the secondary coil.

Q: What is the difference between a power transformer and an isolation transformer?

A: An isolation transformer provides electrical isolation between circuits, whereas a power transformer is designed to transfer power between circuits with different voltages.

Q: Can JBK3 power supply transformers work with DC?

A: No, traditional transformers cannot work with direct current (DC) because they rely on changing magnetic fields to induce voltage, which only occurs with alternating current (AC).
