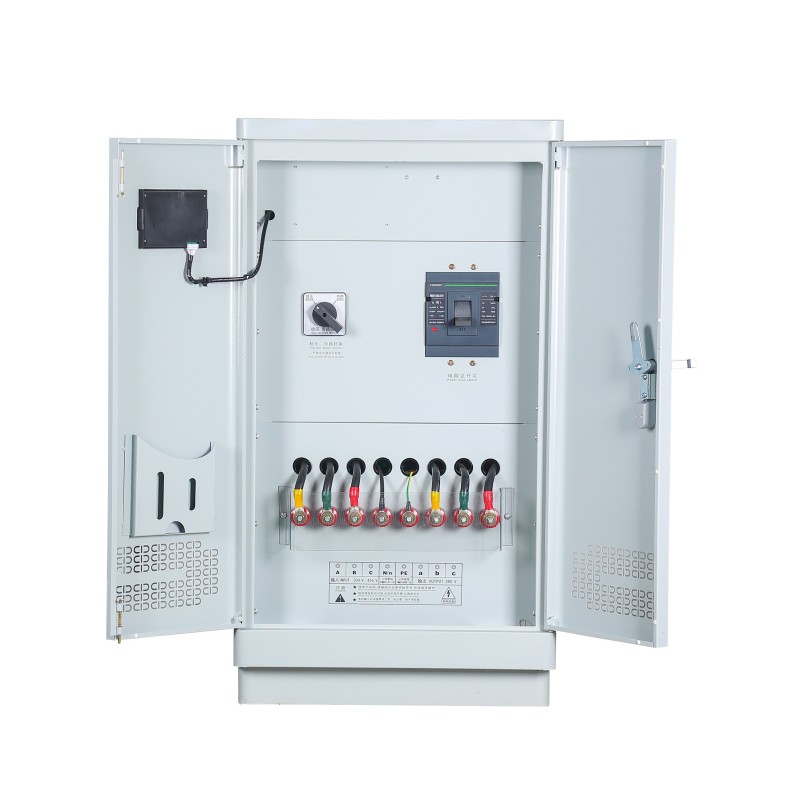

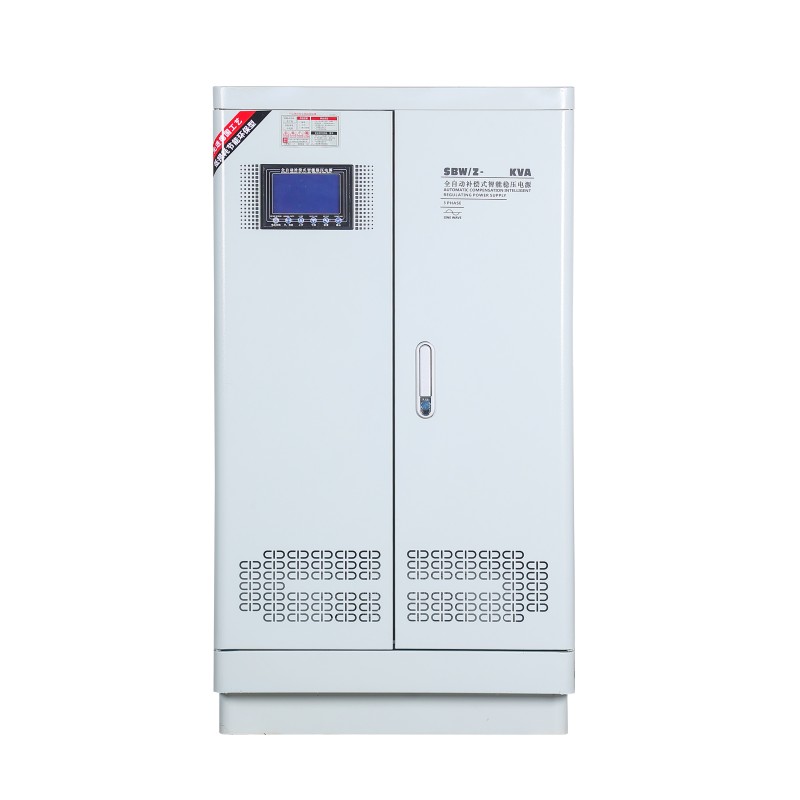

SBW Intelligent Servo Voltage Stabilizer

Yibaling is a professional factory in China, our SBW intelligent servo voltage stabilizer is a classic industrial-grade three-phase voltage stabilizing power supply that employs servo motor and carbon brush adjustment technology.
It uses high-precision circuits to continuously monitor the grid voltage and drives the servo motor to move the special carbon brushes smoothly along the winding of the ring-type auto-transformer, thereby continuously and steplessly adjusting the compensating voltage and achieving rapid and stable output voltage.
This product is centered around a sturdy mechanical structure, high-permeability silicon steel sheet core, and wear-resistant carbon brush material. It features a wide voltage stabilization range, strong load capacity, good overload performance, and easy maintenance.
Our SBW intelligent servo voltage stabilizer is particularly well-suited for handling impact loads such as motor startups. Its three-phase independent adjustment design can effectively correct grid imbalance and is a cost-effective and reliable solution for common voltage instability problems in traditional manufacturing, processing workshops, and large mechanical and electrical equipment applications.

Product Information

FAQ

Q: How does this SBW intelligent servo voltage stabilizer work?

A: The core principle of the SBW intelligent servo voltage stabilizer, in simple terms, is a sophisticated system where "eyes" (the internal voltage detection circuit), "brain" (the digital control chip), and "hands" (the servo motor) work together in coordination.
Firstly, the "eyes" (the internal voltage detection circuit) constantly monitor the output voltage. When it detects a deviation, it immediately transmits the signal to the "brain" (the digital control chip).
Then, the "brain" quickly calculates and determines how much voltage needs to be compensated, and immediately gives an instruction to the "hands" (the servo motor).
Finally, the "hands" drive a carbon brush to smoothly and continuously slide on the ring-shaped autotransformer coil specially made by Yibaling. Wherever the carbon brush stops, that much compensatory voltage is connected. The entire process is stepless and linear, unlike the old-style relays that "click" and "click" when changing gears, so the output waveform is very clean, a pure sine wave, and does not generate additional harmonic interference to the equipment.

Q: How is this SBW intelligent servo voltage stabilizer different from the previous ordinary servo voltage regulators?

A: The differences are significant, mainly in the core and interaction.
You can imagine the old-fashioned ordinary voltage regulator as an experienced but taciturn old fitter. He can do the job well (keep the voltage stable), but if you ask him, "What is the current now?" "What's the internal state of the machine?" He can't explain clearly. You have to measure it with a multimeter.

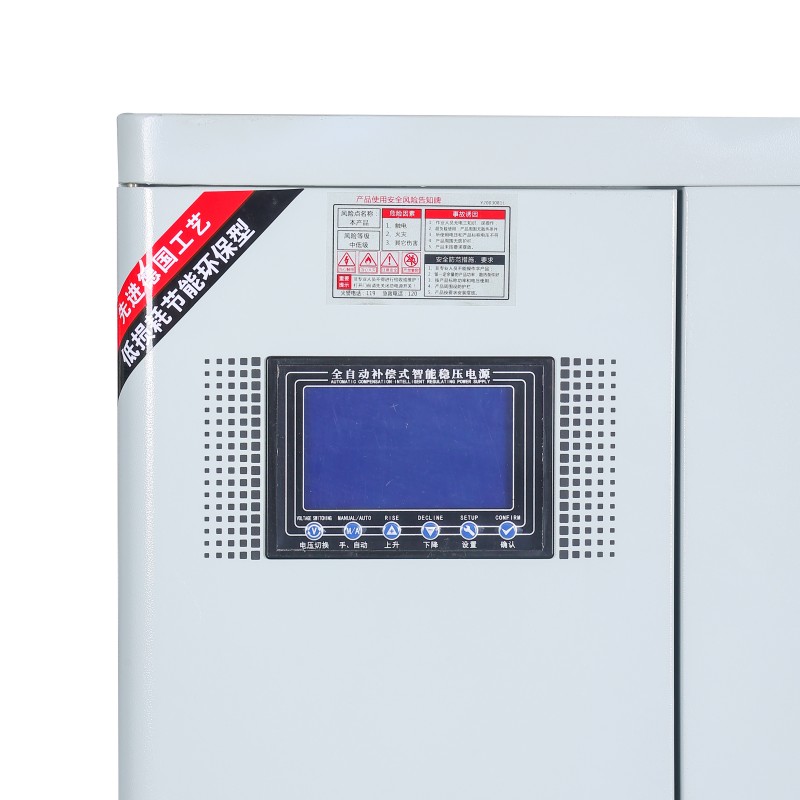

But the current SBW intelligent servo voltage stabilizer is like giving this old fitter an all-round intelligent assistant. It can fully display the operation of the machine to you.

Q: Are there any differences between intelligent servo motors and ordinary ones?

A: Yes, intelligent servo motors usually come with a closed-loop control high-precision servo system.

Ordinary servo motors are mostly open-loop or simple closed-loop, mainly executing the move to position command. However, the servo driver paired with the intelligent type can conduct high-speed data exchange with the main control DSP, achieving precise closed-loop control of speed, position, and torque. This makes the carbon brush movement smoother, positioning more accurate, response faster, and especially when dealing with rapidly fluctuating voltages, the voltage stabilization effect is more delicate and mechanical wear is less.

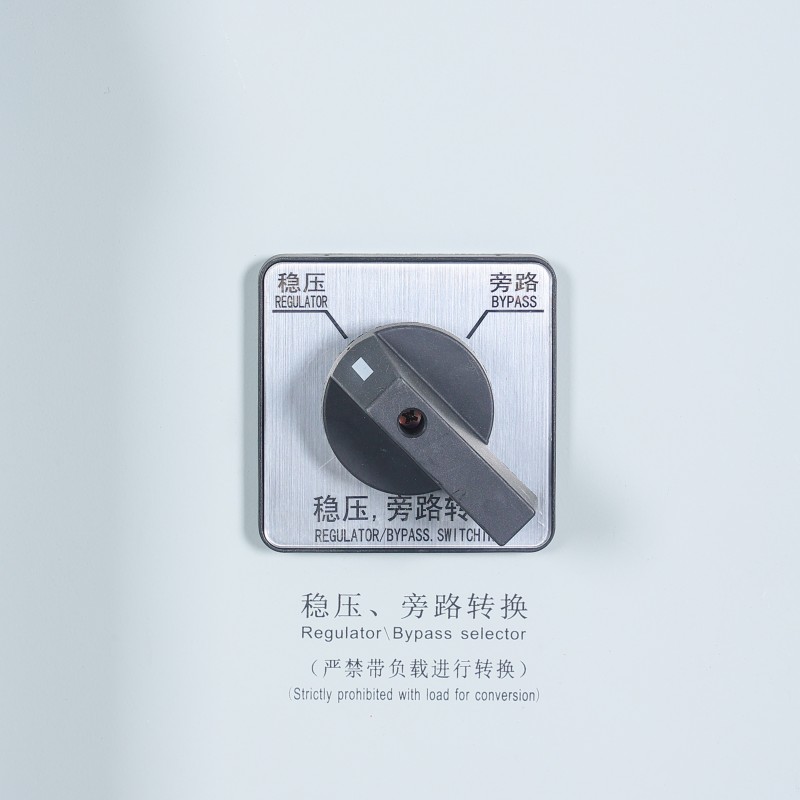

Q：What is the purpose of the "Automatic Bypass" function of the SBW intelligent servo voltage stabilizer? Will the power supply be affected during the switching process?

A：This function is a crucial guarantee for system reliability, as it ensures uninterrupted power supply during faults or maintenance.
Core function: When a fault occurs inside the voltage stabilizer (such as control board malfunction or servo system jamming) or preventive maintenance is required, the system will automatically or manually switch the load to the bypass channel, allowing the mains power to supply directly. This prevents production interruption caused by issues with the SBW intelligent servo voltage stabilizer itself.
Switching impact: High-quality design enables millisecond-level switching (typically <20ms). For the vast majority of industrial equipment (such as motors, PLCs, heating devices), this brief switching time is within their power retention capability, and will not cause equipment shutdown or reset. The Automatic Bypass function of the voltage stabilizer essentially provides a safe emergency channel.
