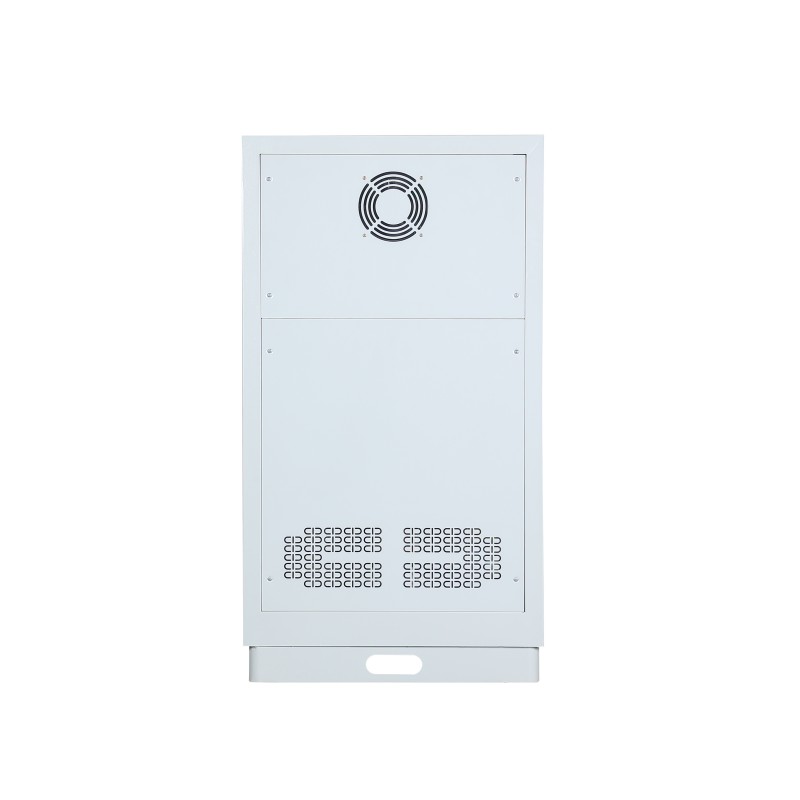

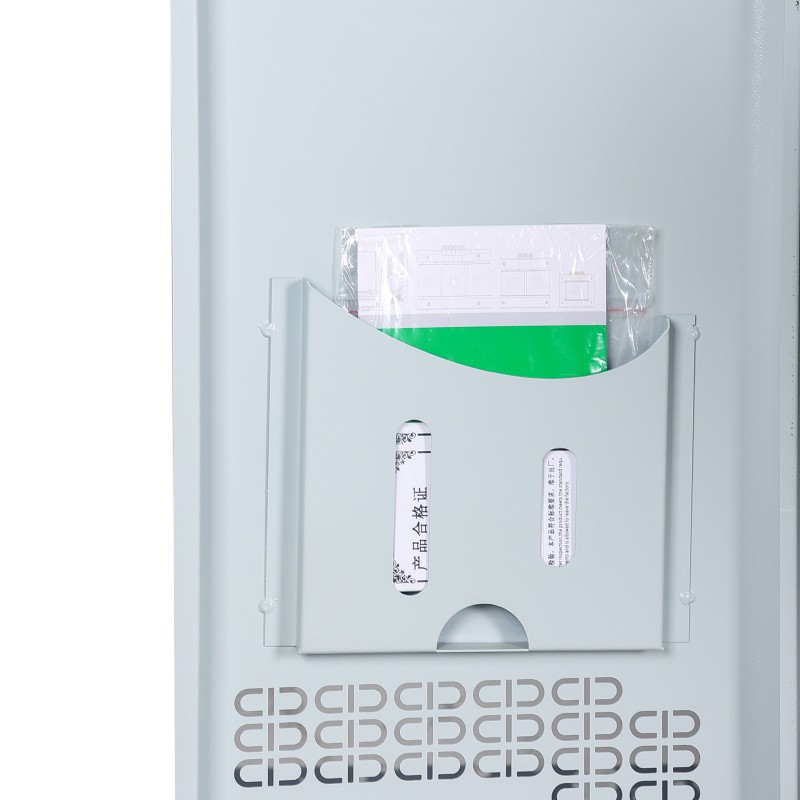

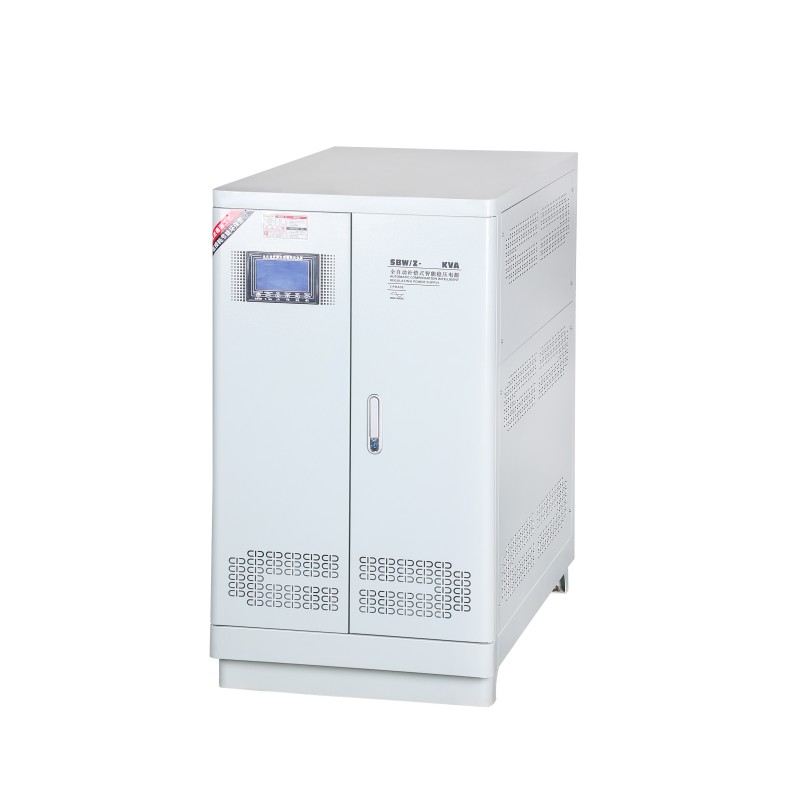

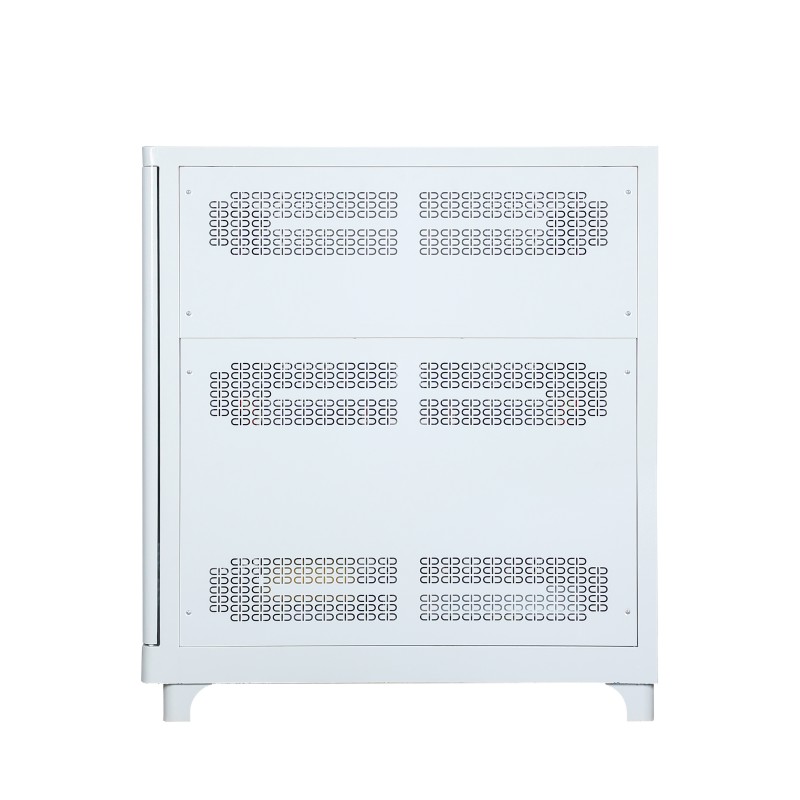

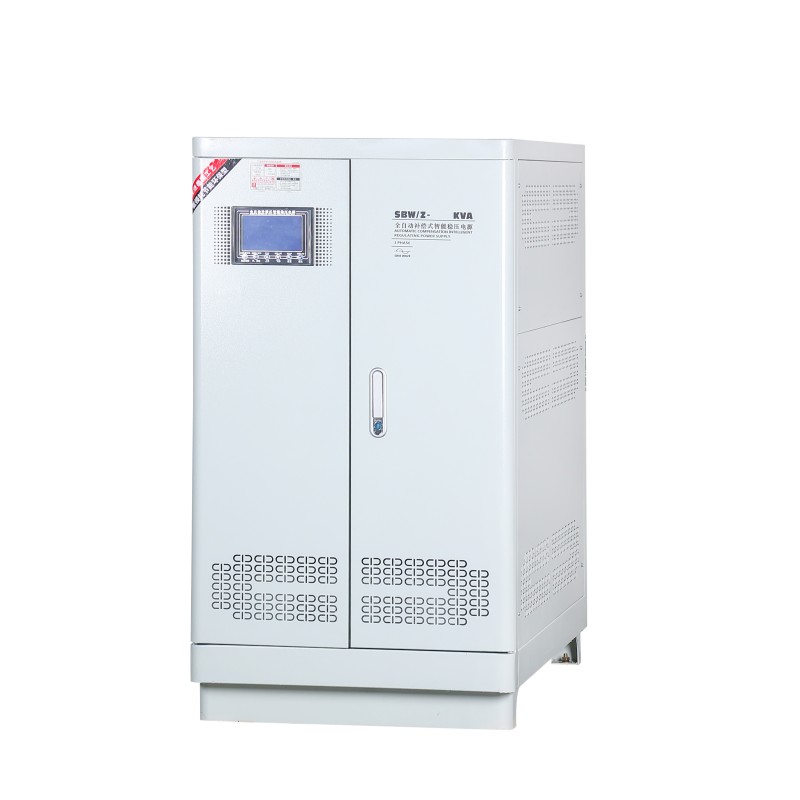

SBW Servo Voltage Stabilizer

The SBW Servo Voltage Stabilizer is the precise voltage corrector of industrial power systems. The core principle is based on the classic electromechanical servo structure - by continuously monitoring the output voltage, it drives the precise servo motor to smoothly move the carbon brush on the auto-transformer winding, achieving stepless and linear voltage compensation.
This working principle endows it with three core advantages: the output is a pure sine wave, and no harmonic pollution is generated. At the same time, the voltage regulator also has extremely strong shock resistance, capable of easily withstanding instantaneous large current impacts such as motor startup; the structure is reliable, maintenance is simple, and the average downtime is long.

The SBW servo voltage regulator has the function of independent three-phase adjustment, which can effectively solve the problem of three-phase imbalance in the power grid. At the same time, the new generation of intelligent models integrates digital control, status monitoring and communication interfaces, while retaining the classic reliability, achieving intelligent upgrade.
As an enduring industrial-grade piece of equipment, this product is widely used in factories, mines, laboratories and other scenarios with severe voltage fluctuations and complex load properties (such as motors and welding machines being the majority), and is the power cornerstone for ensuring the stable operation of key equipment.

The Customization of SBW Servo Voltage Stabilizer

1. Confirm the core information

Input/output voltage: rated value and fluctuation range (e.g., input 380V ±25%, output should be stable at 380V ±1%).

Load characteristics: load type (motor group, furnace, precision instrument, etc.), total power, startup method and power of each single motor (calculating impact current).

Special environment: installation location (indoor/outdoor), altitude, environmental temperature, humidity, whether there is a lot of dust, corrosive gas or risk of flammability and explosiveness.

Basic functions: voltage stabilization accuracy (±1%, ±0.5%), response speed, efficiency requirements.

Special functions: whether three-phase independent adjustment is required, bypass function (manual/automatic)

2. Scheme confirmation

According to your requirements, we will issue a detailed "SBW Servo Voltage Stabilizer technical scheme confirmation letter", the core content includes:

Electrical schematic diagram and assembly drawing: clearly showing the internal layout, interfaces and dimensions.

List of core components specifications:

Compensation transformer: core material (such as high-quality silicon steel sheet), winding material (oxygen-free copper), insulation grade.

Servo system: brand and specifications of the motor and driver, accuracy grade.

Control core: model and type of DSP/PLC, sampling speed.

Protective devices: brands and specifications of circuit breakers, contactors, etc.

Performance commitment: clearly marking key indicators such as voltage stabilization accuracy, response time, overload capacity, efficiency, etc.

3. Customized production

After the contract is signed, enter the core manufacturing stage, key processes include:

Manufacturing: use high-quality silicon steel sheets and oxygen-free copper wires for winding, and undergo vacuum impregnation (VPI) treatment to ensure insulation, moisture-proof and heat dissipation.

Mechanical structure processing: cabinet sheet metal, welding, painting. Precise installation and debugging of servo rails and transmission mechanisms.

Electrical assembly and wiring: standard assembly of main circuit and control circuit, ensuring standard wiring and reliability.

Program burning and debugging of the control system: based on the customized functions, write in dedicated control algorithms and conduct preliminary debugging.

FAQ

Q: Why is the SBW Servo Voltage Stabilizer particularly suitable for powering motors? Can it solve the problem of motor startup?

Anti-startup shock: The starting current of the motor can reach 5-7 times the rated value. The electromagnetic power components can easily withstand this shock without tripping or damaging like the electronic voltage regulator due to overcurrent protection.

Provide startup voltage rise: At the moment of motor startup, it can quickly compensate for the line voltage drop caused by the large current, providing sufficient terminal voltage for the motor and ensuring its smooth startup.

Stable operating voltage: Continuous voltage regulation during operation, avoiding voltage fluctuations that cause the motor to overheat or have insufficient torque.

Q: What is the use of the "three-phase independent adjustment" function of the SBW Servo Voltage Stabilizer? When is it needed?

A: This is a necessary function to solve three-phase voltage imbalance.

Function: The voltage regulation systems of phases A, B, and C operate independently, compensating for the voltage of their respective phases. Even if the input of three phases is severely unbalanced (such as a difference of more than 20V), the output can still maintain perfect balance.

Required scenarios: When your load contains single-phase devices (such as large single-phase furnaces, welding machines) or the distribution of single-phase loads is extremely uneven, severe imbalance will occur at the grid or transformer outlet. If the SBW Servo Voltage Stabilizer's division function is not used, some phases will have excessively high voltage causing equipment damage, while others will have insufficient voltage and be unable to operate. This function is crucial for CNC machines, precision machining centers, and server clusters.
