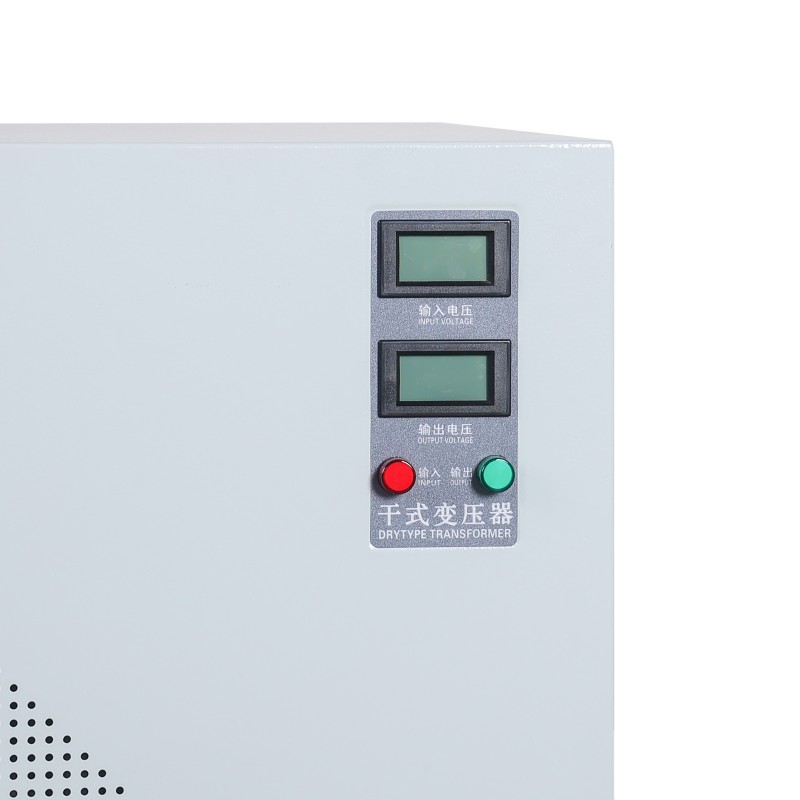

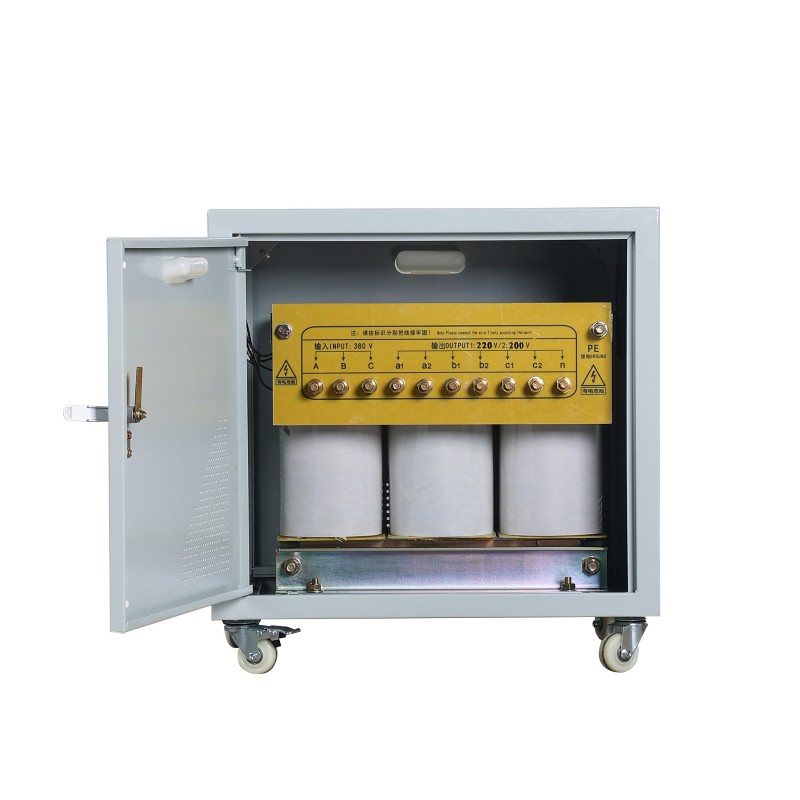

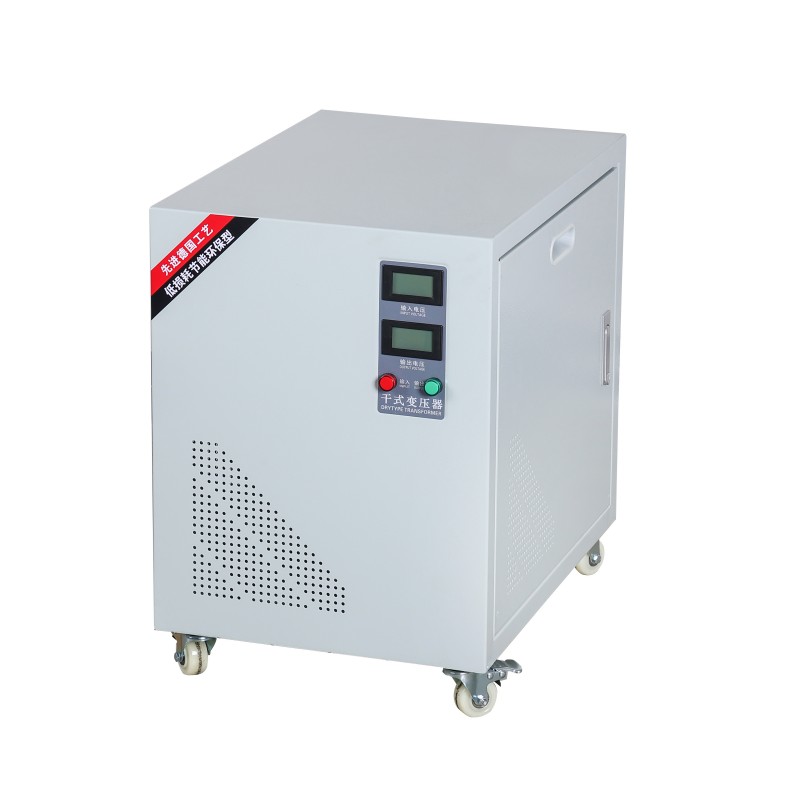

SG Power Transformer

Yibaling Company is a professional manufacturer and supplier, has over twenty years of experience in selling SG power transformers. During this period, we have continuously improved our transformers in response to the new requirements put forward by customers. Now, the products produced by our Yibaling factory are constantly receiving positive feedback from customers. We sincerely invite you to come to our Yibaling factory to order.

Send Inquiry

Product Description

SG power transformers are the backbone equipment in modern power grids, responsible for long-distance power transmission and local power distribution. You can rest assured to buy this product from Yibaling, a factory in China.

The operation of this product involves two steps:

The first step is at power plants or step-up stations, where transformers increase the 10kV-20kV voltage generated by generators to ultra-high levels such as 110kV, 220kV, or even 500kV, in order to enable the electricity to travel long distances with minimal loss.

The second step is at substations and distribution centers on the outskirts of cities, where transformers gradually reduce the ultra-high voltage to 10kV, 0.4kV (380V), and finally deliver it to factories, communities, and households.

To achieve this high-power and long-life reliable operation, our products have a distinct industrial orientation in design: For large-capacity SG power transformers, forced air cooling (ANAF) is usually equipped.

What is the difference between an SG power transformer and an isolation transformer?

Characteristics	SG Power Transformer	Isolation Transformer
Primary Task	Efficiently change voltage levels to transmit electrical energy. Strive for minimal loss and maximum efficiency during the transmission process.	Achieve electrical isolation on the circuit. Pursue the establishment of a high insulation strength safety barrier between the power supply end and the load end.
Structural Principle	It can be of the auto-coupling type (where the winding parts are shared, resulting in lower cost) or the double-winding type. The main functions are boosting and reducing voltage.	It must be of the double-winding type. The primary and secondary windings are electrically completely independent and are only coupled through the magnetic field.
Energy transmission	Transmit energy directly, focusing on power capacity (kVA/MVA).	While transmitting energy, interrupt the direct conduction of the circuit.

In summary, the SG power transformer is like the main roads and interchanges of a highway, responsible for transporting goods (electricity) in large quantities and efficiently from one area to another, and converting it to the appropriate "lanes" (voltage levels).

While the isolation transformer is like a bulletproof armored vehicle and security gate for valuable items, the primary task of the isolation transformer is not to run the fastest, but to ensure the absolute safety and purity of the goods during transportation, preventing external "robbery" (electric shock hazards) and "pollution" (power grid interference).

FAQ

Q: What are the differences between SG power transformers and ordinary distribution transformers?

A: The positioning of SG power transformers is for industrial and grid-level applications. The core difference lies in design standards and tolerance capabilities.

Ordinary distribution transformers mainly target relatively stable loads in civilian and commercial settings. SG power transformers are specifically designed for difficult-to-maintain scenarios such as factories and mines. They can withstand various stresses.

In workshops, there is high temperature, dampness, and dust, so the insulation, anti-corrosion and heat dissipation systems must be designed to stricter standards to ensure stable operation over the long term.

Q: Should I choose oil-immersed or dry-type SG power transformers?

A: This is the most basic decision in selection, and it depends on the priority of "installation environment, safety and maintenance":

Type	SG Oil-immersed Transformer	SG Power Transformer
Insulation/Cooling Medium	Mineral Oil	Epoxy Resin/Air (Vacuum Casting)
Main Advantages	Excellent heat dissipation, strong overload capacity, low cost, highly mature technology, and large capacity can be achieved.	No risk of fire or explosion, no need for oil pits or oil collection pools, no maintenance required, more environmentally friendly, and can be directly installed at the load center.
Application scenarios	Outdoor substations, independent distribution rooms, and locations with specific fire prevention isolation measures.	Indoor areas (such as high-rise buildings, subways, tunnels, shopping malls, data centers), and other places with extremely high fire safety requirements in chemical plants, etc.
Maintenance Points	Regularly check the oil level, oil temperature, and oil quality. There is a potential risk of oil leakage.	Basic maintenance-free. Only regular cleaning and inspection of fasteners are required.

Q: What do the "energy efficiency grades" (such as Grade 1 and Grade 2) of SG power transformers mean? How to choose?

A: The energy efficiency grades are divided based on national standards (such as GB 20052) for the no-load and load losses of SG power transformers. The higher the grade (Grade 1 being the best), the lower the losses.
Choosing a higher energy efficiency grade means lower long-term operating electricity costs, but the initial purchase price is also higher.

A simple investment return analysis is needed. Calculate the annual electricity savings of the higher energy efficiency model and see the payback period of the difference between its initial price.

For scenarios with 24-hour continuous operation (such as mines, data centers) or high load rates, choosing the SG power transformer with Grade 1 energy efficiency is often more economical.

For scenarios with only a few hours of operation per day and low load rates, the Grade 2 energy efficiency may be more cost-effective.
