JMB Lighting Control Transformer

The JMB lighting control transformer operates in an AC circuit with a frequency of 50-60Hz. It is widely used in the control power supply of general circuits in the electronics industry or industrial and mining enterprises, machine tools and mechanical equipment, as well as for safety lighting and indicator lights.

The coils are made of high-quality copper wire with high temperature resistance, which enables them to have higher working efficiency.

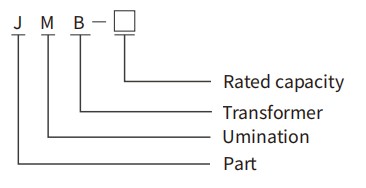

Model and Its Meanings

Product Features

The advantages of JMB lighting control transformers

How does the JMB lighting control transformer ensure safety?

The key lies in the turns ratio of the coils inside the transformer. A simple calculation shows that if the input is 220V and a safe voltage of 12V is desired, the turns ratio of the primary and secondary coils should be approximately 18.3 to 1.

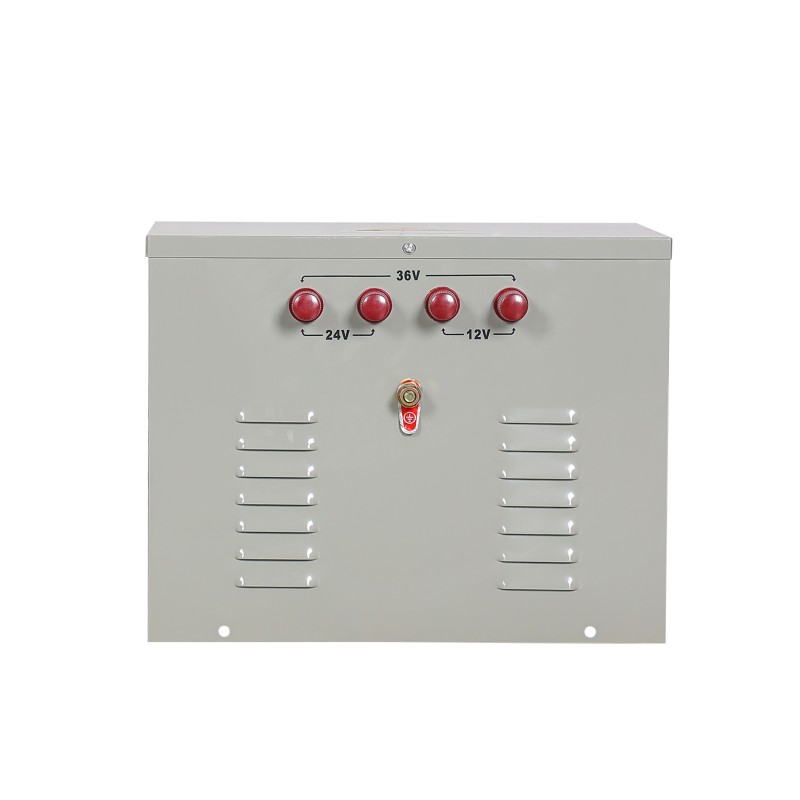

Through this precise electromagnetic conversion, the transformer can transform the dangerous mains voltage into absolutely safe extra-low voltages of 12V, 24V or 36V. In damp factory floors, near metal equipment or in inspection wells, even if someone accidentally touches the wires, the current flowing through the body is extremely small, eliminating the risk of electric shock from a physical principle perspective.

The stability is ensured by the "core" and "winding method". We use toroidal or EI-shaped cores with very low leakage flux, and with a reasonable winding arrangement, it can keep the output voltage fluctuation within 5% when the grid voltage fluctuates by 15%.

This specification is crucial for lamps, especially the current mainstream LED lamps - too high a voltage and the lamp beads will burn out instantly; a consistently low voltage will cause the lamp to flicker and the light to dim. With the support, the lifespan of the lamp is naturally prolonged.

The JMB lighting control transformer also has an invisible ability: anti-interference. The coils themselves act like a natural "filter", absorbing a large portion of the sudden voltage spikes and surges from the grid. This provides a clean and stable "food supply" for the delicate LED driver power supply or electronic ballast behind it, ensuring that the light does not flicker and there is no current noise.

When it comes to installation, we have designed wall mounting holes and hanging holes for the JMB lighting control transformer. It can be securely fixed with just a few screws on the side of the distribution box or on the equipment rack.

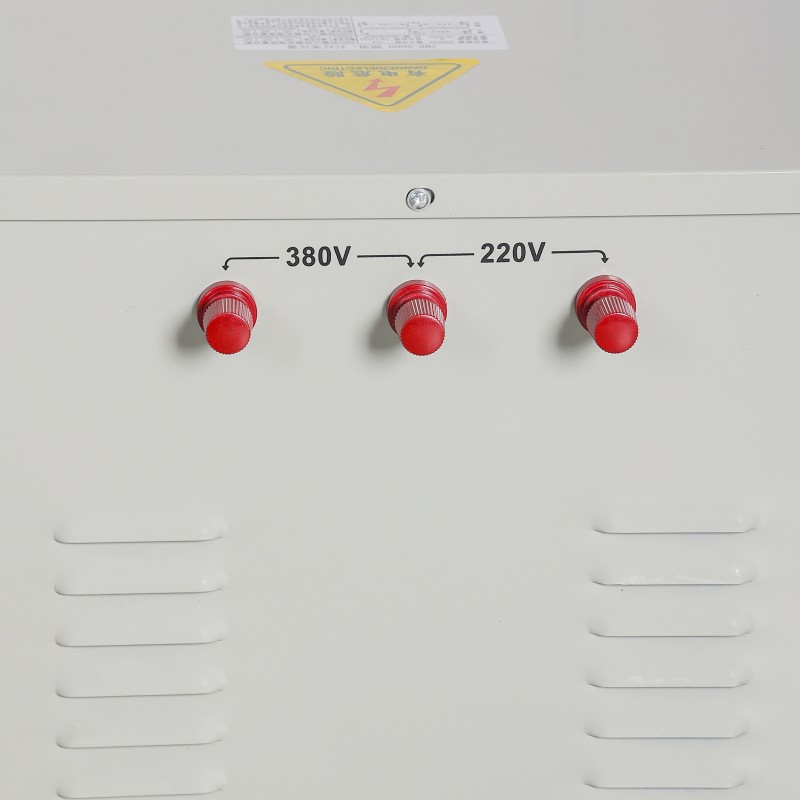

The terminals on both sides use spring or screw compression types, allowing even thick working cables to be connected reliably and conveniently. The board also has a clear wiring diagram printed on it, which an electrician can understand at a glance and connect properly in just a few minutes, saving time and avoiding mistakes.

Application Scope

The application scope of JMB lighting control transformers is highly focused on low-voltage lighting scenarios that have strict requirements for personal safety, power supply stability, and environmental adaptability. The core value lies in providing intrinsically safe special low voltage (SELV) for hazardous environments. They mainly cover five categories of places:

Industrial manufacturing and equipment maintenance sites, such as factory workshops, underground mines, ship engine rooms, and equipment interiors. These places are filled with metal conductors and have humid environments. The 12V/24V/36V safe voltage provided by JMB lighting control transformers can fundamentally prevent electric shock, and their sturdy structure and anti-interference characteristics also adapt to oil stains, vibrations, and power grid fluctuations.

Construction sites and municipal operation areas, including construction sites, tunnels, and manholes in harsh or temporary environments. Here, JMB lighting control transformers not only meet safety regulations, but also their protective enclosures and multiple output interfaces can better meet the flexible needs of teams moving around and operating multiple lights simultaneously.

Damp and hazardous areas in commercial and public spaces, such as supermarkets, cold storage facilities, hotel kitchens, and areas around swimming pools. National electrical regulations mandate the use of safe voltages in such places, and JMB lighting control transformers are mandatory equipment for compliance, ensuring that electric shock accidents caused by dampness are avoided.

In the fields of stage and film production, as well as professional display, JMB lighting control transformers are used for stage floor lights, display cabinet lighting, etc. JMB lighting control transformers ensure the safety of performers and staff while maintaining stable and clean power output, ensuring that the lighting effect is without flickering or interference.

In transportation and large equipment interiors, such as locomotive maintenance depots and maintenance channels in automated warehouses. In electrostatic potential environments, JMB lighting control transformers are the final reliable defense against electric shock and can withstand certain operating vibrations.

In summary, JMB control lighting transformers are regulatory and engineering solutions for damp, conductive, restricted spaces, or mobile lighting scenarios. Their essence is to convert dangerous mains electricity into safe, reliable, and pure low-voltage power, and they are the core equipment for ensuring work safety and lighting quality.
