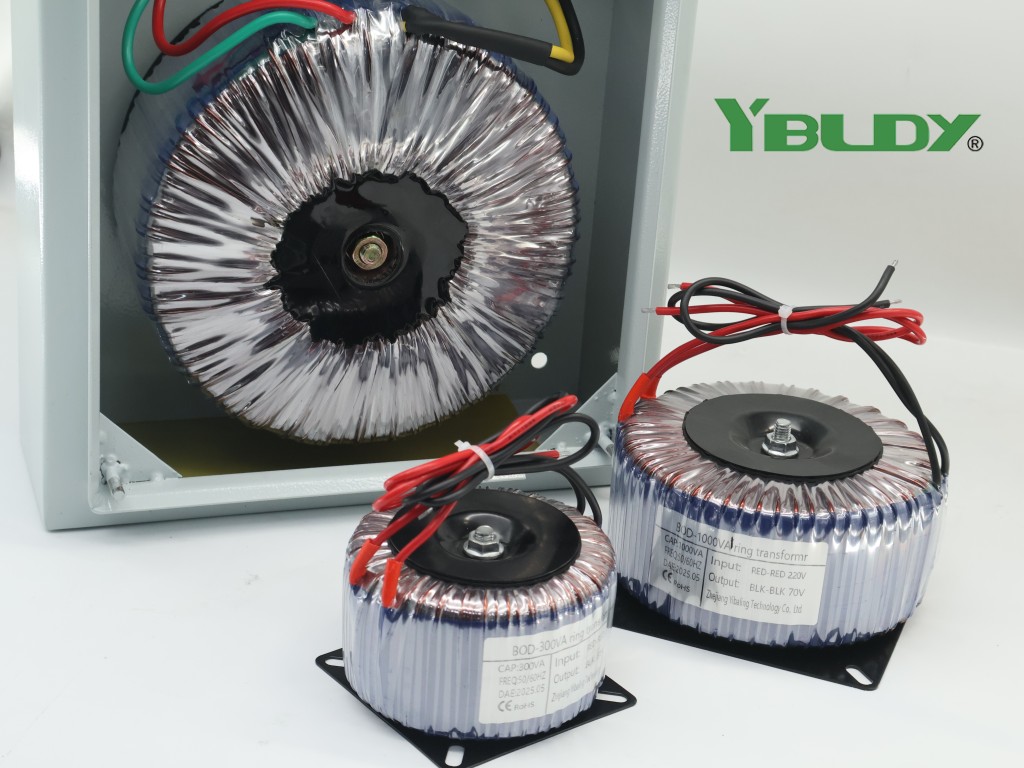

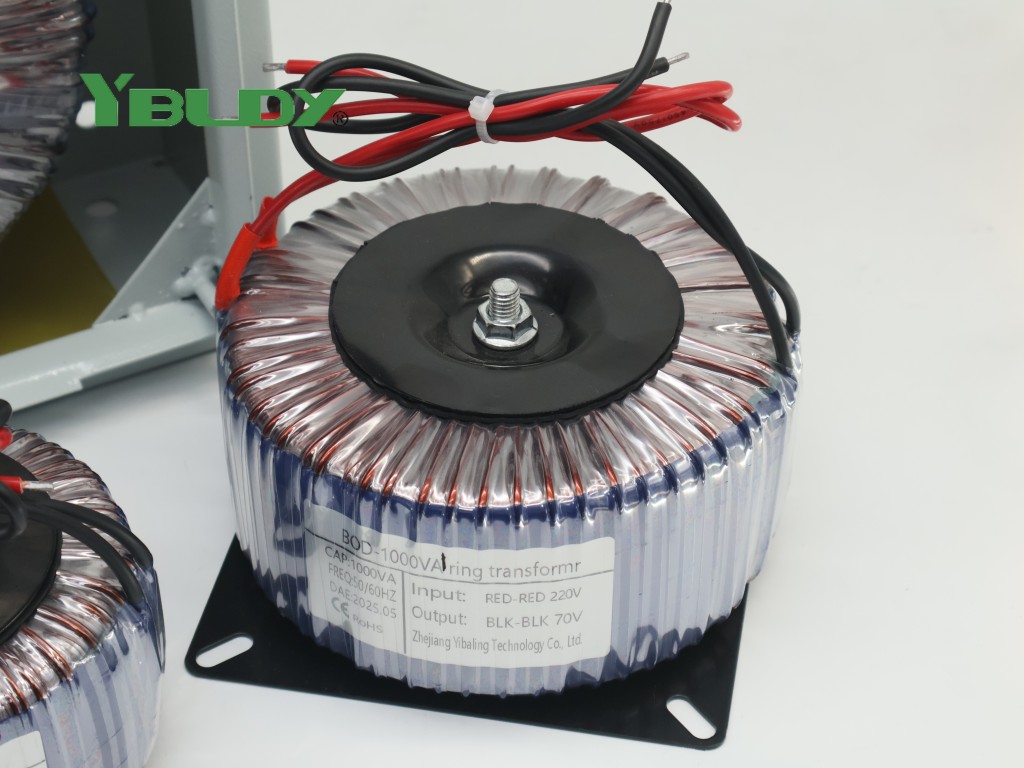

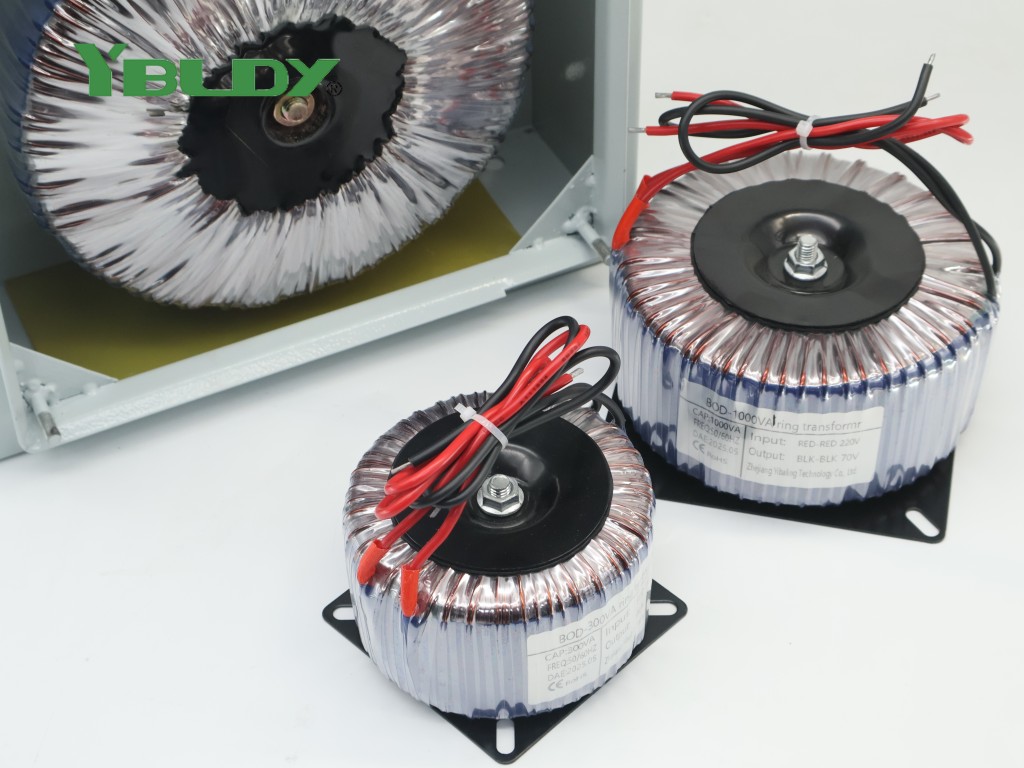

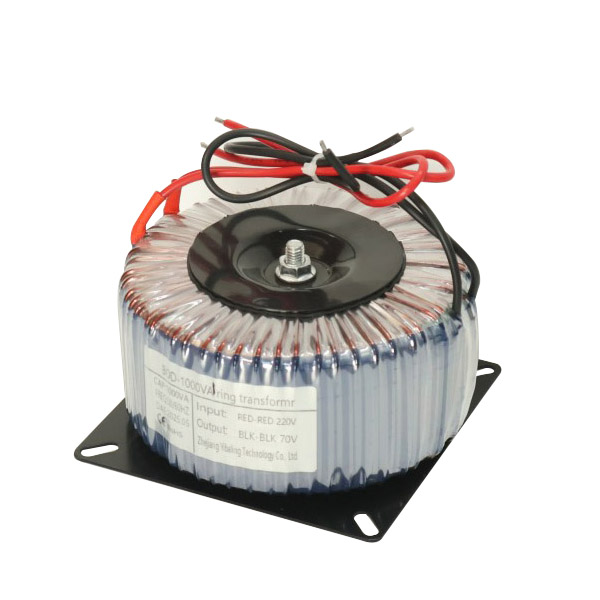

Toroidal Transformer

The toroidal transformer is one of Yibaling's products, we are a reliable manufacturer in China. This product gets its name because its core is made of continuous-wound, seamless ring-shaped silicon steel sheets. It is the preferred solution in modern power supply design for achieving high efficiency, low noise, and small size.

Product Structure

The toroidal transformer is like a "doughnut" shaped energy loop. This unique structure makes its magnetic circuit closed and has extremely low magnetic resistance, bringing three core advantages:

1. High Efficiency

With the magnetic flux direction perfectly aligned with the grain orientation of the silicon steel sheets, resulting in significant reduction of no-load loss and copper loss, and full-load efficiency easily exceeding 95%.

2. Low Electromagnetic Interference

It has negligible leakage flux and will not interfere with surrounding precision circuits, especially suitable for high-fidelity audio (Hi-Fi) and precision instruments.

3. Small Size and Low Weight

Its volume and weight being approximately 30% less than traditional EI-type transformers under the same power, making it easier to integrate.
Due to these characteristics, toroidal transformers have become the core power components for high-end audio amplifiers, medical equipment, industrial control modules, and various demanding laboratory-level and consumer-grade electronic products.

The Function of Toroidal Transformer

The toroidal transformer is a high-performance solution in the modern power electronics field that optimizes the three core indicators of efficiency, purity and compactness to the utmost.
All the outstanding characteristics of the toroidal transformer stem from a fundamental physical design: a seamless closed iron core wound with high magnetic permeability silicon steel strips.
This structure forms an ideal magnetic path with extremely low magnetic resistance, reducing no-load loss and excitation current to less than one-tenth of that of traditional iron cores with seams, laying the foundation for the ultra-high efficiency (typically > 95%) and low temperature rise of the toroidal transformer.
At the same time, the magnetic flux completely confined within the toroid ensures that the leakage magnetic radiation is nearly zero, making it an ideal "silent" power supply for high-fidelity audio systems, precision measuring instruments, and sensitive electronic equipment, fundamentally eliminating electromagnetic interference.
Furthermore, the uniform and compact windings and the optimal magnetic path result in higher power density, allowing the toroidal transformer to significantly reduce its volume and weight by approximately 30% at the same power level, and operate with almost no vibration or noise.
Therefore, the toroidal transformer is not a universal component. The toroidal transformer is a strategic power component tailored for high-end audio amplifiers, medical imaging equipment, precision industrial control, and any system with strict requirements for electrical quality, space layout, and thermal management.

Application Fields

The toroidal transformer, with its core advantages of high efficiency, low interference, small size, and quiet operation, is mainly applied in the mid-to-high-end fields that have strict requirements for power quality, space layout, or electromagnetic environment, rather than in ordinary general situations. The typical application fields are as follows:

1. Consumer electronics and audio field

This is the most classic and well-known application scenario.
High-fidelity audio equipment: In Hi-Fi amplifiers, high-end audio systems, and professional recording equipment, the toroidal transformer is the cornerstone of good sound foundation. Its extremely low leakage magnetic field and electromagnetic interference can ensure a pure background of audio signals without hum or noise; the rapid energy response provides abundant dynamics and transient performance for music.
High-end audio and gaming equipment: Some top-level Blu-ray players, AV amplifiers, and game consoles' power supplies will adopt toroidal transformers to pursue more stable performance and lower background noise.

2. Industrial control and automation

In the industrial field, the toroidal transformer serves core components with extremely high reliability and stability requirements.
Precision industrial equipment: For power supplies of high-end numerical control systems, servo drives, robot controllers, and precision measuring instruments (such as laser interferometers). Its low interference characteristic ensures that control signals are not contaminated, and high reliability guarantees continuous production.
Critical process control: In industrial PLCs, distributed IO systems, safety barriers, etc., critical control nodes provide stable, clean isolated power supply to prevent grid interference from causing false actions.

3. Instruments and professional equipment

This is the direct value manifestation of the electromagnetic purity characteristic of the toroidal transformer.
Scientific measurement instruments: Supply power to laboratory-level power supplies, oscilloscopes, spectrum analyzers, medical detection equipment. The extremely low noise ensures the high precision and sensitivity of the instruments, avoiding power pollution of the measurement results.
Medical imaging equipment: Often used in high-end ultrasound equipment, dental X-ray machines, patient monitors, etc., for medical equipment with strict electromagnetic compatibility requirements, to ensure image quality and operational safety.

4. Specialized customization and high-end commercial equipment

In fields that require special performance or design, the toroidal transformer is the first choice.
LED display and stage lighting: In high-end LED display driver power supplies, professional dimming platforms, the compact volume and low heat generation help achieve high-density, high-reliability system integration.
Customized power supplies: Widely used in high-end server power module, broadcasting communication equipment, aerospace testing equipment, etc., in fields that require customized, high-power density solutions.
