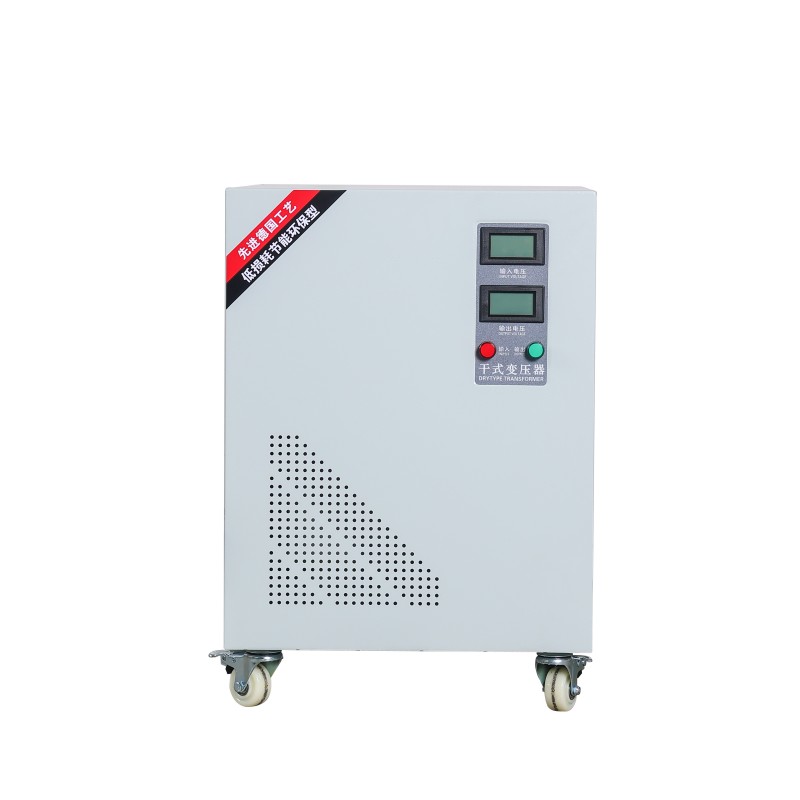

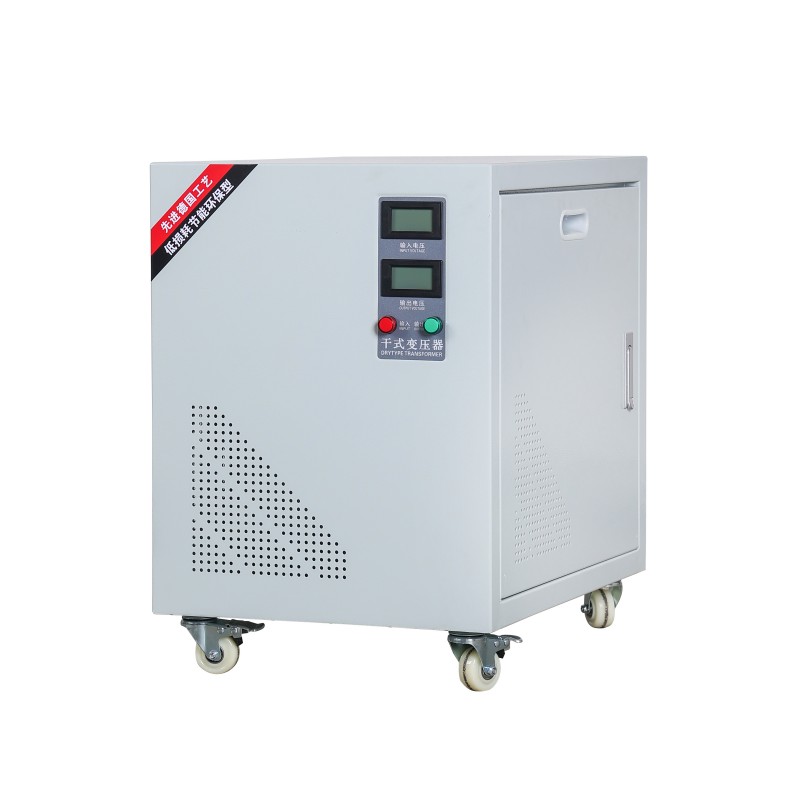

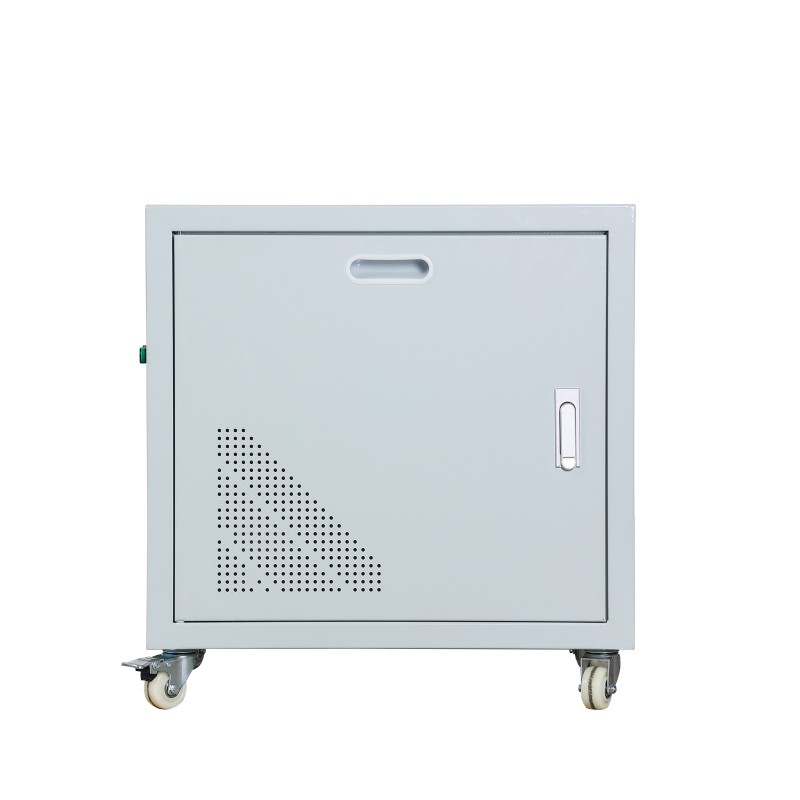

SG Low Voltage Transformer

The SG low voltage transformer, in simple terms, is a master at providing matching power supply for equipment. Choose Yibaling as your supplier, get high quality solutions of the products.

It can handle long-distance power transmission, but it operates at the final stage of power usage, reliably converting common voltages such as 380V and 220V into the food electricity that the equipment truly needs, such as precise 110V, 24V, or safe 36V.

The value lies in its precision, thus, this transformer can be used for:

PLCs and robots in factories, which need clean electricity to operate precisely.

Imaging equipment in hospitals, it cannot do without extremely low leakage current safe electricity.

Lighting and audio equipment on stages, and precision instruments in laboratories, all rely on the SG low voltage transformer to isolate the interference from the power grid.

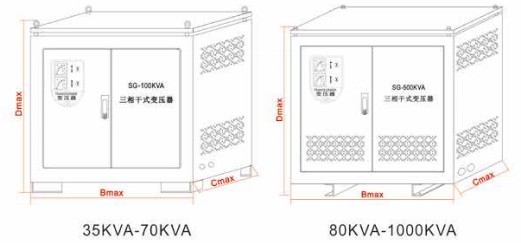

Shape and installation dimensions

Applications and Functions

The SG low voltage transformer is the core component that addresses the three major pain points in industrial sites: power matching, noise isolation, and safe power supply.

1. Industrial Automation Field

It precisely converts the 380V busbar into 220V PLC power and 24V sensor power. The shielding layer design and anti-shock capability can effectively resist the grid pollution caused by the start-up and shutdown of frequency converters and large motors, ensuring that robots and CNC systems do not malfunction or experience positioning drift.

2. Special Application Environments Such as Ships and Mines

This transformer can also undertake the low-voltage boosting before the grid connection of photovoltaic systems (such as from 400V to 10kV), and with wide voltage input and high protection level (IP65), it can adapt to the strict requirements of charging piles and data center computer rooms.

In special environments, our product meets the absolute demands of ships, mining, and medical imaging equipment for corrosion resistance, explosion-proof, and patient safety through classification society certification, explosion-proof structure, and extremely low leakage current design.

3. Public Commercial Sector

The SG low voltage transformer is essentially performing the function of power protection. Whether it's the signal system in the subway, the dimming equipment on the stage, or the precise instruments in the laboratory, none of these can withstand the slightest disturbance or fluctuation in the power grid.

Besides converting voltage, what's more important is that through solid electromagnetic design and insulation technology, it painstakingly builds a barrier between the messy power grid and the equipment. It blocks all the messy interference and only allows clean and stable current to pass through.
