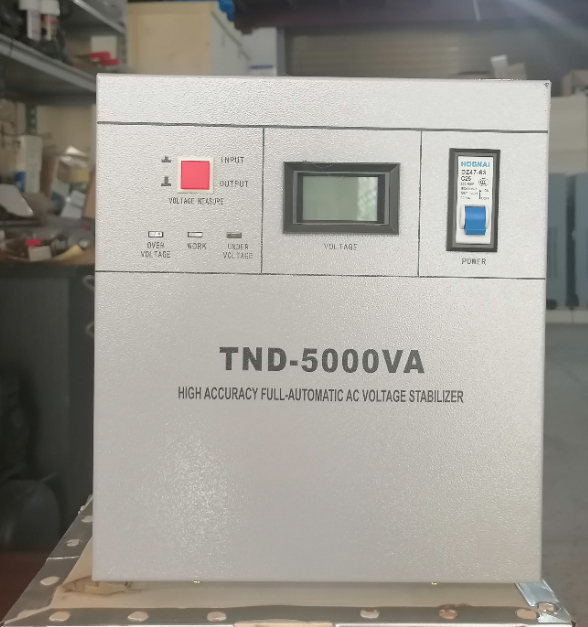

What is TND Single Phase AC Voltage Stabilizer？

Struggling with unstable voltage? This unit is your ideal solution

Many electrical appliances are sensitive to voltage fluctuations. A slight voltage drop can stop an air conditioner compressor from starting; a voltage surge may trigger immediate protection on computer power supplies. Especially during peak summer power usage, lights flicker, air conditioners run sluggishly, and owners of precision instruments or imported equipment live in constant worry.

The Yibaleng TND single-phase high-precision automatic AC voltage stabilizer is engineered to resolve exactly these issues.

How TND Single Phase AC Voltage Stabilizer Works: Three Straightforward Steps

The TND features a simple structure consisting of a contact-type autotransformer, a servo motor and an automatic control circuit, which work together efficiently.

Real-time voltage monitoring The control circuit continuously tracks the input voltage. Once the voltage fluctuates or the load changes, the system responds straight away — no delay.

The sampling circuits grab the voltage reading and pass it to the control module, which figures out the exact offset. All this happens in microseconds.

Then the control circuit kicks the servo motor into action. The motor moves the carbon brush to a new spot along the autotransformer winding. That changes the output voltage — pushes it up if it's low, pulls it down if it's high — until it locks in right at the rated value.

This whole thing runs in a loop: check it, figure it out, adjust it, check again. Even if the input swings by 10%, the system corrects it in under a second. Most appliances won't even notice the voltage dipped.

A few practical advantages that actually matter

It doesn't mess with the waveform.

Some regulators distort the sine wave. The TND doesn't. What comes out is identical to what went in — same shape, no extra junk. For medical equipment and lab instruments, that's a big deal.

It doesn't waste power.

Selfloss is low. Efficiency sits above 92%. So it works hard, but it doesn't eat up electricity while doing it.

Comprehensive multi-protection system Built-in automatic power cut-off for overvoltage, dedicated undervoltage, overcurrent and short-circuit protection. A short delay function prevents frequent unnecessary adjustments caused by transient grid spikes.

Wide input voltage range for strong adaptability Operates normally with input voltage ranging from 150V to 250V. It maintains steady output at 220V ±3% even under poor grid power conditions.

Where does TND Single Phase AC Voltage Stabilizer fit in?

Don't let the word "industrial" in the name put you off. It's useful in a lot more places than just factories:

At home – air conditioners, fridges, stereos, TVs. Especially in older neighbourhoods or rural areas where the grid is flaky. With this in place, your AC won't struggle to start up in the middle of summer.

In the office – computers, printers, copiers, testing gear. Voltage that jumps around can kill a computer out of nowhere. Stick this in front, and you sleep a lot better.

Medical equipment – some smaller medical devices are picky about their power. Put it in front, and the equipment behaves itself.

Industrial and R&D – CNC machines, industrial controls, lab instruments. None of these are cheap, and they all need steady power.

How to pick the right size

Choosing a TND is basically one step: add up the wattage of everything you're plugging in, then leave about 30% wiggle room.

You can usually find the wattage on the nameplate or in the manual. Add them up, then bump it up a bit – don't cut it too close.

Example: a PC at 350W, a monitor at 50W, a printer at 600W. That's about 1kW total. A 1.5kVA TND handles that fine, with room to spare.

Another example: a 1.5HP air conditioner (about 1.2kW), a fridge at 200W, a TV at 150W, plus a couple of lights. That adds up to roughly 1.6kW. In that case, go for a 2kVA or 3kVA unit so the AC doesn't struggle when it kicks in.

If you're not sure how to work it out, just send your equipment list to the Yibaling sales team – they'll sort it out for you.

Example 1

A computer (~300W), monitor (~50W) and laser printer (~600W) sum to under 1kW. A 1.5kVA TND stabilizer provides ample spare capacity.

Example 2

A 1.5HP air conditioner (~1.2kW), refrigerator (~200W), television (~150W) plus lighting totals roughly 1.6kW. A 2kVA or 3kVA unit is recommended to handle the heavy startup load of the air conditioner smoothly.

If you are unsure about capacity calculation, send your full equipment list to Yibaleng sales engineers for a professional sizing recommendation.

The TND is not an overcomplicated high-tech gadget — it is a reliable, no-frills voltage regulation device. It delivers consistent, practical performance. For anyone plagued by erratic power supply, installing this stabilizer means trouble-free appliances and complete peace of mind.
