Control Circuit Power Supply: Not Something to Cut Corners On

A CNC machine's ability to do its job depends on the spindle, the tooling, and the servos. But whether it runs reliably without errors often depends on the small, unassuming components—the PLCs, relays, contactors, and indicator lights.

The power supply for these control circuits is not something you can afford to compromise on.

The JBK3 series machine tool control transformer is purposebuilt to supply power to the control systems of machine tools and automation equipment. It doesn't drive the main spindle motor or power the cutting tools. Its job is to feed the machine's "brain"—keeping PLCs from glitching, contactors from chattering, and sensor data from drifting.

What Is the JBK3 Machine Tool Control Transformer?

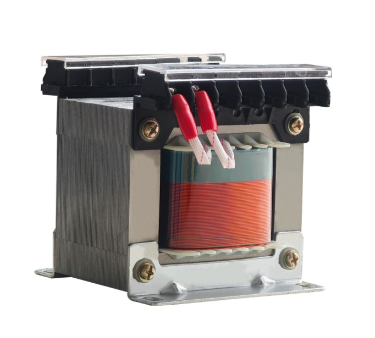

The JBK3 series machine tool control transformer is a singlephase drytype control transformer designed for AC 5060Hz circuits with input voltages not exceeding 660V. It steps down the main supply voltage to the levels that control systems actually need—most commonly 220V, 110V, 36V, 24V, 12V, and 6V.

It is not a power transformer. It doesn't handle high currents. Its job is to provide stable, clean power for the control circuits, local lighting, and signal lamps of machine tool electrical systems.

Capacities range from 40VA up to 2500VA—a small transformer that supports the stable operation of an entire control system.

How Is It Different from an Ordinary Transformer?

An ordinary transformer just "changes voltage"—whatever goes in, the voltage comes out differently. That's it.

The JBK3 is specifically designed for control circuits. The differences are:

Complete primarysecondary isolation: It's a true isolation transformer, not an autotransformer. Interference, surges, and leakage from the main circuit don't reach the control side.

Multiple output windings: One transformer can supply several voltages at once—220V for the PLC, 110V for contactors, 24V for indicator lights. All from one unit.

Compact design: Purposebuilt for control cabinet installation—doesn't take up valuable space.

Safe terminals: Crimptype and plugin connection options, with touchproof terminal covers.

Core Technology: Solid Materials, Sound Process

Core: Highquality lowloss coldrolled grainoriented silicon steel. Low losses, low noise, low temperature rise.

Windings: Pure copper conductors (aluminium available on request), rated for 180°C, withstand voltage of 2500V (relative to 5000V).

Insulation: Class H insulation materials, treated with vacuum impregnation (VPI) —moistureresistant, dustresistant, and vibrationresistant, significantly reducing insulation breakdown risks.

Standards compliance: Designed based on Siemens technology from the 1980s, the JBK3 meets VDE0551, IEC2041, IEC439, GB5226.1, and other international standards.

Where Is JBK3 Machine Tool Control Transformer Used?

The JBK3 is found in a wide range of applications:

Machine tools: CNC machines, machining centres, milling machines, grinders, drilling machines—any machine's control circuit power

Industrial machinery: Packaging equipment, injection moulding machines, textile machinery, printing presses

Industrial automation: PLC control systems, relay panels, contactor coils

Local lighting: Machine work lights, maintenance and inspection lighting

Signal indication: Equipment status indicators, alarm lights

Imported equipment: Precision machine tools, medical devices, instrumentation

In short: wherever machine tools and automation systems need control power, there's probably a JBK3 behind it.

How to Choose the Right One

Three things matter: capacity, voltage, and installation environment.

Step 1 — Determine the capacity

Add up the total power of all control components—contactor holding power, PLC consumption, indicator lights, sensors—then add 3050% safety margin. Don't size too tight: the inrush current when contactors close is significantly higher than the steadystate holding current.

Standard ratings: 40VA, 63VA, 100VA, 160VA, 250VA, 400VA, 630VA, 1000VA, 1600VA, 2500VA.

Step 2 — Specify voltages

Need a nonstandard voltage? Custom options are available.

Step 3 — Consider the installation environment

Final Thoughts

The JBK3 machine tool control transformer isn't hightech. It doesn't have a screen, doesn't connect to WiFi, doesn't make headlines.

What it does is simple and essential: it supplies clean, stable power to the control system.

For factories that have been wrestling with PLC glitches, contactor chatter, and unexplained machine shutdowns, the difference is immediate. The control circuit stabilises—and the machine stops acting up.

Control circuit power isn't something to cut corners on. Stable power means stable machines.
