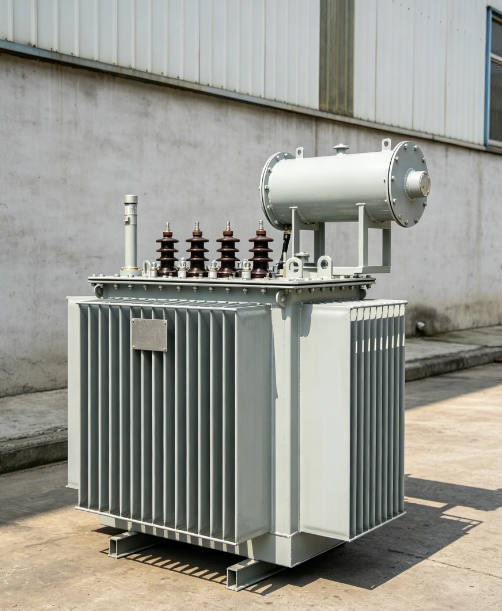

What Is an S11 Oil-Immersed Distribution Transformer and Why Is It Important?

The S11 oil-immersed distribution transformer is a three-phase, fully sealed distribution transformer designed for reliable, efficient stepdown power conversion in industrial, commercial, and residential applications.

Its job is straightforward: take mediumvoltage power from the grid — typically 10kV or 11kV — and step it down to the lowvoltage levels that factories, buildings, and communities actually use, usually 380V or 400V.

But the S11 is not just any transformer. It represents a significant efficiency upgrade over earlier models like the S9. Its noload losses are reduced by 2045% , and noload current drops by 6080% — which translates directly into lower electricity bills and less strain on the grid.

Why does that matter?

Because transformers run 24/7, 365 days a year. A transformer that wastes less power at idle saves money every single day, year after year. For a utility, an industrial plant, or a large commercial building, the cumulative savings are substantial.

In short: the S11 pays for itself over its lifetime through lower losses alone.

How an S11 Oil-Immersed Transformer Works？

The operating principle is the same as any transformer — electromagnetic induction — but the S11 has several design improvements that boost efficiency and reliability.

Step 1 — The core

The core is made from highquality coldrolled grainoriented silicon steel, cut with 45° steplap joints on precision Germanmade GEORG shear lines. The core is stacked in a multistep crosssection, reducing both magnetostriction noise and power consumption.

Step 2 — The windings

The highvoltage winding is a cylindrical layerwound type. The lowvoltage winding can be either cylindrical or foilwound. This design distributes ampereturns evenly, improves shortcircuit withstand capability, and rationalises the magnetic path.

Step 3 — Insulation

The transformer uses Class A insulation with an oilpaper system. The space between high and low voltage coils is separated by paperboard sleeves and small oilclearance barriers. The whole assembly is vacuumdried to remove moisture before oil filling.

Step 4 — The sealed oil tank

Instead of a traditional conservator tank, the S11 uses a corrugated oil tank. The corrugations expand and contract with oil temperature changes, compensating for volume variation. This means the oil is permanently sealed away from air — preventing moisture ingress and slowing oil oxidation.

Step 5 — Cooling

Cooling is ONAN — Oil Natural Air Natural. No fans, no pumps, no extra moving parts. The transformer relies on natural convection through the corrugated tank walls to dissipate heat.

The result: a transformer that runs efficiently, stays sealed, and requires minimal maintenance year after year.

Common Types and Ratings of S11 Transformers

The S11 series covers a wide range of capacities, typically from 30kVA up to 2500kVA , with standard primary voltages of 6kV, 10kV, and 11kV, and a secondary voltage of 0.4kV.

Standard capacity range:

Connection groups:

Dyn11 — recommended for most applications, better harmonic suppression

Yyn0 — standard alternative for simpler loads

Cooling method:

ONAN — no forced cooling, no auxiliary power needed

Winding materials:

Copper — standard for better conductivity and longer life

Aluminium — available for costsensitive applications

Why S11 OilImmersed Transformers Matter？

Because a transformer that wastes less power and lasts longer is a transformer that saves money.

Here is what makes the S11 a preferred choice for distribution networks:

1. Low noload loss

The steplap core and highgrade silicon steel reduce noload loss by 2045% compared to the S9 series. For a transformer that runs 24/7, that is a real and measurable saving.

2. Low noload current

Noload current is reduced by 6080% , improving power factor and reducing upstream losses.

3. Fully sealed construction

The corrugated tank is fully sealed — no breather, no conservator. Oil does not contact air, which means insulating oil ages more slowly, preserving its dielectric strength over the transformer's life.

4. Low noise

Noise levels are reduced by 710dB compared to earlier designs. This makes the S11 suitable for installation near residential areas, hospitals, and offices where noise sensitivity is a concern.

5. Shortcircuit strength

The combination of foil windings (where used), robust clamping, and vacuumdried insulation gives the S11 good shortcircuit withstand capability. It can handle fault currents without winding deformation.

6. Long life

Because the oil is sealed from air and moisture, the transformer's insulation system degrades much more slowly. The S11 is designed for 2030 years of service with minimal maintenance.

7. Low maintenance

No oil sampling, no topup, no conservator maintenance. The fully sealed design means routine maintenance is largely limited to external cleaning and periodic inspection of bushings and terminals.

Choosing the Right S11 Transformer

Selecting an S11 transformer requires matching capacity, voltage, and environmental conditions to your application.

Step 1 — Determine your load

Add up the power consumption of all equipment that will be connected. Apply a safety margin — typically 2030% for future expansion.

S11 standard ratings: 30, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500 kVA.Step 2 — Specify primary and secondary voltages

Step 3 — Choose connection group

Dyn11 — recommended for most applications. The delta highvoltage connection provides a path for harmonic currents and improves shortcircuit capacity.

Yyn0 — simpler, but less suitable for unbalanced loads.

Step 4 — Check installation environment

Step 5 — Confirm winding material

Copper — longer life, better conductivity, recommended for critical applications.

Aluminium — lower initial cost, but requires larger crosssection for the same losses.

Step 6 — Consider protection accessories

For transformers above 800kVA, gas relays and pressure relief devices are standard. For critical applications, consider a temperature monitor with remote alarm contacts.

Final Thoughts

The S11 oilimmersed distribution transformer is not the newest or flashiest model on the market. It has been superseded in efficiency by S13, S20, and nonamorphous alloy designs.

But it remains a proven, reliable, costeffective workhorse for millions of installations worldwide. It offers a significant efficiency improvement over older S9 and S10 models, with a fully sealed construction that extends oil life and minimises maintenance.

If you are upgrading an older transformer, replacing a failed unit, or building a new distribution network where budget and reliability are both important, the S11 is still a solid, sensible choice.It does not have the lowest losses of any transformer ever made. But it has the lowest losses of any transformer that fits a realistic budget for many projects.
